2016 OWNERS MANUAL / 0173
Diagnostics – Displays Engine, PDM, and
3 Event Diagnostics including a list of fault
codes and descriptions; on some screens,
corrective action will be shown.
3-Event Charts – Displays reference tables
of the Slalom Timing Tolerances and Jump
Timing Tolerances.

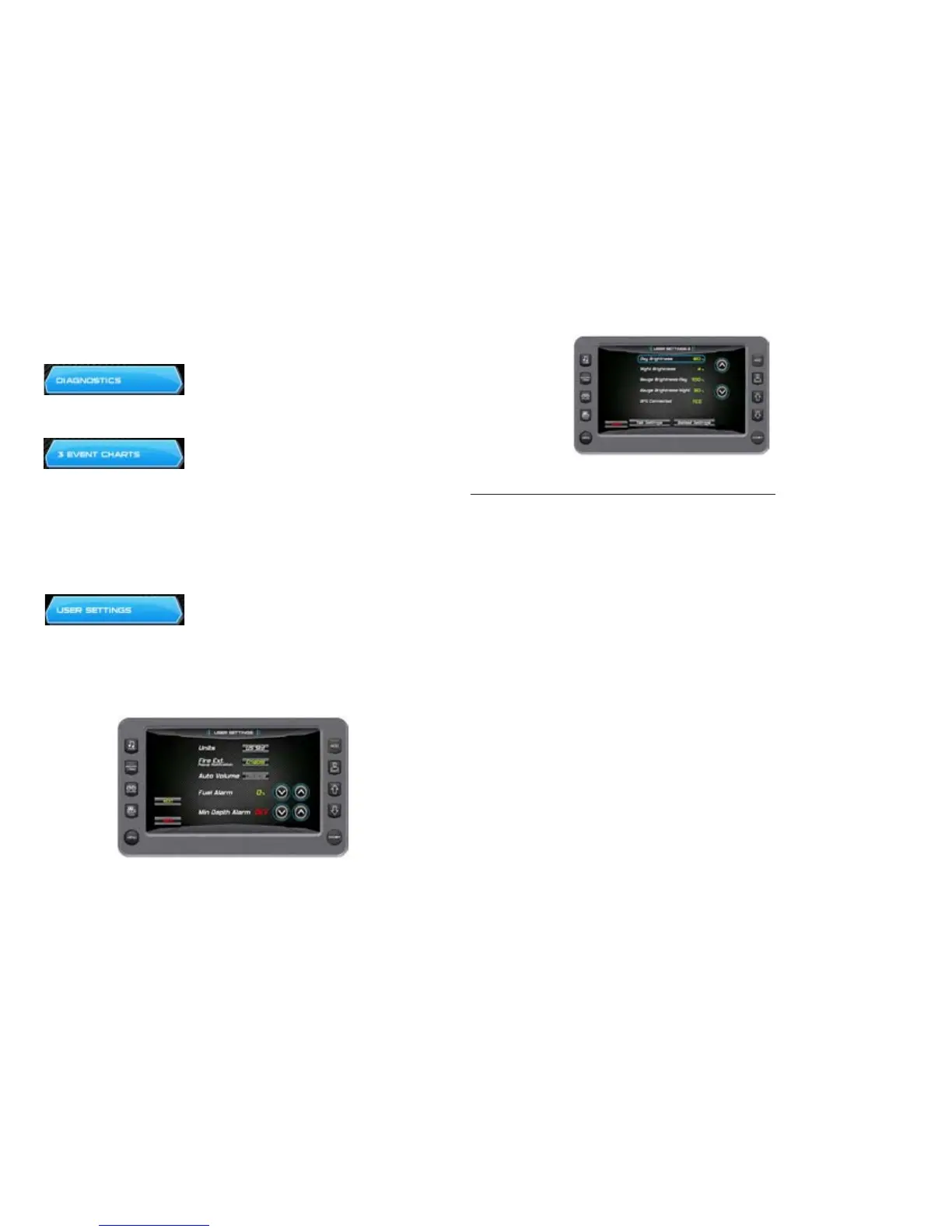

USER SETTINGS
On the Settings Menu, touch the User
Settings touch command to access the
first of two user settings screens. Touch
the field following the option to change the
setting. When arrows are available, touch the option to highlight it
and touch the arrows to change the setting. Touch [Next] to access
the second screen and [Back] to return.
Description of Options
Touch Commands Description
Units US Standard (US Std) or Metric
Fire Extinguisher Enable (Pop-up) or Disable
(Pop-up)
Auto Volume Enable or Disable
Fuel Alarm Sets the percent of fuel left in tank to deploy the
alarm
Min Depth Alarm ON or OFF
Day Brightness Sets the screen brightness for daylight
Night Brightness Sets the screen brightness for nighttime
Gauge Brightness Sets the gauge brightness for daylight
Day
Gauge Brightness Sets the gauge brightness for nighttime
Night
Tab Settings Page Controls the tab positions for two trim tabs on
the boat.
See Tab Settings.
Ballast Settings Controls the ballast fill and drain times. See Ballast
Page Setting.
Connects to GPS YES = There is no Paddle Wheel Offset field.
NO = A Paddle Wheel Offset field is provided.
Paddle Wheel Offset Sets the paddle wheel offset. (Only available if
GPS is not connected.)
