2016 OWNERS MANUAL / 0155

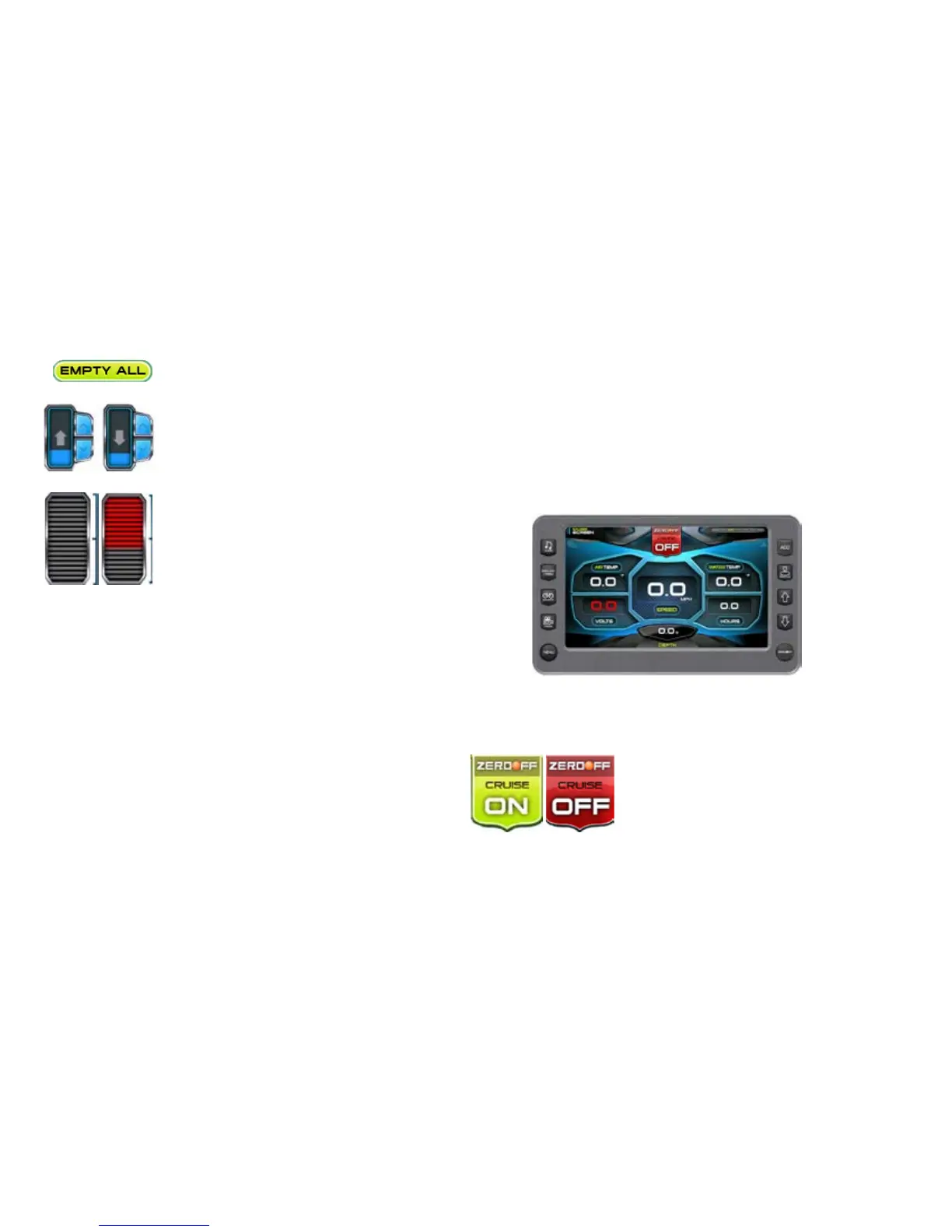

Touch to empty all ballasts.

Touch and slide your ﬁnger to the desired Bal-

last Tank level, or touch the UP DOWN Arrows

to obtain the level.

Touch and slide your ﬁnger to the desired Trim

Tab position.

Gauge Screen Gage Display

• Speedometer (MPH)

• Water Depth (FT)

• Air Temperature (F°)

• Water Temperature (F°)

• Battery Voltage (Volts)

• Engine Run Time (Hours)

Touch Commands

Description

Touch to turn cruise control ON or OFF.
