MasterForce 240-5236 - Exploded View & Parts List

Page 19

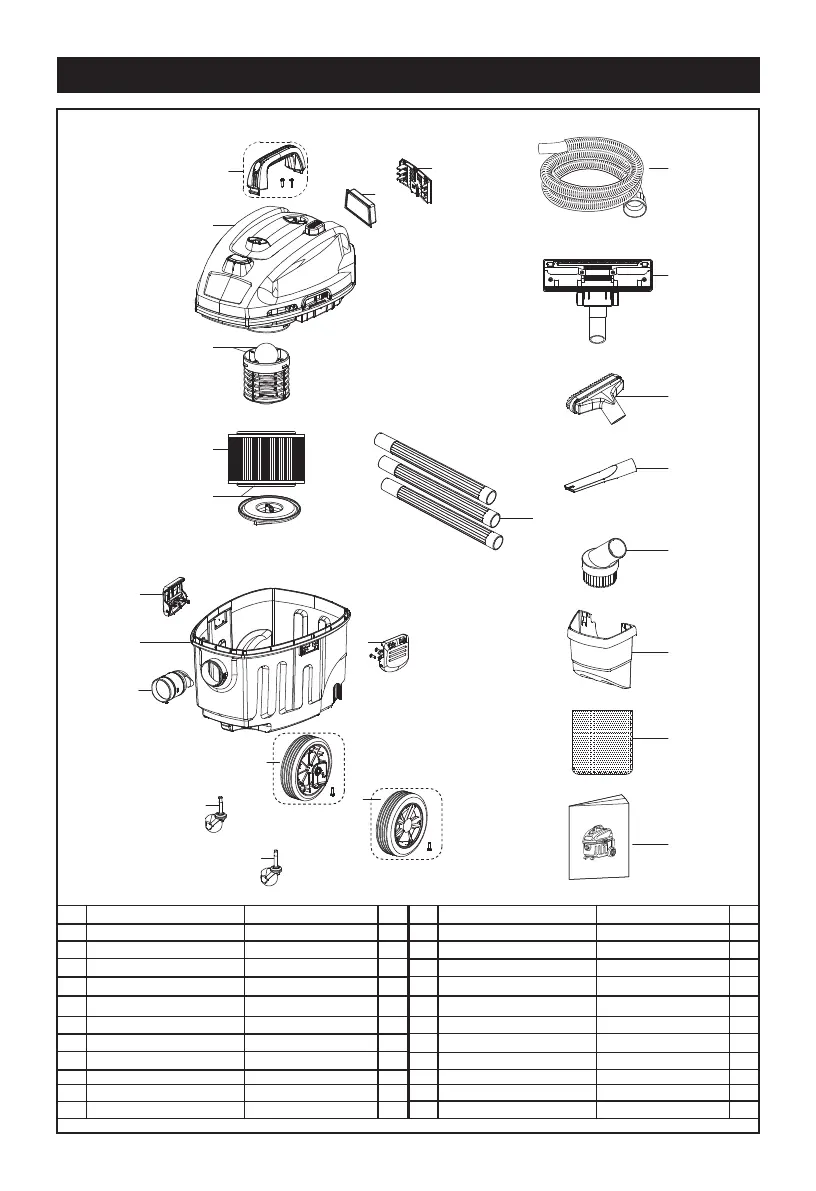

EXPLODED VIEW & PARTS LIST
1
2
2.1
2.2
3
4
4.1
5
5
6
7
8
9
9
19
10
11
12
13
14
15
16
17
18
Key Description Part # Qty
1 Handle Assembly 551009117 4
2 Power Head Assembly 1
2.1 HEPA Exhaust Filter 551009114 1
2.2 Exhaust Filter Door 551009113 1
3 Float & Filter Cage Assembly 551009103 2
4 Filter Retainer 551009132 1
4.1 Cartridge Filter 240-5247 1
5 Latch Assembly 551001111 1
6 Collection Tank 2
7 Vacuum Port Assembly 551013106 1
8 Wheel Assembly A 551295106 1
Key Description Part # Qty
9 Plastic Caster 551009108 1
10 Wheel Assembly B 551295107 1
11 Hose 551009110 1
12 Multi-Surface Floor Nozzle 551098109 1
13 2-in-1 Utility Nozzle 551004113 1
14 Crevice Tool 551004114 1
15 Round Dust Brush 551004116 1
16 Tool Caddy 551001112 1
17 Foam Wet Filter 551009111 1
18 Extension Wand 551003109 3
19 Operator's Manual 1
