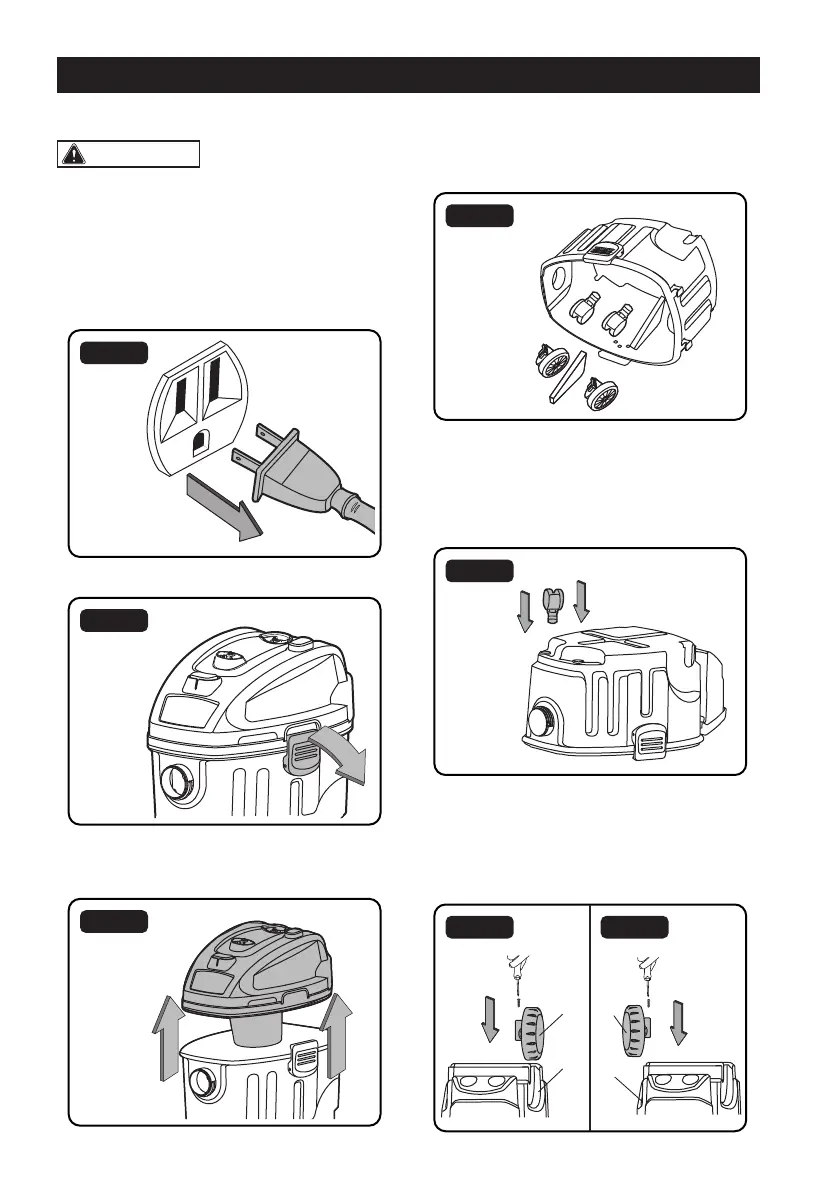

Page 7
GENERAL ASSEMBLY INSTRUCTIONS
A Philips head screwdriver driver is required.
WARNING:
DO NOT PLUG POWER
CORD INTO POWER OUTLET, MAKE
SURE PLUG IS DISCONNECTED BEFORE
ASSEMBLING THE WET/DRY VAC.
UNPACKING YOUR WET/DRY VACUUM &
GENERAL ASSEMBLY
1. Verify that the power cord is disconnected
from the outlet (Fig. 1).
Fig. 1
2. Undo the latches (Fig. 2).
Fig. 2
3. Lift the power head off the collection tank
(Fig. 3).
Fig. 3
4. Remove the contents from inside the
collection tank and make sure you have all
contents as listed on page 5 (Fig. 4).
Fig. 4
5. Turn the collection tank upside down and
insert the two (2) casters into the slots on
the front side of the collection tank. Apply
downward pressure until the casters snap
into place (Fig. 5).
Fig. 5
6. Slide the rear wheels into the slots making
sure to match the wheel letter to the
corresponding letter on the wheel slot and
use screws to secure them. Do not over-
tighten the screws (Fig. 6 & 7).
Fig. 6 Fig. 7
A
A
B
B
To Next Page
