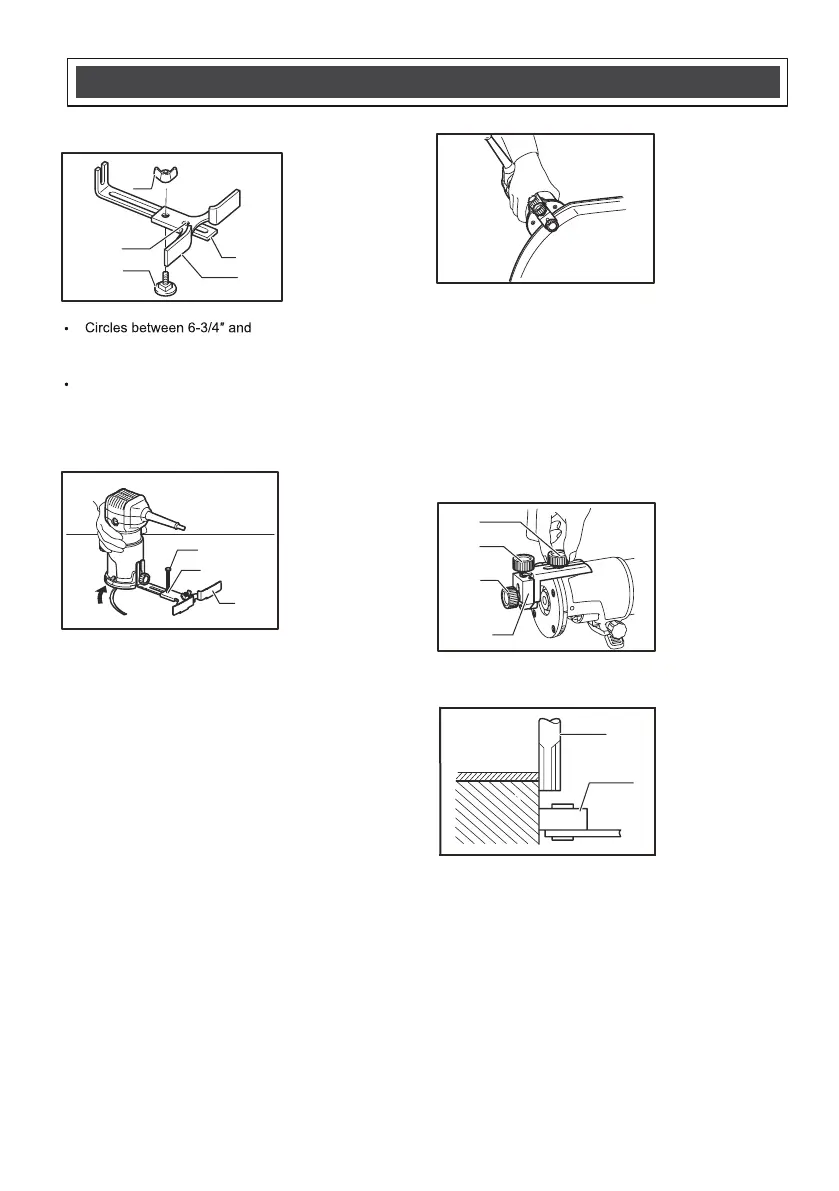

For cutting circles between 4-5/8" and
8-11/16"
in radius.
11
NOTE:
NOTE:
NOTE:
NOTE:
7-5/16" in radius cannot
be cut using this guide(because Center hole(4)
is blocked).
Align the center hole in the straight guide with the
center of the circle to be cut. Drive a nail less than
1/4" in diameter into the center hole to
secure
the straight guide. Pivot the tool around the
nail in clockwise direction.
1. Nail
2. Center hole
3. Straight guide
(4) Using the roller guide(4) Using the roller guide(4) Using the roller guide(4) Using the roller guide
Edging curved cuts in veneers for furniture and the
like can be done easily with the roller guide. The
guide roller rides the curve and assures a fine cut.
Install the roller guide on the tool base with the
clamp screw (1). Loosen the clamp screw (2) and
adjust the distance between the bit and the roller
guide by turning the adjusting screw ( 3/64" per
turn). At the desired distance, tighten the clamp screw
(3) to secure the roller guide in place.
When cutting, move the tool with the guide roller riding
the side of the workpiece.
1. Workpiece
2. Bit
3. Guide roller
ASSEMBLY
ASSEMBLY
ASSEMBLY
ASSEMBLY AND
AND
AND
AND OPERATING
OPERATING
OPERATING
OPERATING
1. Clamp screw
2. Adjusting screw
3. Clamp screw
4. Roller guide
1. Wing nut
2. Guide plate
3. Straight guide
4. Center hole
5. Bolt
1
2
3
4
5
1
2
3
4
1
2
3
1
1
2
3
