Charging
19
 Charger – internal - 12.5A 24V – 110V-240V
 Charger – external -12.5A 24V – 110V-240V

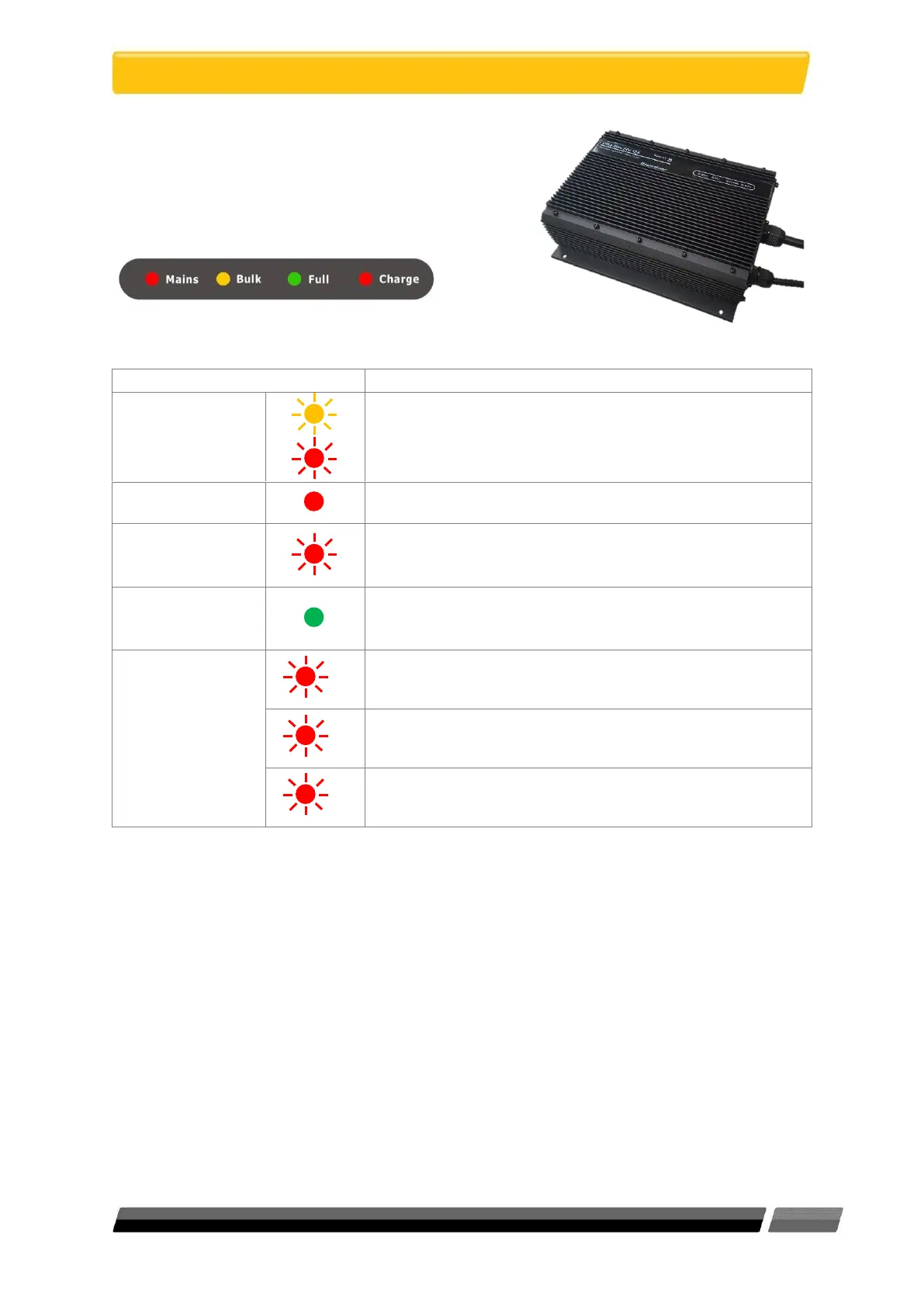

The charger has red, yellow and green indicator lights
next to the words, ‘Mains, Bulk, Full and Charge’,
which show you the charging situation as follows:
INDICATOR LIGHTS
CHARGE SITUATION
Yellow ‘Bulk’ and
Red ‘Charge’ LED
Alternate Flashing
Soft Start – battery voltage is between 15V and 21V. The
charger uses small current to charge battery in order to
extend battery lifetime
Red ‘Charge’ LED
on
Battery being charged to 80% capacity
Red ‘Charge’ LED
quick blinking
Battery being charged to maximum capacity
Green LED on
Fully charged. The charger can now be disconnected from
the battery or the battery remains at float-charge mode
Red ‘Charge’ LED
blinking
x1
Dead battery or battery has been deeply discharged
(one steady flash)
x2
Battery voltage is too high, or wrong battery is connected
(twice flashing)
x5
Charger temperature is too high to charge
(five recurrent flashes)
