Charger Indicator Lights
 Charger – internal – 3A 24V – 110V-240V
 Charger – external – 5A 24V – 85V-265V
 Charger – external – 5A 48V – 115V
 Charger – external – 5A 48V – 230V
 Charger – internal – 10A 24V – 110V-240V
 Charger – external – 10A 24V – 110V-240V
 Charger – external – 15A 24V 85V-265V
 Charger – internal – 20A 24V – 110V-240V
 Charger – external – 20A 24V – 110V-240V
 Charger – external – 30A 24V – 110V-240V

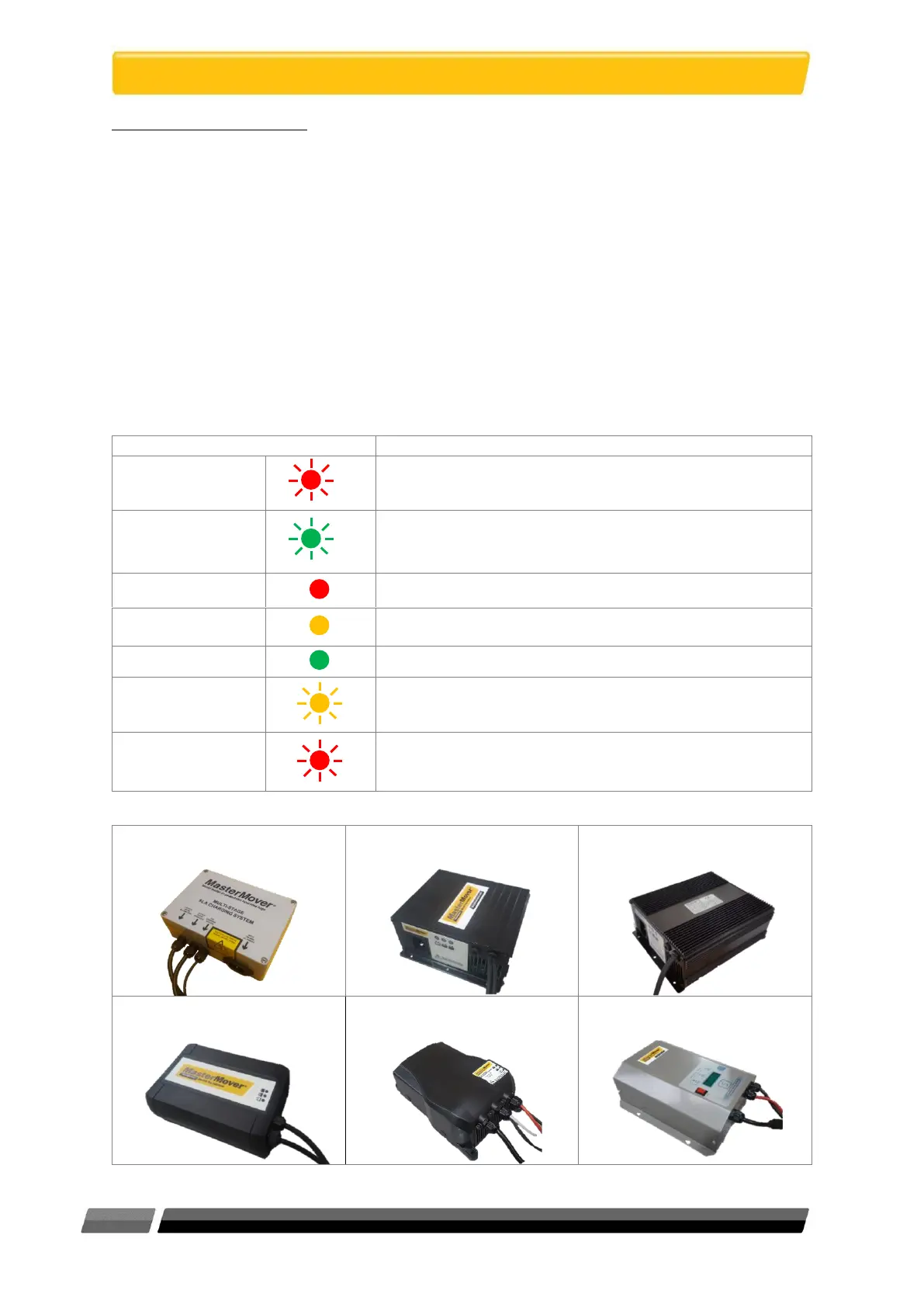

The charger has red, yellow and green indicator lights, which show you the charging situation as
follows:
INDICATOR LIGHTS
CHARGE SITUATION
Red LED Flashing
x2
Battery charger set to charge vented batteries
(twice flashing)
Green LED
Flashing
x2
Battery charger set to charge GEL and/or AGM batteries
(twice flashing)
Red LED on
Charging – charge level low
Yellow LED on
Charging – charge level high
Green LED on
Fully charged - ready to use
Yellow LED
flashing
Battery not connected/Unsuitable battery/Output short
circuit
Red LED flashing
Safety timer exceeded / Internal short circuit
Charger – internal – 3A 24V
– 110V-240V
Charger – external – 5A 24V
– 85V-265V
Charger – external – 10A 24V
– 110V-240V
Charger – external – 15A 24V
– 85V-265V
Charger – internal – 20A 24V
– 110V-240V
Charger – external – 30A 24V
– 110V-240V
