If communication between the inverter and battery is successful, the battery icon on LCD display will
“flash”. Generally speaking, it will take longer than 1 minute to establish communication.
Active Function
This function is to activate lithium battery automatically while commissioning. After battery wiring and
commissioning is successfully, if battery is not detected, the inverter will automatically activate battery if the
inverter is powered on.

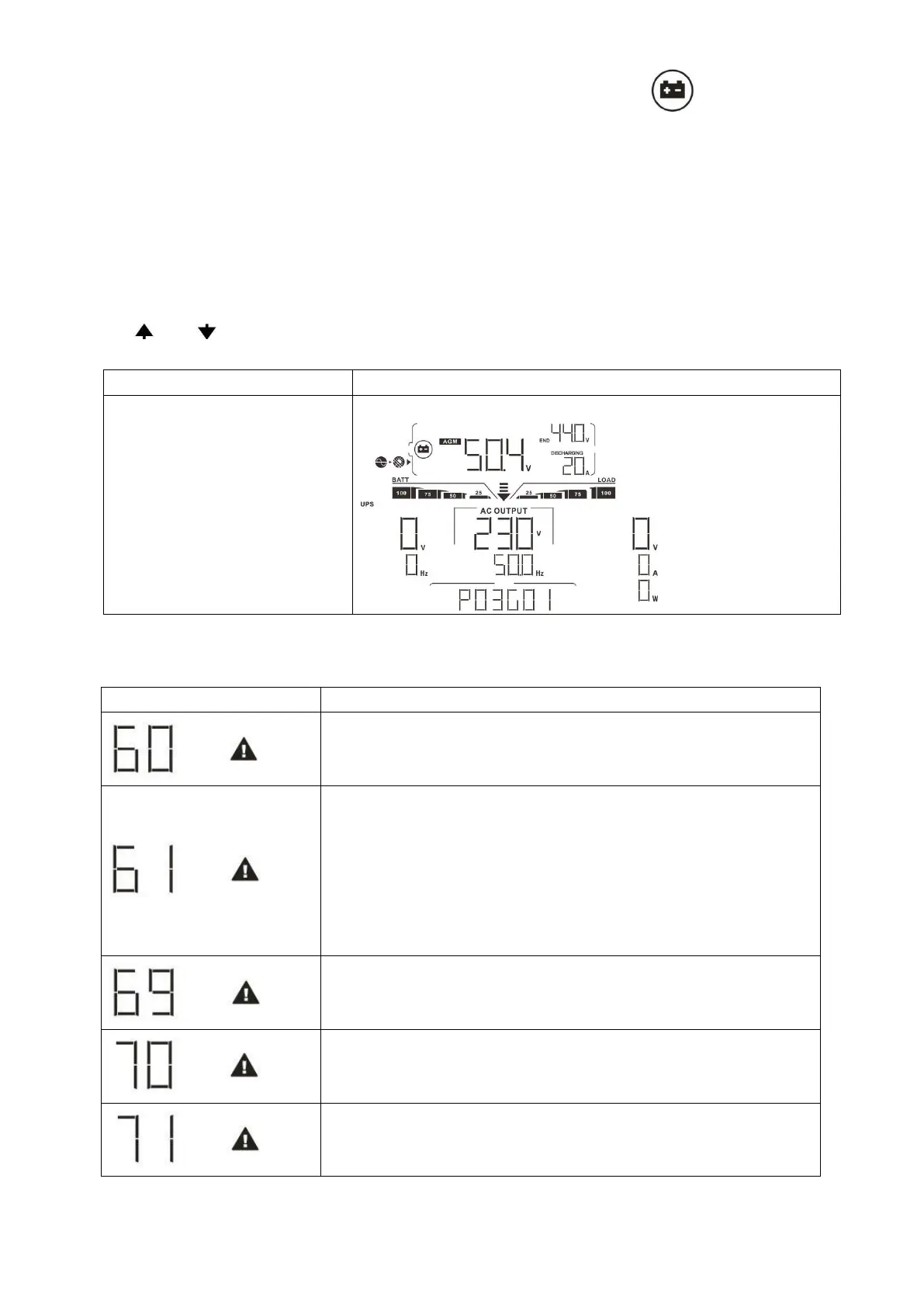

4. LCD Display Information
Press “ ” or “ ” button to switch LCD display information. It will show battery pack and battery group
number before “Main CPU version checking” as shown below.
Battery pack numbers & Battery
group numbers
Battery pack numbers = 3, battery group numbers = 1
5. Code Reference
Related information code will be displayed on LCD screen. Please check inverter LCD screen for the operation.
If battery status is not allowed to charge and discharge after the
communication between the inverter and battery is successful, it will
show code 60 to stop charging and discharging battery.
Communication lost (only available when the battery type is not setting
as “AGM”, “Flooded” or “User-Defined”.)
After battery is connected, communication signal is not detected
for 3 minutes, buzzer will beep. After 10 minutes, inverter will stop
charging and discharging to lithium battery.
Communication lost occurs after the inverter and battery is
connected successfully, buzzer beeps immediately.
If battery status is not allowed to charge after the communication
between the inverter and battery is successful, it will show code 69 to
stop charging battery.
If battery status must to be charged after the communication between
the inverter and battery is successful, it will show code 70 to charge
battery.
If battery status is not allowed to discharge after the communication
between the inverter and battery is successful, it will show code 71 to
stop discharging battery.
