Important Safety information
Your MasterTop® Replacement Hardware is intended to be used with other MasterTop Products to
increase the fair weather enjoyment of your o-road capable vehicle. Before installation, please take a
moment to review the following safety information and installation instructions. Important safety informa-
tion is generally preceded by one of three signal words indicating the relative risk of injury. The signal
words mean:
a hazardous situation which, if not avoided, could result in death or serious injury. You
CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
WARNING
CAUTION
NOTICE
a hazardous situation which, if not avoided, could result in minor or moderate injury.
You CAN be moderately HURT and also may suer property damage if you don’t follow
instructions.
Careful attention is required to this instruction or operation but does generally not relate
to personal injury. Damage to your MasterTop® product or other property may result if you
don’t follow instructions.
Before you begin Installation:
We are excited that you have chosen the MasterTop® Replacement Soft Top Hardware Kit. This high-quality hard-
ware is designed to provide a structure for your replacement soft top on your Jeep®. Please note that it is important
that you become familiar with the installation process of this top reading the following instruction sheet and warnings
thoroughly.
2
When unpacking, carefully check to make sure all parts are included. If any part is missing or broken,
please call MasterTop customer service at 720-575-5440.
PRO-Install TIP Installing a Fabric Soft Top to this hardware System:
If you plan on installing a soft top on this hardware system we highly suggest you install the fabric to the
front header before you install the front header to the vehicle. We have installed thousands of JK tops
and have created an easy install method that is used at the factory. With the front header o the vehicle,
this method of installation becomes even easier. Please see below to install the soft top fabric to the
front header before you install the hardware system.

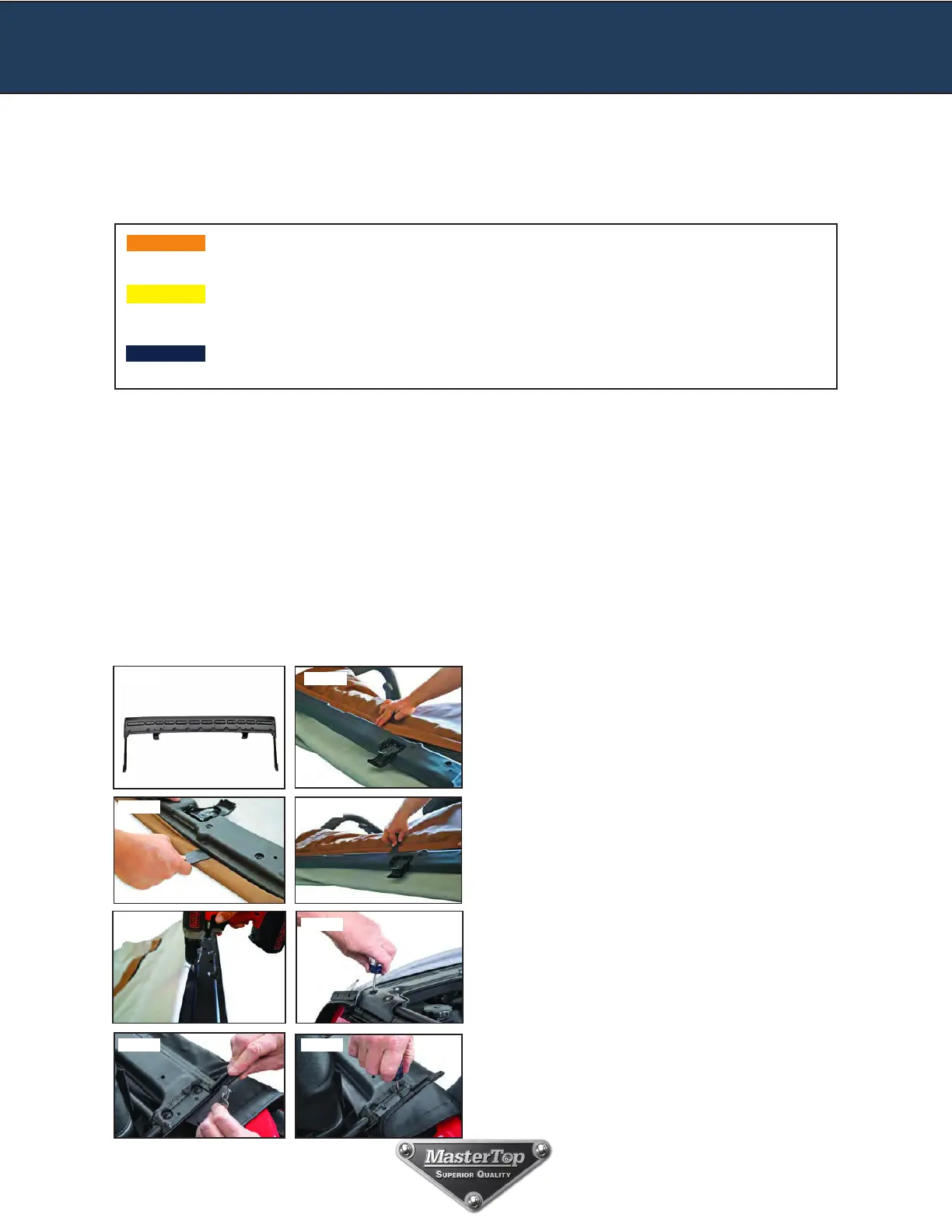

FIG 1
“Quick” Attach the Deck Fabric to the
Windshield Header
Locate the front header and place on a table (FIG
1), using a drill and Phillips head bit, loosen but
do not remove the screws located on the top plate
of the header. With the soft top underside (sub-
strate) facing up and top of the Windshield header
also facing up, center the front tube sewn onto
the deck onto the header and push the front tube
into the space created when you loosened the top
plate screws. Working from the center out to each
side, push the tube into the slot securing it into the
header.
Note: if necessary, to help you insert this tube you
may want to use an ice scraper or plastic putty
knife to push the tube into the slot (FIG’s 2, 3, & 4).
Flip the Header over so the underside is facing up
. Slip the corner pocket sewn into the top between
the header and position the cable anchors over the
two holes with the cable facing the outside of the
header (FIG 7).
Wrap the plastic tab over the cable anchors and
reinstall the screws securing the fabric/cable an-
chors to the header (FIG 8).
FIG 2
FIG 4
FIG 3
FIG 5 FIG 6
FIG 7 FIG 8
