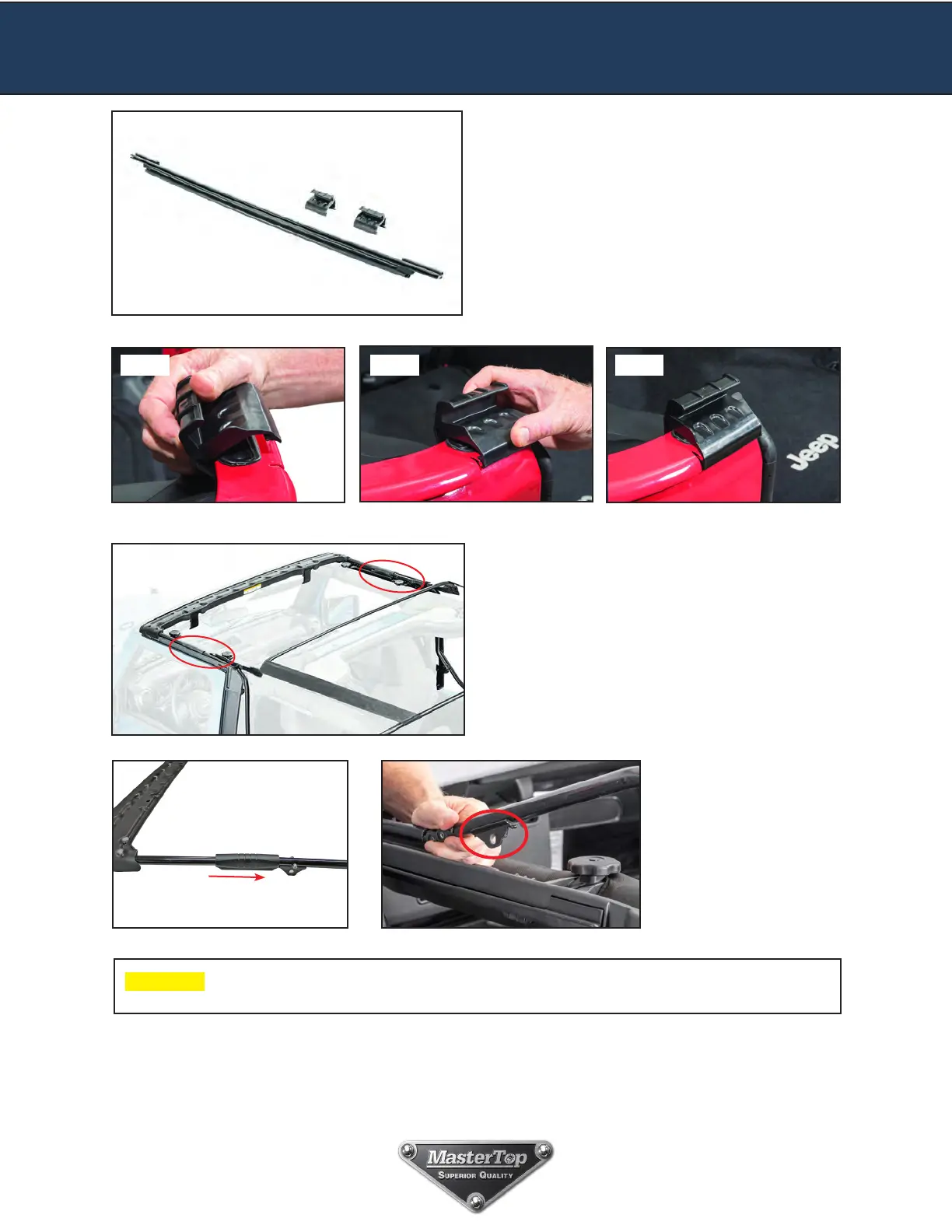

Locate the Tailgate bar and brackets (FIG 58). Locate the
driver’s side bracket (marked on the bracket) with the lip to
the outside of the vehicle, line up the bracket with the slot
in the body tub, hook the rear portion of the bracket to the
body tub and roll the bracket forward until it clicks.
Step 8: Attaching the Tailgate bar Brackets
See FIGs 59, 60, 61. Repeat this procedure on the pas-
senger side. See the Soft top or Soft accessory instruction
sheet for the proper installation of the tailgate bar into
these brackets.
Using your 2 Door JK Hardware
Your Soft top hardware system is designed with a fold back
sun roof feature. To use this feature, slide the over door
sleeves forward to unlock the front hinge. This will allow
you to fold the top back into the sun roof position.
When top is closed, slide sleeves rearward over the hinge
to lock the bow in place.
FIG 58
FIG 59 FIG 60 FIG 61
When you are not using the sun roof feature on your top the bow sleeves MUST be slid over the bow
hinges(also known as bow knuckles)
CAUTION
Slide the sleeve
over the knuckle
