Installation Instructions 3
Installation of Bimini Top Plus
Step 1: Drape Fabric and Install
Front Side Straps
Put on safety glasses. After removing your hard top or
soft top from your vehicle, Drape the Bimini Top Plus
fabric over the top of the vehicle with the front rubber
seal facing forward. The top should rest on the roll bar

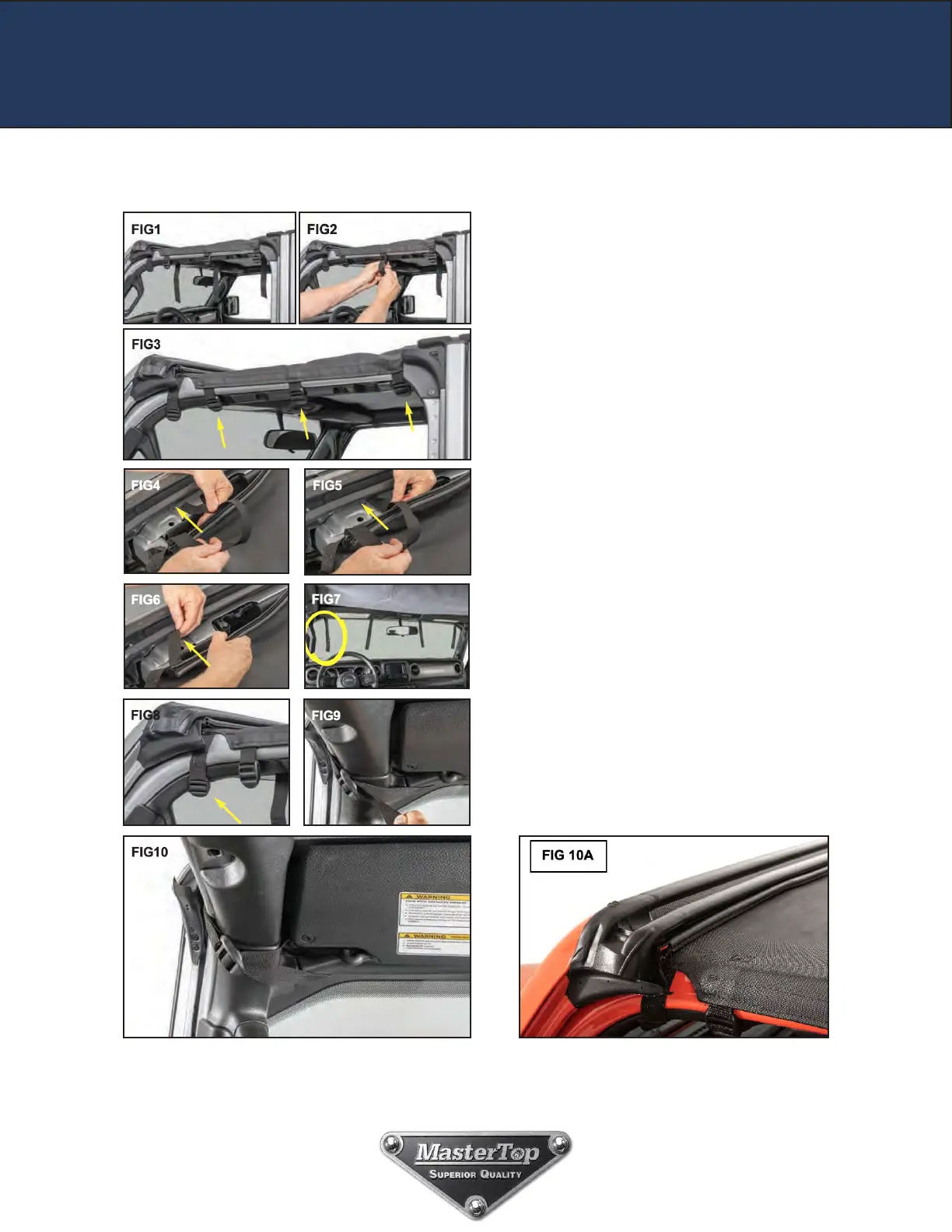

structure. With the front doors open, locate the three
straps on each side shown in FIG1.
Loosely wrap these straps on the side horizontal tu-
bes, thread the straps through the buckle and loosely
tighten. Repeat on the other side FIGS 2 & 3. This
will help hold up the front portion of the top while you
thread the front straps through the Windshield and roll
bar in step two. You will tighten these straps later in
the install.
Step 2: Thread Front Corner Straps
Standing on the threshold of your Jeep, locate the
front corner strap on the driver’s side and thread the
strap between the windshield and the front roll bar
sliding it slightly from left to right until it works its way
through the gap. See FIGS 4, 5 & 6.
Note that before you thread the strap, run your ngers
over the front of the strap so it curls downward.
This will make it easier to thread.
The strap will come through in front of your windshield
as circled in FIG 7.
Step 3: Attach Front Corner Straps
Once threaded through the windshield and roll bar,
locate the front buckle (FIG 8) and secure the front
strap to the buckle as shown in FIGS 9, 10 & 10A.
Repeat Steps 2 and 3 on the passenger side.
