2

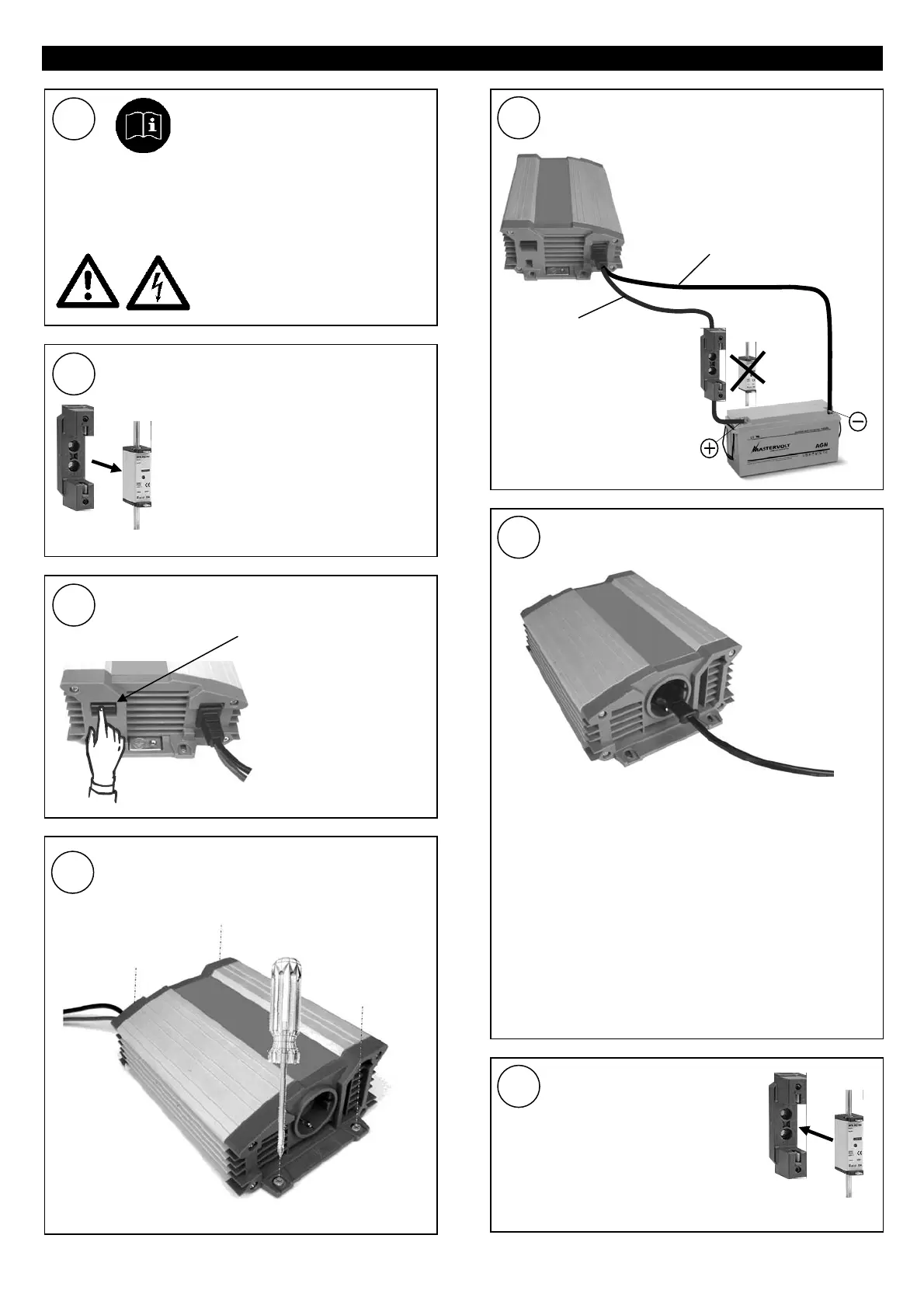

ENGLISH QUICK INSTALLATION INSTRUCTIONS
Move the main switch of the AC Master to
the OFF position
3
The AC load can be connected directly to
the AC socket.
6
For safe installation:
• Connect the grounding point of the AC Master
to the central grounding point of the vehicle/
ship.
• If you need to install a Residual Current
Device (RCD) in the wiring of the AC output,
both the earth (PE/GND) and the neutral (N) of
the AC output of the AC Master must be
connected to the grounding point
Refer to local applicable regulations on these
issues.
5
Connect the red wire to
+, black wire to –.
Incorrect polarity will
damage the AC Master!
Connect the battery to the DC input.
Integrate a fuse holder in the positive
battery wire, but do not place the fuse yet.
– black wire
+ red wire
Place the inverter fuse.
• Switch on the AC Master.
7
Mount the AC Master with four screws to a
solid surface. Allow at least 10 cm / 4 inch
space around the apparatus!
4
Disconnect the electrical power:
• Switch off all consumers,
• Switch off all charging
systems.
• Remove the battery fuse.
• Check with a suitable
voltmeter whether the DC
installation is voltage free.
2
1
This section provides a brief
overview of a basic stand alone
installation of the AC Master
However; please review the entire manual for
connection of additional features and to ensure
best performance and years of trouble-free
operation.
Use isolated tools!
Read safety instructions
(page 3)
To Next Page
