Mastervolt AC Master 12/2500

18
ENGLISH

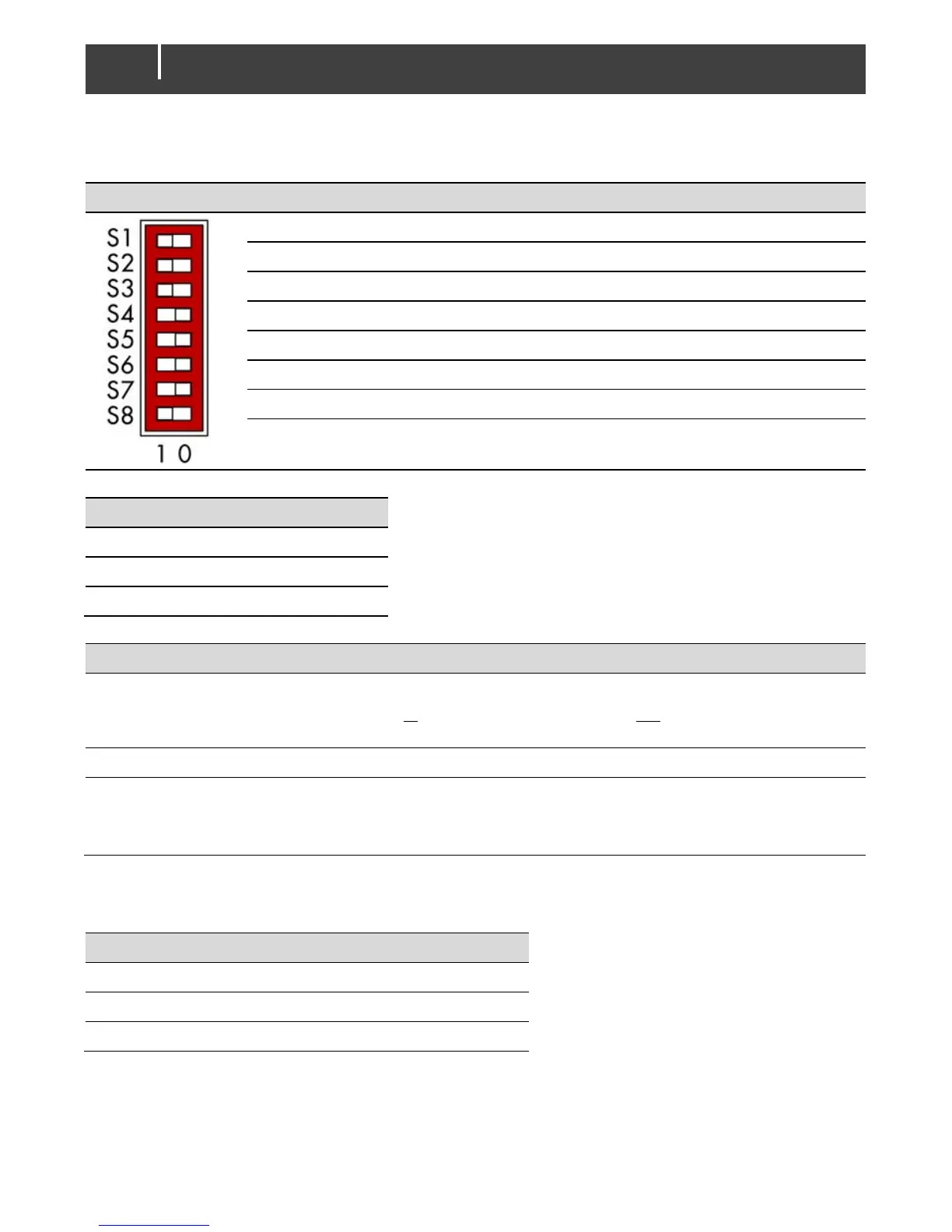

8. Configuration
Always switch OFF all DC and AC power sources to activate new dipswitch settings.
DIP switch functions
1 AC output voltage setting
2 AC input transfer system
3 AC output frequency setting
4 Power saving or Master/Slave setting
5 Power saving or Master/Slave setting
6 Power saving or Master/Slave setting
7 Power saving mode or Master/Slave mode
8 LCM remote or DIP switch control
AC output voltage setting
Output voltage DIP switch 1
230 V 0
240 V 1
AC input transfer system
Mode Inverter- to Bypass mode
when AC input is in the
range of:
Bypass- to Inverter mode
when AC input is out of
range of:
DIP switch 2
0 230V* +/-12% 230V* +12%, -25% 0
1
(Sensitive loads)
230V* +/-12%
and
47~57Hz (53~63Hz)**
230V* +12%, -25%
or
46~58Hz (52~64Hz)**
1
* AC output voltage setting
** AC output frequency setting is 60Hz
AC output frequency setting
Frequency
DIP switch 3
50 Hz 0
60 Hz 1
