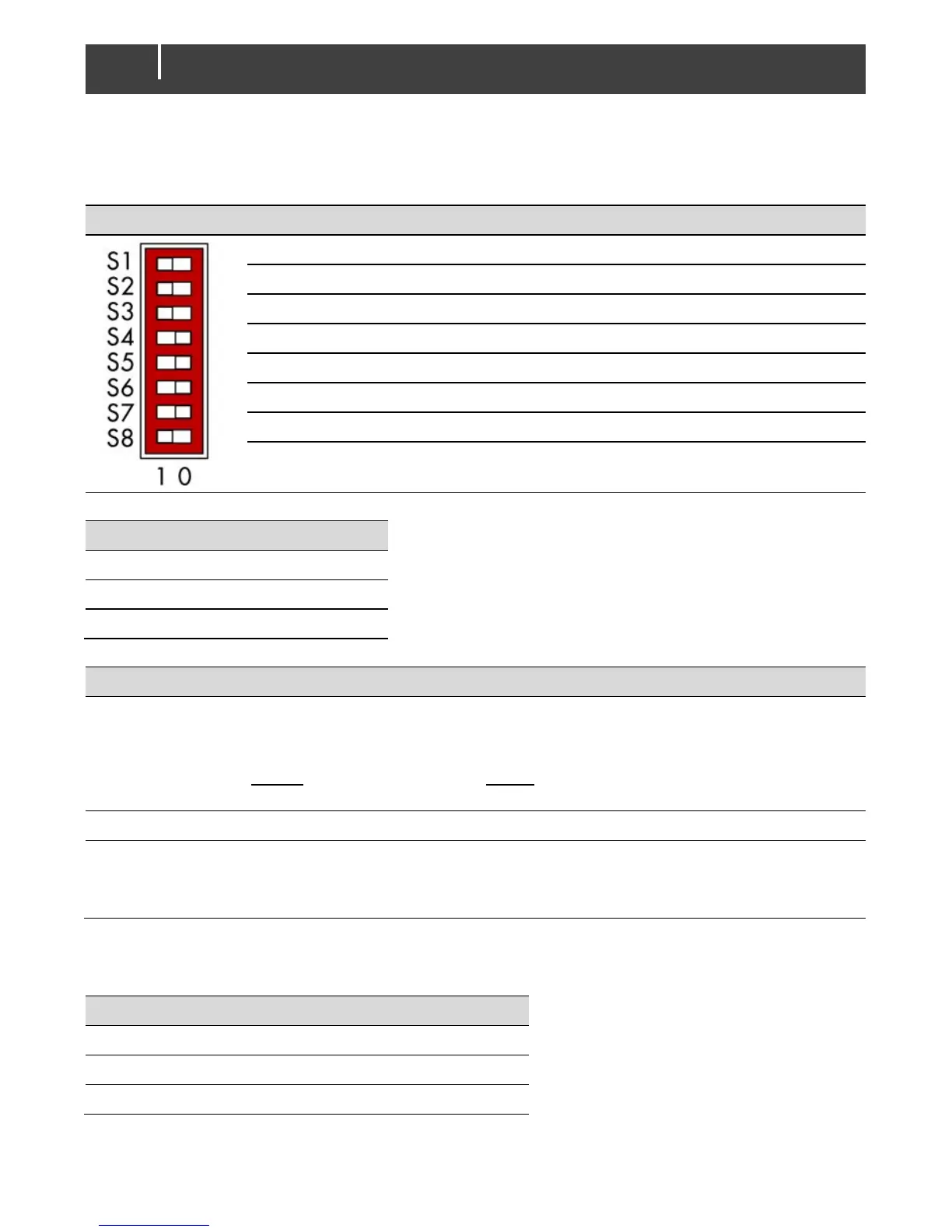

1 AC-uitgangsspanning
2 AC-ingang omschakelsysteem
3 AC-uitgangsfrequentie
4 Spaarstand of Master/Slave-instelling
5 Spaarstand of Master/Slave-instelling
6 Spaarstand of Master/Slave-instelling
7 Spaarstand of Master/Slave-instelling
8 LCM of DIP-switch bediening
AC-uitgangsspanning
Uitgangsspanning DIP-switch 1
230 V 0
240 V 1
Modus Omvormer- naar
bypass-modus
als de AC-ingang zich
binnen het volgende bereik
bevindt:
Bypass- naar
Omvormer-modus
als de AC-ingang zich
buiten het volgende bereik
bevindt:
DIP-switch 2
0 230V* +/-12% 230V* +12%, -25% 0
1
(Gevoelige
belasting)
230V* +/-12%
en
47~57Hz (53~63Hz)**
230V* +12%, -25%
of
46~58Hz (52~64Hz)**
1
* AC-uitgangsspanning
** AC-uitgangsfrequentie is 60Hz
AC-uitgangsfrequentie
Frequentie DIP-switch 3
50 Hz 0
60 Hz 1
