Mastervolt CHARGEMASTER 24/30-3

Installation manual ChargeMaster 1
5
A B

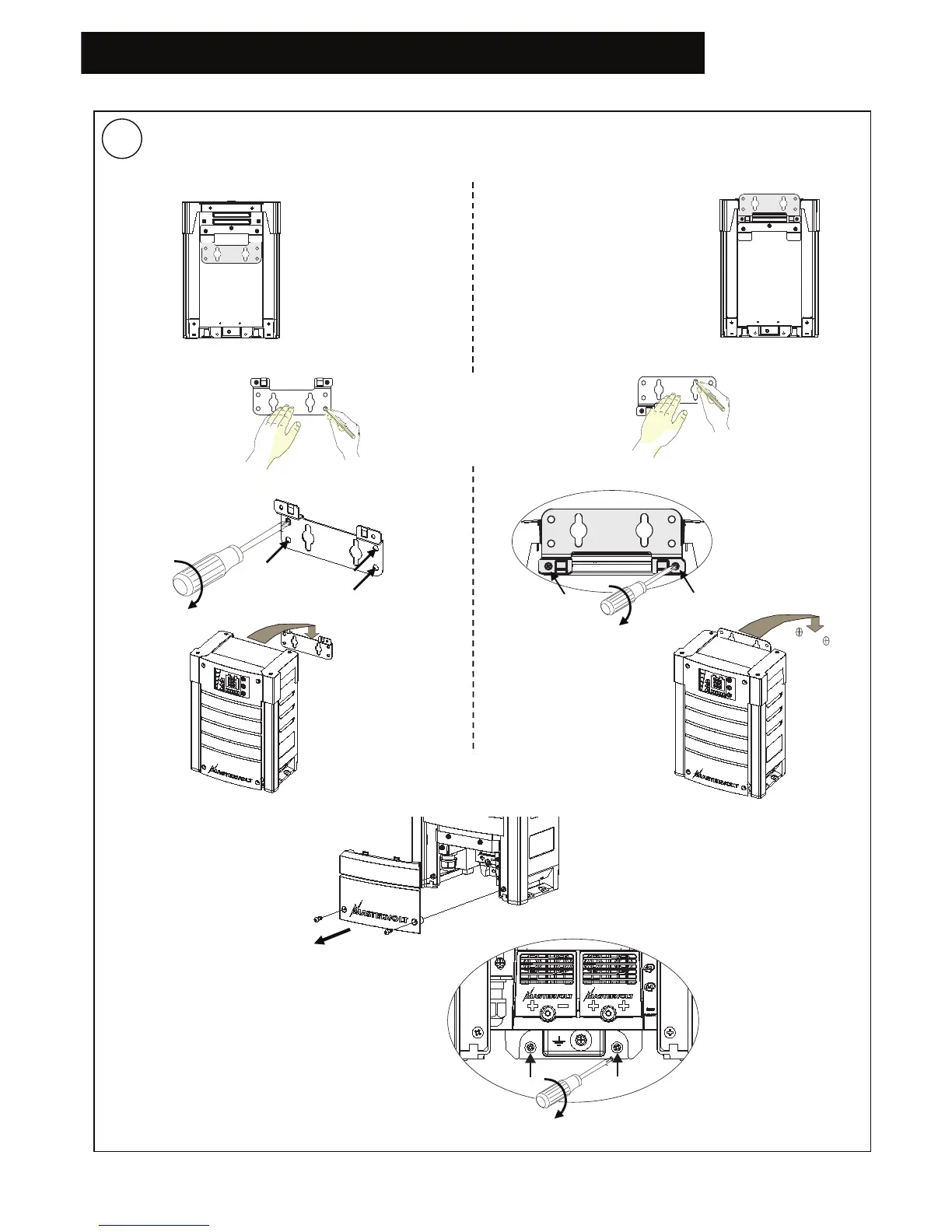

Mounting the bracket to
the wall and fixing the
ChargeMaster onto it.
Mounting the bracket to the
ChargeMaster and hanging
the ChargeMaster onto the
wall.
Fix the cabinet to the wall by
fastening two screws at the
lower side of the cabinet.
(B): take out the
two screws
before mounting
the bracket.
Use the dimensions on the
back of this manual.
Mount the ChargeMaster 1 to the
wall. Two ways are possible.
