12 IVO Smart Appendix A
TECHNICAL SPECIFICATIONS
Remote indication : status bulk, absorption, float
Remote connection : by modular plug-in jack - RJ12
Temperature connection : by modular plug-in jack - RJ12
Smart controls : QRS232 output by telephone plug - RJ42
Short circuit proctection : yes, reduced output max. 30 Amps
Reverse polarity protection : yes, by internal fuse
Over heat : yes, derating output and shut off by 80°C temperature on heatsink
Storage temperature : -25°C to 80°C
Operating ambient temperature : -20°C to 40°C, derating with 2.5% / °C > 40°C
Humidity : maximum 95%, not condensing
Vibration : according IEC 68-2-6
Cooling : mix of conventional and forced air cooling
Forced cooling : by one variable speed maintenance free DC fan
Environmental protection : IP21
Reliability/life time : • MTBF 30,000 hours, 6 years
• 1/4 life time period, Uin = 120V AC, Uout = 14,25, Iout = 30 Amps at 104°F Tamb (40°C)
• 3/4 life time period, Uin = 120V AC, Uout = 13,25, Iout = 30 Amps at 77°F Tamb (25°C)
ELECTRO MAGNETIC COMPATBILITY
Electro Magnetic Emission : better than EN 50081-1
(gen. emmission standard, scope; residiential, commercial & light industry)
Electro Magnetic Immunity : better than EN 50082-1 (gen. emmission standard, scope; residiential, commercial & light industry)
Safety : according to IEC 335-2-29, polarity protected by means of a breaker, short break
WHAT TO DO IN CASE OF A DEFECT?
Consult your local Repair Center. See www.mastervolt.com for a complete listing.
COMPLIANCES
• CE
Is in conformity with the provision of the EC EMC directive 89/336/EEC and amandments 92/31/EEC, 93/68/EEC.
The following harmonized standards have been applied: • Generic emission standard : EN 50081-1:1992
• Generic immunity standard : EN 50082-1:1997
• LLOYDS, DNV, ABS
Mastervolt has constructed this product for rugged circumstances in professional or leisure situations.
This product can be type-approved individually. Price approx. US $ 1500 per certification.
• MANUFACTURED UNDER ISO 9001.
DATA SHEETS

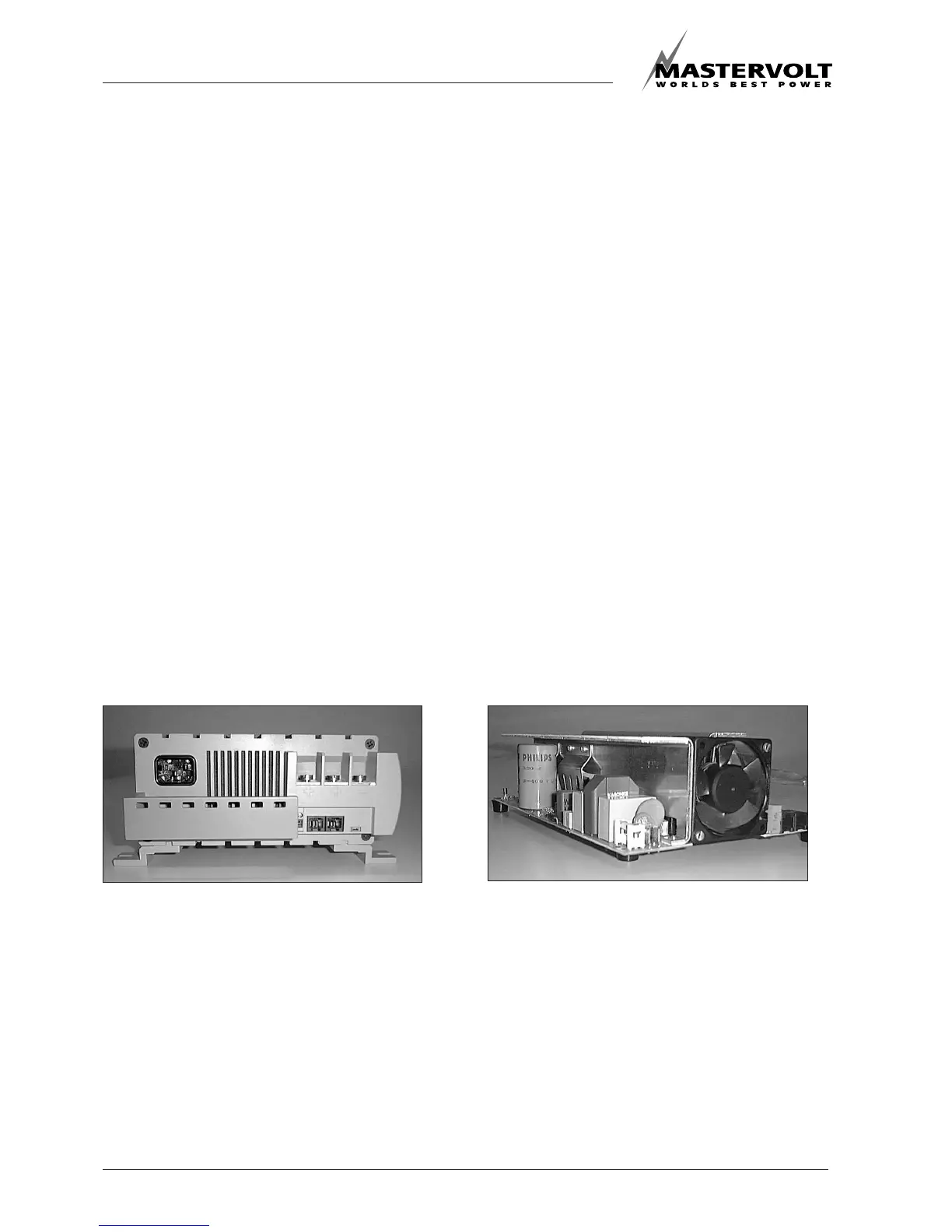

DC connections of the IVO Smart 12/30-2 at the right (1x
main output, 1x 3 Amps).
Main PCB of the IVO Smart.

Mastervolt IVO SMART 12/50-2 Specifications

General

Input Voltage	90-265 VAC
Output Voltage	12 V
Output Current	50 A
Efficiency	> 90%
Number of Battery Outlets	2
Cooling	Fan
Battery Type	Gel, AGM, Lithium
Protection	Over temperature, short circuit, reverse polarity
Operating Temperature	-20°C to +50°C
Humidity	95% non-condensing
Certifications	CE
