DIAGRAMS & DRAWINGS
26 Copyright © 2008 Mastervolt / October 2008 / WHISPER 15/20 ULTRA - Three Phase / US
3 DIAGRAMS & DRAWINGS
3.1 DC WIRING WHISPER 15 ULTRA THREE PHASE

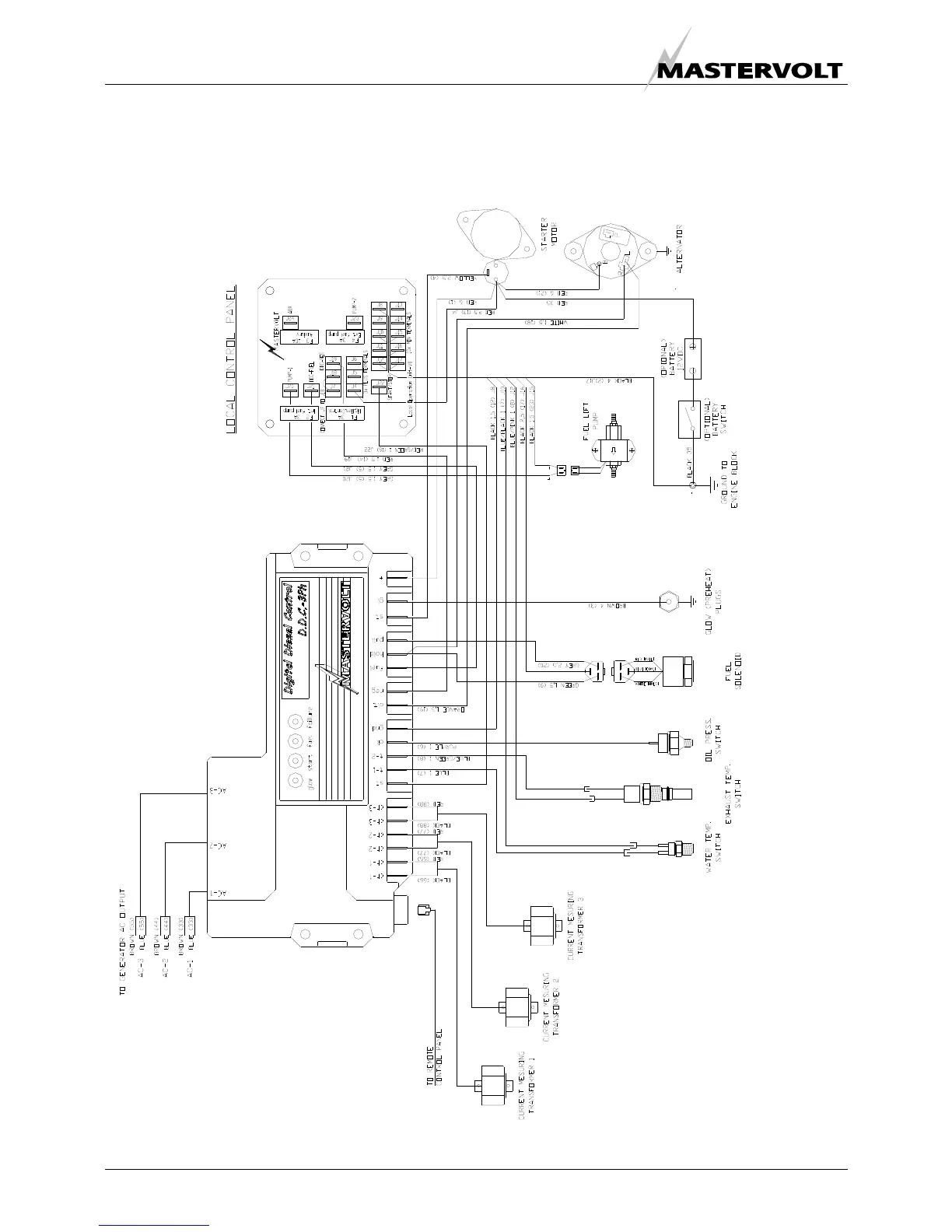

Fig. 29: DC wiring diagram Whisper 15 Ultra Three Phase
