DIAGRAMS & DRAWINGS
32 Copyright © 2008 Mastervolt / October 2008 / WHISPER 15/20 ULTRA - Three Phase / US
3.5 AC WIRING DIAGRAM SPLIT-PHASE 120 – 240VOLT / 60HZ WITH AVR (DOUBLE DELTA)

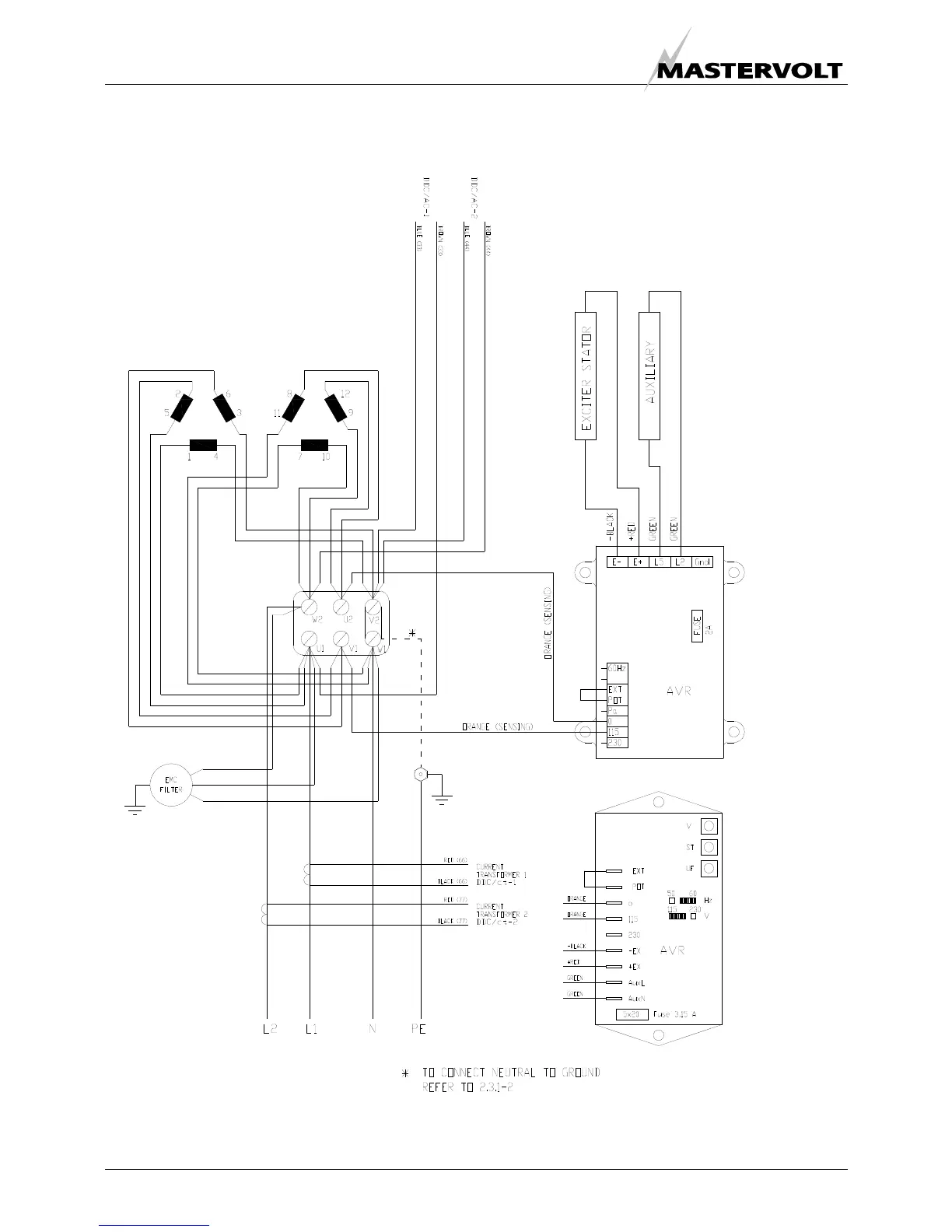

Figure 33: AC wiring diagram Split-Phase 120 – 240Volt / 60Hz with AVR (DOUBLE DELTA)
