MAINTENANCE AND TROUBLESHOOTING
- Ⅳ -

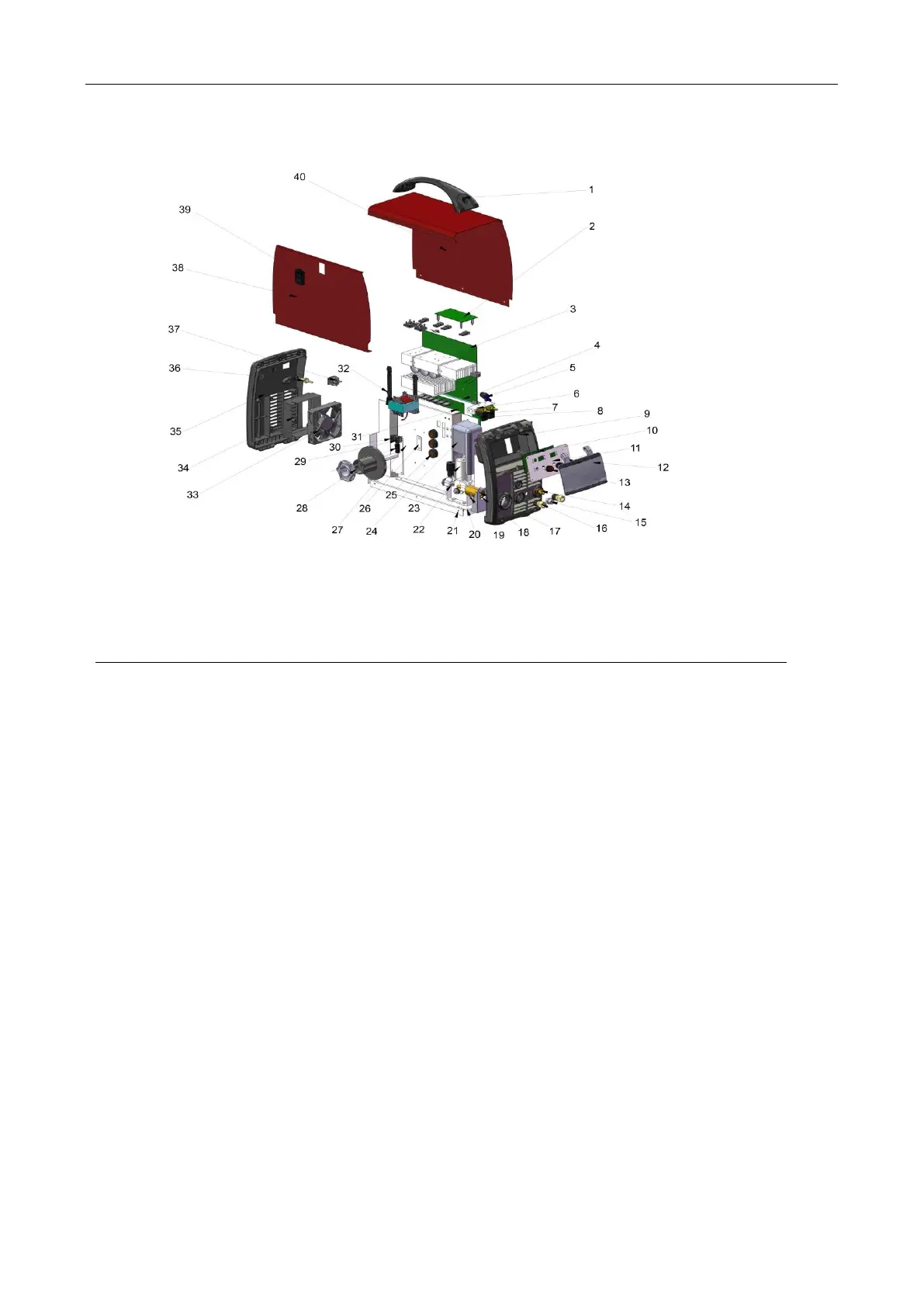

5.4 Machine parts drawing
MULTIMIG200 PFC
#
Part #
Description
#
Part #
Description
1
521.0101
Handle
21
521.0121
Hinge and bracket
2
521.0102
Control board
22
521.0122
Connecting rod
3
521.0103
Main board
23
521.0123
Wire feeder
4
521.0104
Insolation paper
24
521.0124
Protective cover
5
521.0105
"Y" Hose Fitting
25
521.0125
Transfer connector
6
521.0106
Installation plate for valve
26
521.0126
Connecting copper bar
7
521.0107
Solenoid Valves
27
521.0127
Medium panel
8
521.0108
Side plate
28
521.0128
Spool holder
9
521.0109
Front frame
29
521.0129
Gas / Feed switch
10
521.0110
Front panel
30
521.0130
Spool or Remote switch
11
521.0111
Installation plate of panel
31
521.0131
MULTIMIG200 power board
12
521.0112
Front panel cover plate
32
521.0132
160 Support rod
13
521.0113
Knob
33
521.0133
Cooling Fan
14
521.0114
Gas-out connector
34
521.0134
1225 fan cover
15
521.0115
Female torch connector
35
521.0135
Rear Frame
16
521.0116
Female torch connector
36
521.0136
Gas-in connector
17
521.0117
Central Socket locker
37
521.0137
Power switch(red)
18
521.0118
Central Socket
38
521.0138
Right side frame
19
521.0119
Gas-in connector
39
521.0139
Square box handle
20
521.0120
Bottom board
40
521.0140
Left side plate
