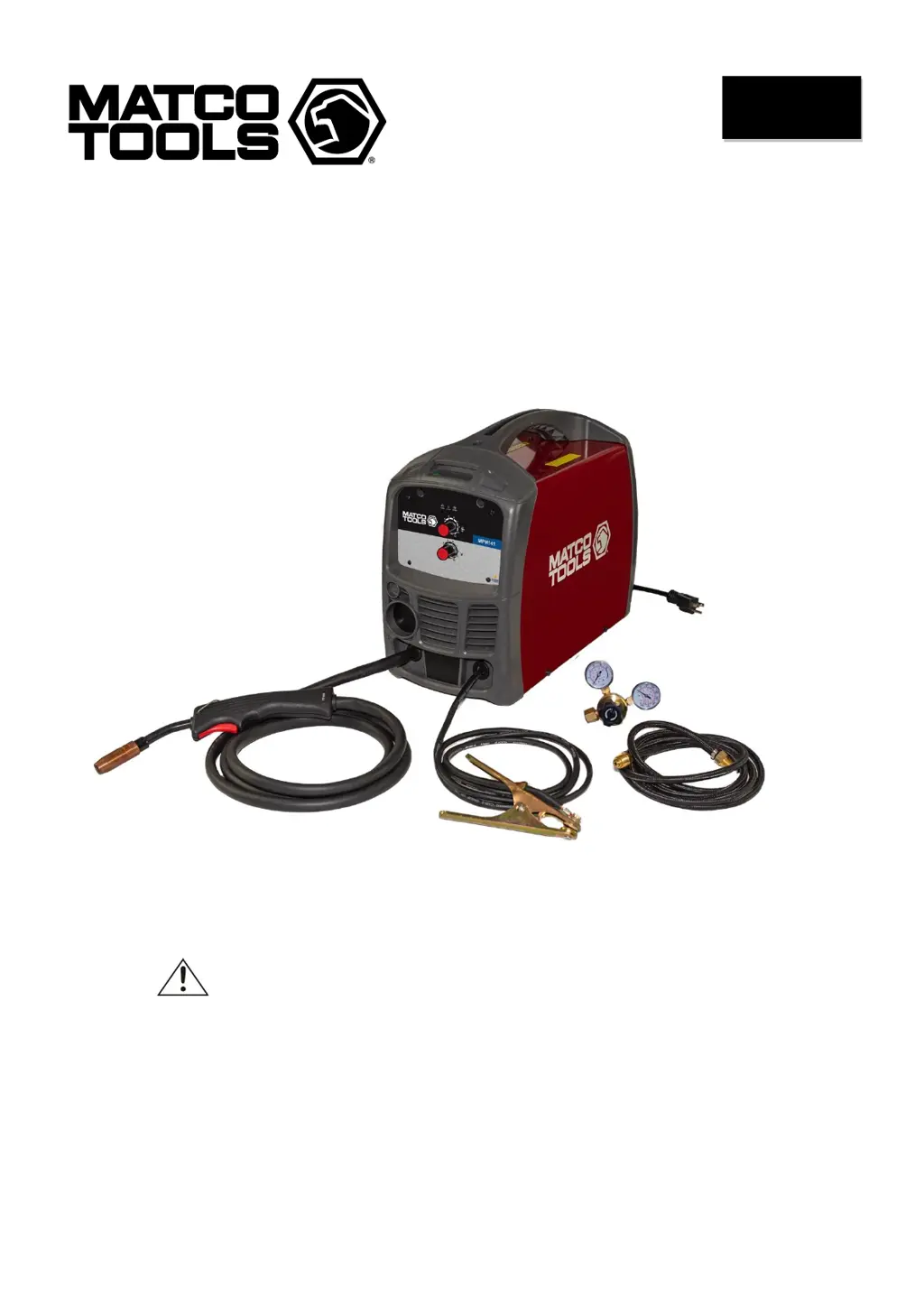

INVERTER DC
WIRE FEED WELDER
OWNER’S MANUAL
09/2019
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
1910308-12
MPM141

Table of Contents

Questions and Answers

  • M
    Michele FergusonAug 5, 2025
    What to do if the overload indicator is on for Matco Tools MPM141 Welding System?
    • C
      Carolyn JenkinsAug 5, 2025
      If the overload indicator is illuminated on your Matco Tools Welding System, it could be due to the input voltage being too high or too low, or because the welder is overheated. Use a meter to check the input power voltage, ensuring it falls within the range of 220V-240V AC (or 105V-132V when using the 120V adapter cord). If the welder is overheated, leave the power on and allow the fan to cool it down until the overload indicator light turns off.
  • J
    johnsonmichaelAug 16, 2025
    Why is the wire drive motor not turning on my Matco Tools MPM141 Welding System?
    • C
      Charles PerryAug 16, 2025
      If the wire drive motor on your Matco Tools Welding System isn't turning, several factors could be at play. First, check the fuse inside the wire compartment, ensure it is tight and replace if necessary. Also, make sure that the wire feed speed control isn't set to zero; increase it if needed. The wire will only feed when the trigger is mashed. Finally, the wire drive motor itself may be damaged, in which case it would need to be replaced.
  • G
    gary89Aug 26, 2025
    How to troubleshoot a Matco Tools MPM141 Welding System that does not power up?
    • E
      Ernest FloresAug 26, 2025
      If your Matco Tools Welding System isn't powering up, there are a few things to check. Make sure the unit is properly plugged in. Verify that the input power circuit breaker is on; if it's not, reset it. If those aren't the issue, the main power switch itself may be faulty and require replacement.

Summary

LIMITED WARRANTY

Warranty Terms and Conditions

Details warranty periods, exclusions, and claims for the welding equipment.

GENERAL SAFETY RULES

Important Safety Considerations

General safety advice and precautions for operating the welder.

Welding Environment Safety

Ensuring a safe workspace and proper ventilation.

Welder Condition Checks

Pre-operation safety checks for the welder's components.

Safe Welder Operation Practices

Guidelines for using the welder safely and preventing accidents.

HAZARDS AND WARNINGS

Electrical Shock and Fire Hazards

Risks associated with electrical shock and fire during welding.

Fumes, Gas, and Arc Ray Dangers

Hazards from welding fumes, gases, and arc rays to health and safety.

EQUIPMENT SAFETY AND PRECAUTIONS

Gas Cylinder and Maintenance Safety

Safe handling of gas cylinders and precautions during maintenance.

Health and Environmental Warnings

California Proposition 65 warnings regarding chemicals.

USE AND CARE

Operation and Maintenance Guidelines

General advice for using and caring for the welder.

Technical Specifications

Key technical data of the welder, including power, output, and dimensions.

WELDER COMPONENTS AND CONTROLS

Indicator Lights and Controls

Function of power, alarm, work lights, and control interfaces.

Core Welding Components

Identification of wire feed, voltage, torch, gas system, and power cord.

INSTALLATION - POWER AND WIRE FEEDER

Power Requirements and Electrical Safety

Installation, voltage requirements, and shock prevention.

Extension Cord Guidelines

Recommendations for using extension cords with the welder.

Wire Roller Installation

Steps for installing and setting up the wire roller.

Wire Installation Process

Process of installing and feeding welding wire into the torch.

Wire Spool and Drive Tension

Adjusting spool and drive roller tension for proper wire feeding.

GAS SYSTEM INSTALLATION

Gas System Setup

Safety and connection of the shielding gas system.

Gas Flow and Selection

Adjusting gas flow rate and choosing appropriate shielding gases.

OPERATION

Basic Controls and Settings

Using power, voltage, wire speed controls, and torch handling.

Welding Fundamentals

Torch movement, travel speed, and types of welding beads.

Welding Positions

Techniques for flat, vertical, and overhead welding positions.

Advanced Welding Methods

Techniques for multiple pass and spot welding.

Spot Welding Procedures

Detailed steps for performing spot welds.

MAINTENANCE AND TROUBLESHOOTING

Routine Maintenance

Routine cleaning and checks for welder upkeep.

Troubleshooting Common Issues

Solutions for power, wire feed, and arc problems.

DIAGRAM AND PARTS LIST

Parts Identification

Visual diagram and textual list of welder components.
