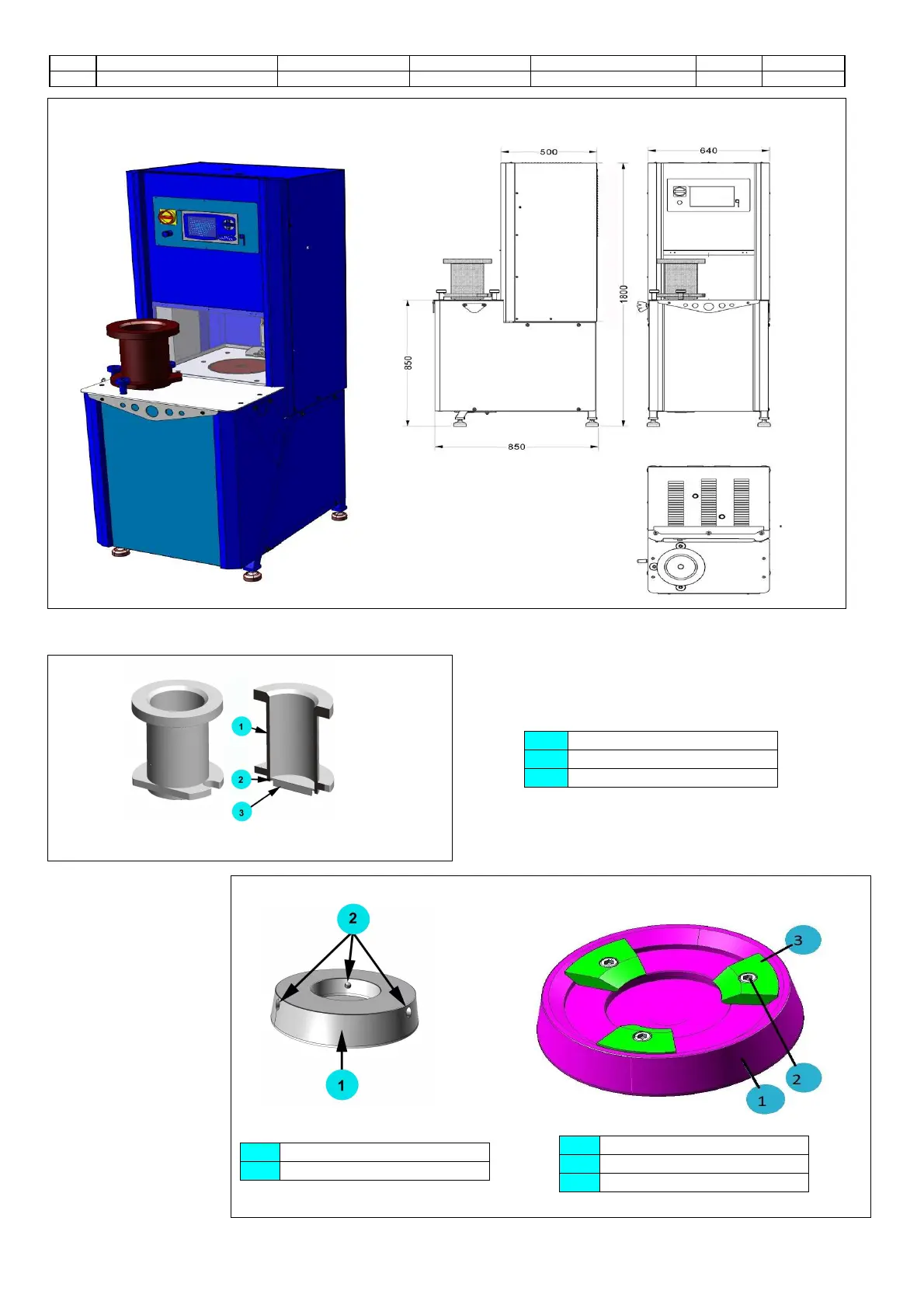

LAYOUT :
Gyratory Compactor +
Integrated worktop + Extruder
Fig. 3
MOLD (accessory required for the
execution of the test)
1
MOLD BODY
2
RING OF ARREST
3
BOTTOM
There are different types. See for commercial catalogs
and specific encodings.
Two types of pistons
are available
(accessory necessary
for the execution of
the test) which differ
in the type of fixing.
The nominal diameter
must be chosen
according to the size
of the mold. Check the
catalog and find all
the specific codes..
PISTON type 1
Fig. 4
1
PISTON
2
CLAMPING SCREWS
PISTON type 2
Fig.
1
PISTON
2
SCREW
3
TOOTH
