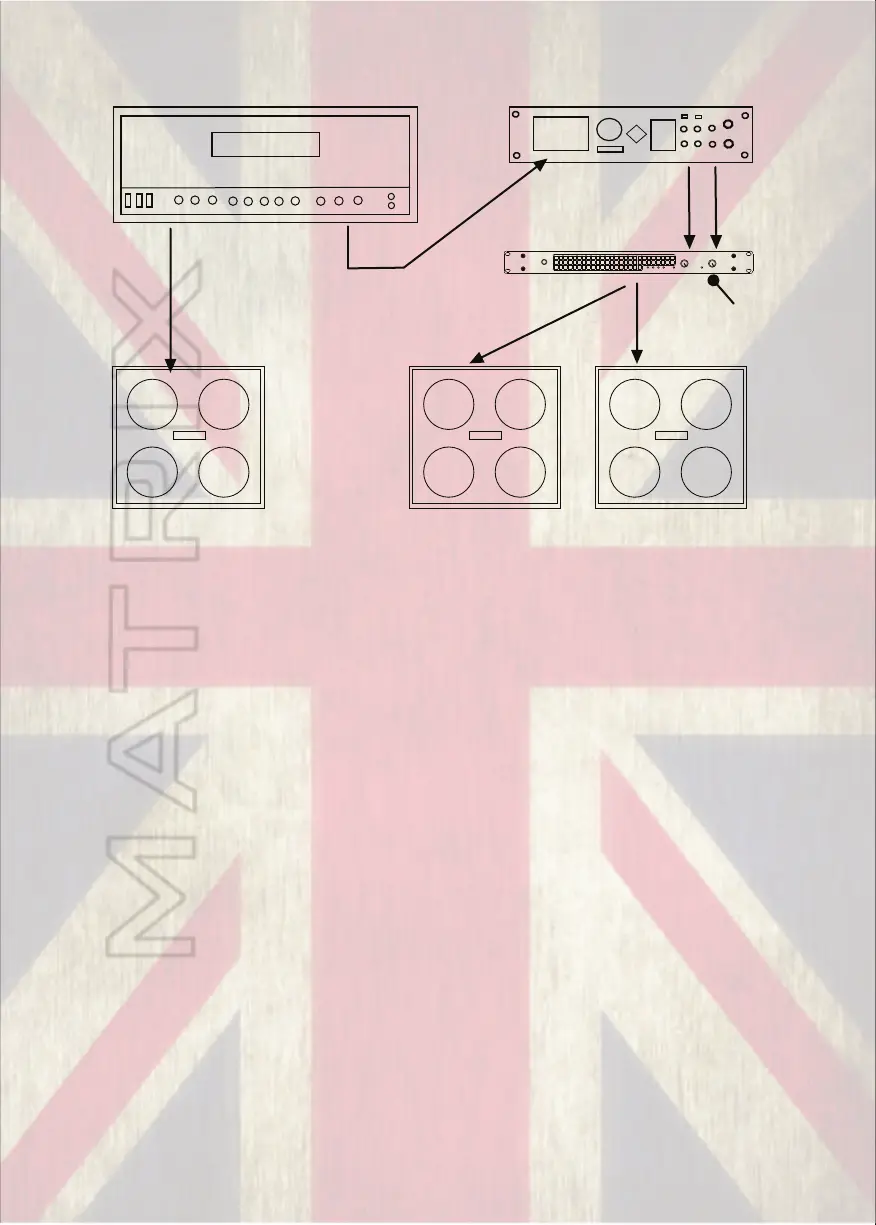

Wet/Dry/Wet Rig
SIGNALSIGNAL
AB
POWER
on
CHANNEL LEVELS
GT FX
POWER AMPLIFIER
MATRIX
ON
PROTECT
BRIDGE
MONO
Main Speaker Out from Amp to
Dry Cab (no effects)
FX Send or Line Out from Amp to
Input of Effects Unit
Stereo L&R Out
from FX to Input
A&B on Matrix
Amp
Matrix in Stereo
Mode
Outputs A&B from Matrix to Wet
Cabs (effected signal)
NOTE: The above system can also be adapted to run the Matrix as a “slave”
amp. Take care that the Matrix amp receives only a line level signal and not
a signal direct from the main amps speaker out otherwise damage will
occur. This can be from the amps line out or effects send or from a suitable
ISO/Load box with a line out facility. Care must also be taken to ensure the
main amp still has a “load” attached to it either in the form of a cabinet or
suitable load box.
