NOTE: The above system can also be run to two separate mono cabs to
achieve a wider stereo depth of field.
If using a stereo/mono switchable cab, always check your cab is in
stereo mode before connecting both outputs to it!
SIGNALSIGNAL
AB
POWER
on
CHANNEL LEVELS
GT FX
POWER AMPLIFIER
MATRIX
ON
PROTECT
BRIDGE
MONO

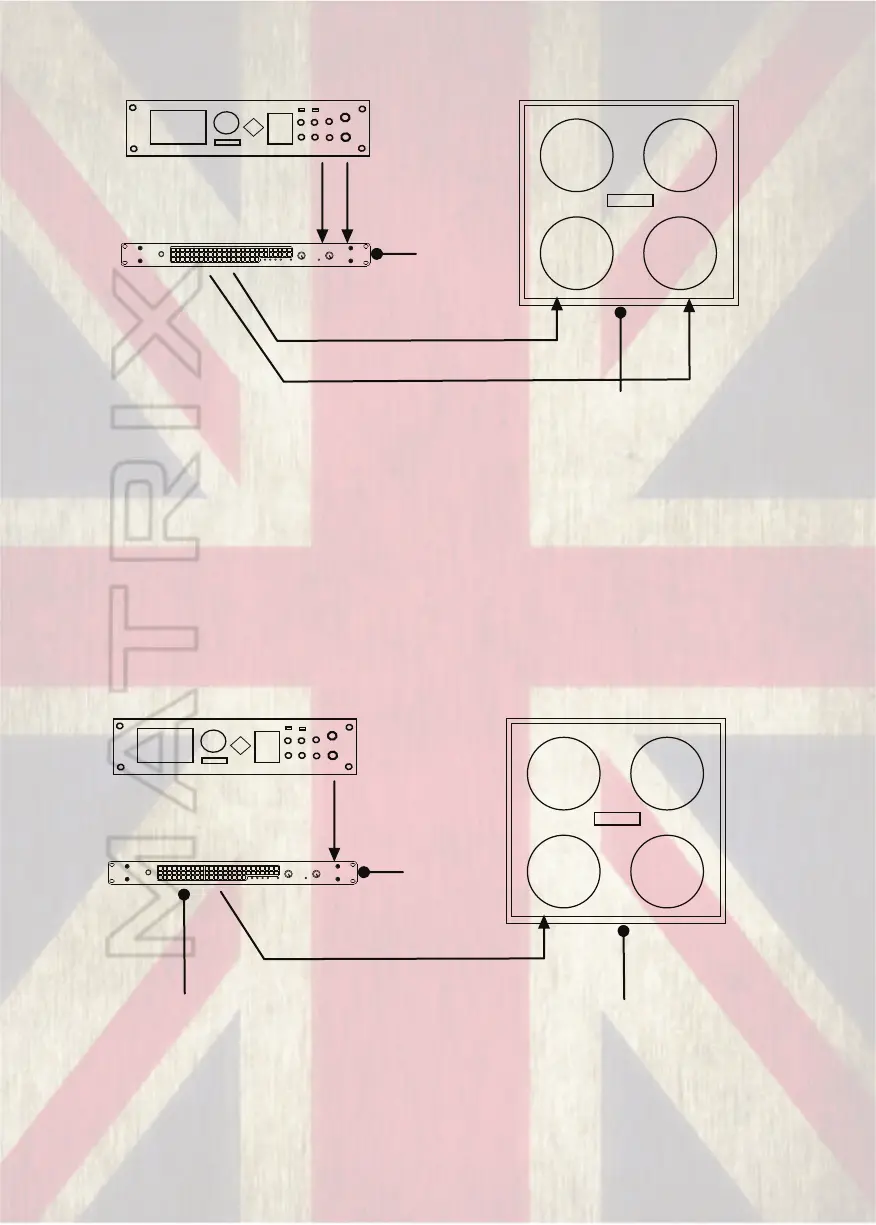

Main Mono/L Out to
Input A on Matrix Amp
Matrix mode
switch set to
Bridged
Matrix Output X to Mono Input of Cab
NB: Only use Output X
for Bridged Mode
Bridged Mode (High Powered Mono 8 Ohms Minimum)
Ensure cabinet is a minimum of 8 ohms or
over (8 or 16 for instance) or the amp will go
into protect mode. Bridged mode delivers
much more power so also ensure your cab is
capable of handling the extra wattage!
12
SIGNALSIGNAL
AB
POWER
on
CHANNEL LEVELS
GT FX
POWER AMPLIFIER
MATRIX
ON
PROTECT
BRIDGE
MONO
Main Stereo L&R Out
to Input A&B on Matrix
Amp
Matrix mode
switch set to
Stereo
Matrix Output A to Stereo Input of Cab
Modelling System/Pre-amp/Multi FX in Stereo To Stereo Single Cab
Matrix Output B to Stereo Input of CabNB: Ensure cab is
stereo capable and is
switched to stereo
mode
To Next Page
