A5X / E5X CONSOLE DESCRIPTION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) WORKOUT KEYS: Simple program view and selection buttons.
B) GO: One Touch Start.
C) ENTER: To confirm each program setting.
D) UP/DOWN INCLINE (A5X): Easy information and incline selection.
E) UP/DOWN LEVEL: Easy information and level selection.
F) UP/DOWN TIME: Easy information and time adjustment.
G) STOP: Ends workout and shows workout summary data.
H) NUMBER KEYPAD: Workout data input for workout setup. Level adjustment during workout.
I) COOL DOWN: Puts the Ascent into Cool Down mode.
J) FAN: Allows for fan speed selection (fan has three operating speeds.)

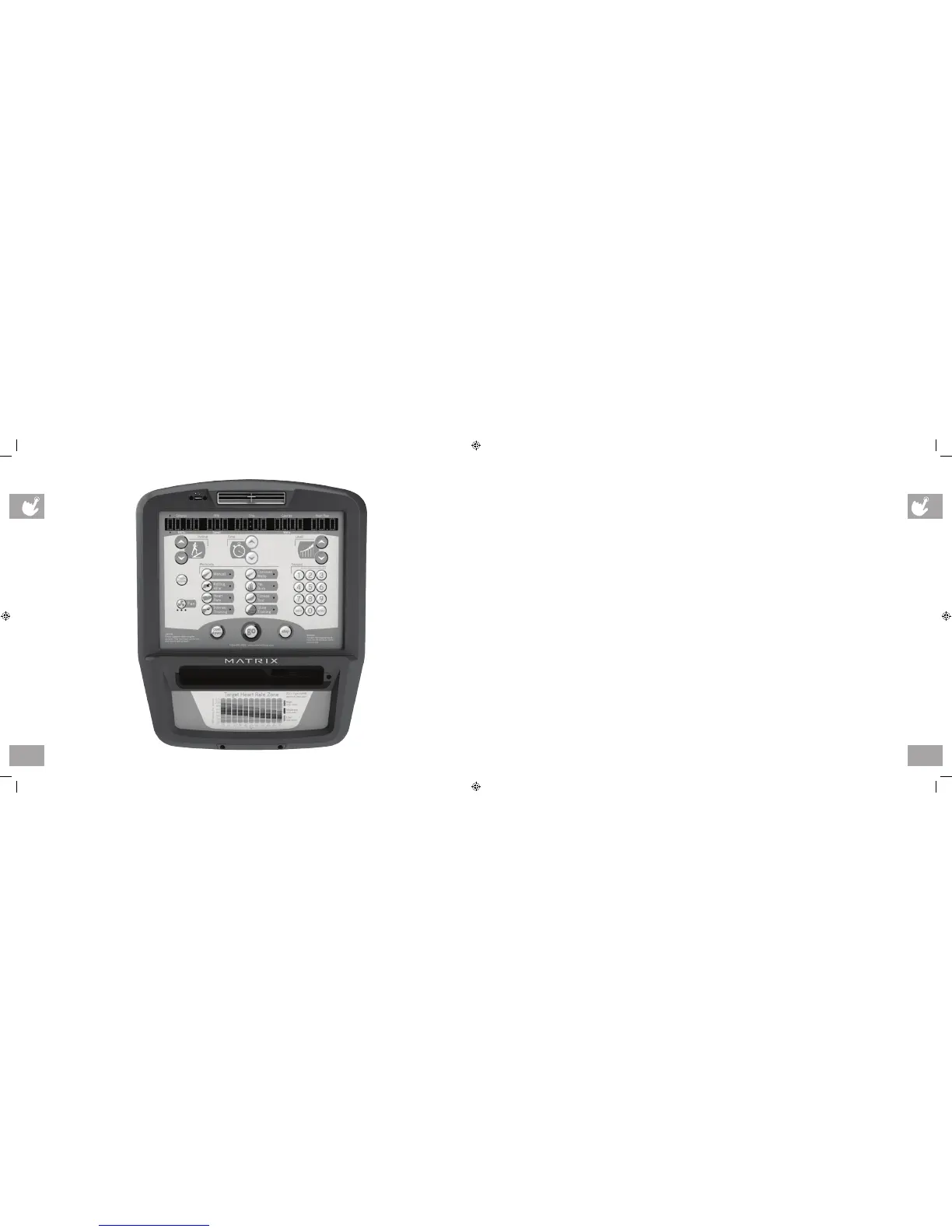

A5X CONSOLE SHOWN
