20
Important.
Read the instructions for use before
starting the machine.
Wear safety goggles.
Wear ear protection.
Wear good quality, strong gloves.
Always use breathing apparatus when
machining materials which generate
dust.
End of life machines contain valuable
materials and therefore they should not
be placed in household waste.
We would ask you to play your part in
protecting resources and help protect
the environment by returning this
machine to a return point (if one is
available) when it reaches the end of its
life.

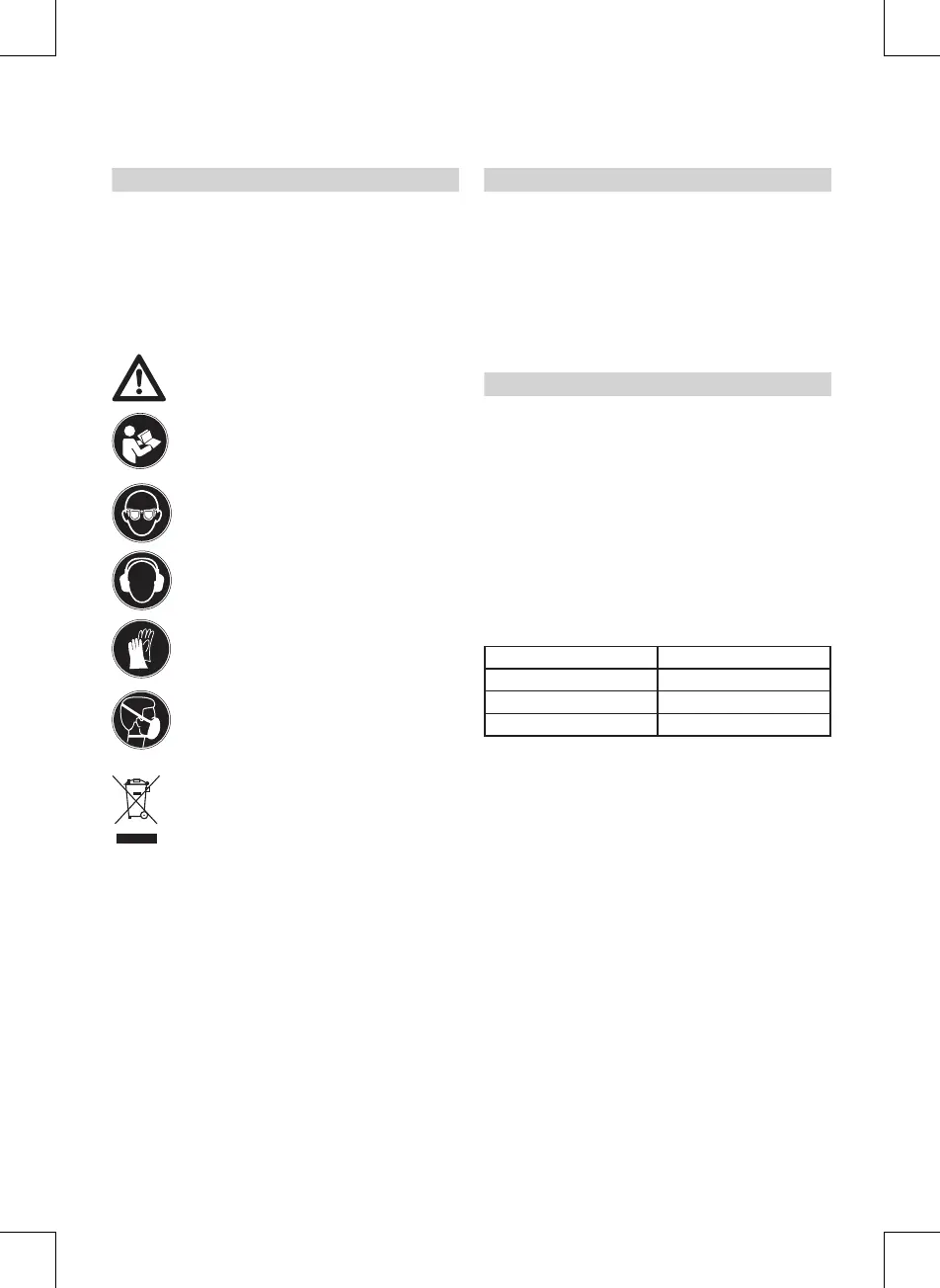

5. Description of symbols
Pay attention to all the signs and symbols shown
in these instructions and on your tool.
Make a note of these signs and symbols. If you
interpret the signs and symbols correctly, your
work with the machine will be safer and better.
6. Layout
1. Spindle lock
2. Safety switch
3. ON/OFF switch
4. Additional handle
5. Protective cover for grinding
6. Flange nut wrench
7. Lever to turn the head
7. Before starting the equipment
Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
7.1 Fitting the additional handle (Fig. 2)
.
The angle grinder must not be used without the
additional handle (4).
.
The additional handle can be secured in any of 3
positions (A, B,C).
Tool side Suitable for
Left (position A) Left hand
Right (position B) Right hand
Middle (position C) Left/ right hand
7.2 Setting the guard (Fig. 3)
.
Switch o the tool. Pull the power plug.
.
Adjust the guard (5) to protect your hands so
that the material being ground is directed away
from your body.
.
The position of the guard (5) can be adjusted to
any specic working conditions. Undo the screw
(a) and turn the cover (5) into the
required position.
.
Ensure that the guard (5) correctly covers the
gear wheel casing.
