Matrix COSEC ARGO CAE200 User Manual

23
24
+
-
EM
Lock
Reverse biased
Diode
Power

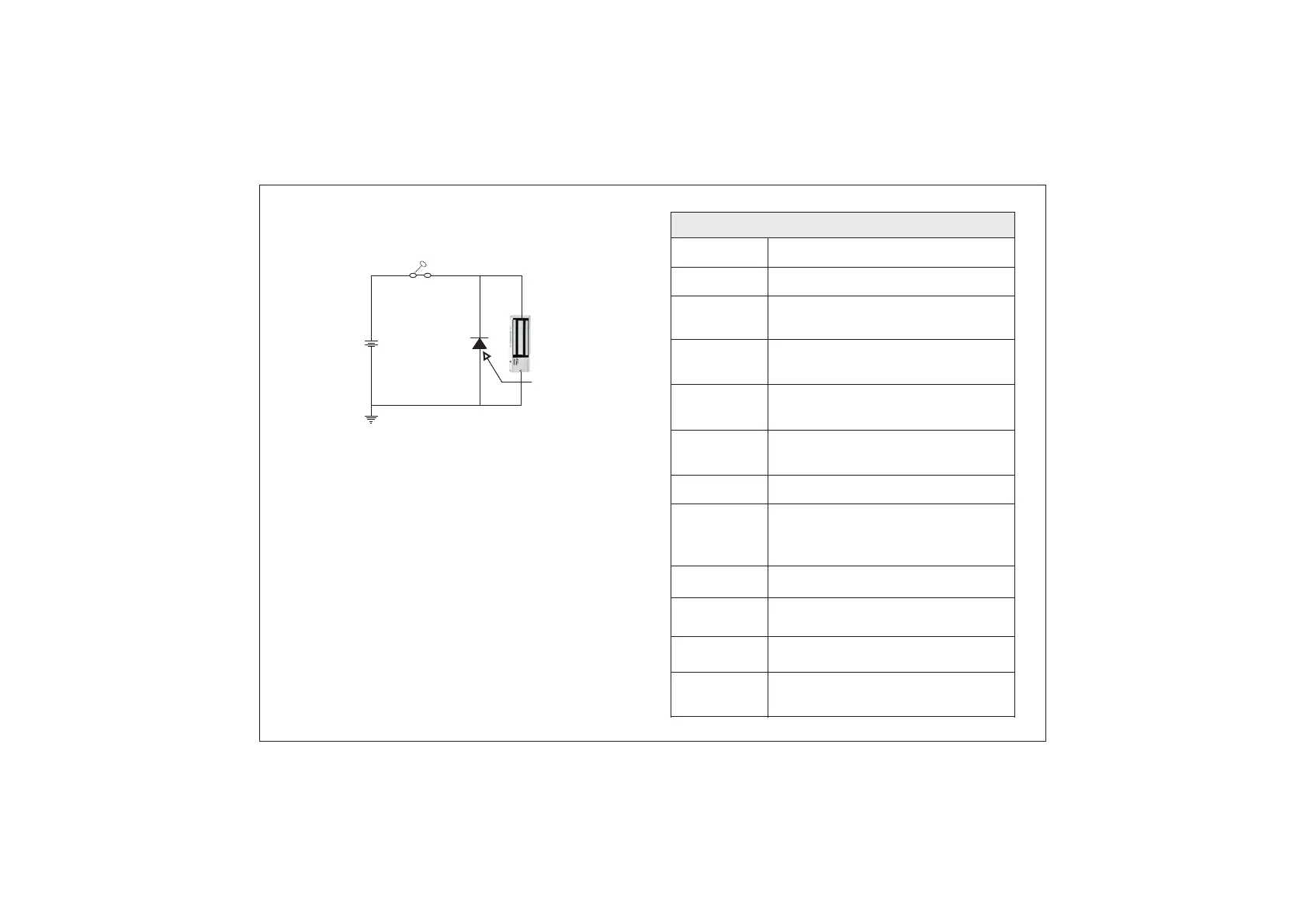

Diode Connection for Back EMF Protection
GND
Cathode
Anode
Relay
Pin 1
Relay
Pin 2
• Connect the Overswing diode in reverse biased condition
parallel to the EM Lock for better lifetime contact and to
protect the device from inductive kickback.
Default Username: Admin
Default Password: 1234
• Open the Web browser in your computer.
• Enter the IP Address of the COSEC ARGO,
• “default: http://192.168.50.1" in the address bar of the browser
and press the Enter key on your computer keyboard.
• When prompted, enter the login credentials for the Door.
Assigning IP Address and Other Network Settings
Technical Specification
Event Buffer
Input Power
Reader Power
Output
Reader Interface
Type
Door Lock
Relay
Door Lock
Power
Built In PoE
Display
5,00,000
12V DC @2A and PoE
RS 232 and Wiegand
Max 30V DC @2A
PoE (IEEE 802.3 af)
3.5 inch Capacitive IPS touch screen
with Gorilla glass 3.0;
Resolution: 480x320 pixels (HVGA)
Max 12V DC @0.250 A
Internal 12V DC @0.5A in PoE supply
mode and 12V DC @1A in Adapter
User Capacity
50,000
Communication
Port
Ethernet and WiFi
Built In
Bluetooth
Yes (IEEE 802.11 b/g/n)
Yes
Built In WiFi
