Matrix G7-S79 - Page 4

4
ENGLISH
Z22x2
B19x4
1
Hardware Qty
Z22
B19
Bolt (M8x15L)
Plug
2
4
Z10x5
Z19x5
Z26x5
Z10x5
Z24x5
Z17x2
Z19x2
Z17x2
Z20x2
Z17x2
Z19x2
Z23x2
Z17x2
Z17x2
Z23x2
Z17x2
Z19x2
Z25x4
Z24x4
Z10x4
Z20x2
Z17x2
Z17x2
Z19x2
Z10
Z24
Z21
Z11
Z15
Z09
Z15
Z03
Z04
Z03
Z04
D56
D57

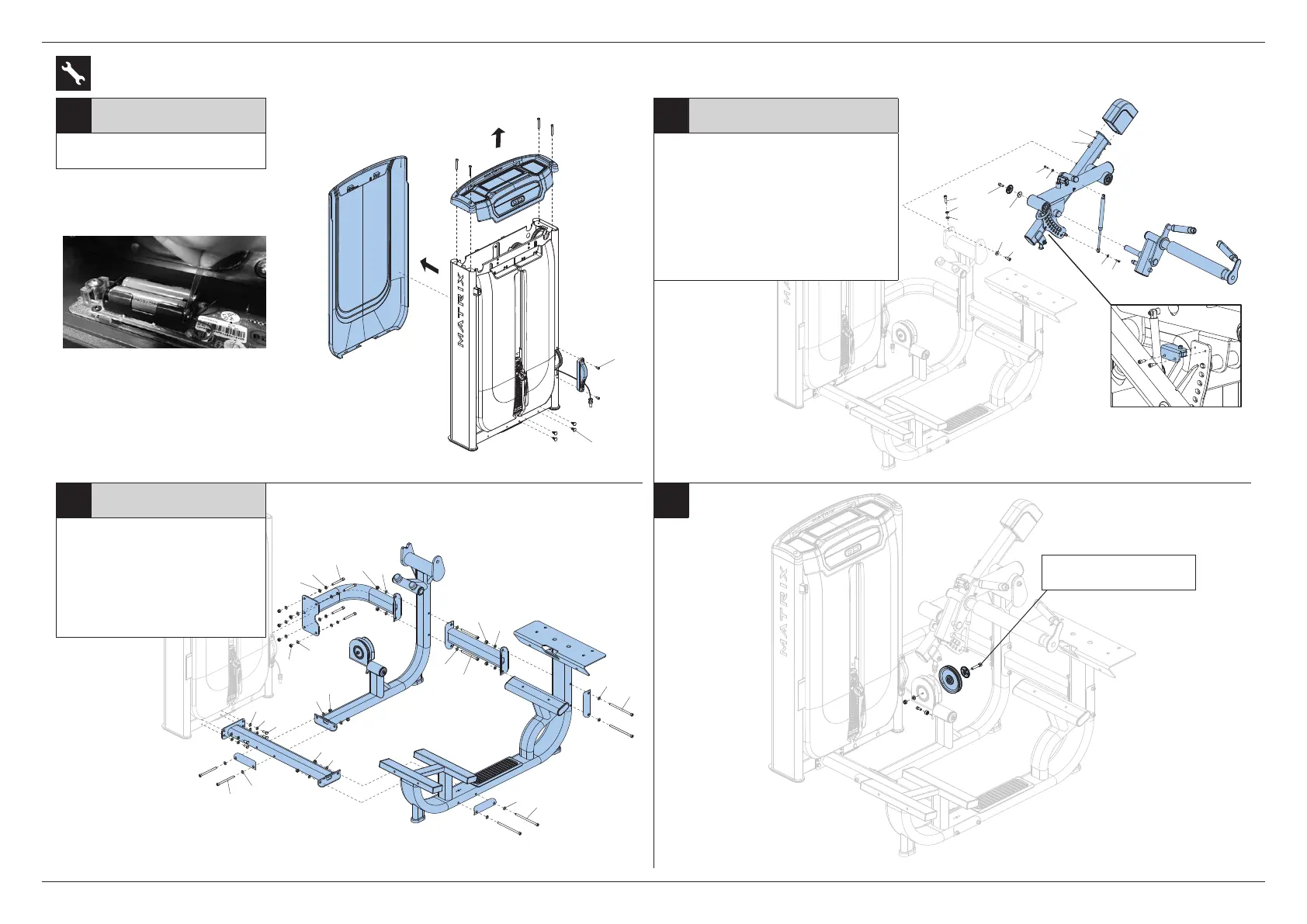

ASSEMBLY
2
Hardware Qty
Z26
Z24
Z10
Z19
Z23
Z20
Z25
Z17
Bolt (M10x85L)
Spring Washer (M10)
Flat Washer (M10)
Nut (M10)
Bolt (M10x180-35L)
Bolt (M10x130-35L)
Bolt (M10x25L)
Arc Washer (M10)
5
9
14
13
4
4
4
16
3
Hardware Qty
Z21
Z24
Z10
Z15
Z 11
Z09
Z03
Z04
D56
D57
Bolt (M10x40L)
Spring Washer (M10)
Flat Washer (M10)
Bolt (M10x25L)
Thick Washer (M10, OD: 25.5)
Flat Washer (M35, OD: 35)
Screw (M6x20L)
Flat Washer (M6)
Flat Washer (M8)
Bolt (M8x25L)
1
1
1
2
1
1
2
2
2
2
Be sure to remove the insulating sheet
when installing the rep counter.
Do not fully tighten frame connectors until
assembly is complete. Vibra-Tite 135 Red Gel
or equivalent must be used on all fasteners
that are not assembled with Nyloc Nuts.
4
Remove for easy
assembly of air shock
Torque Value
45 Nm / 33 ft-lb
