Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 6
5 6
7
STOP mark

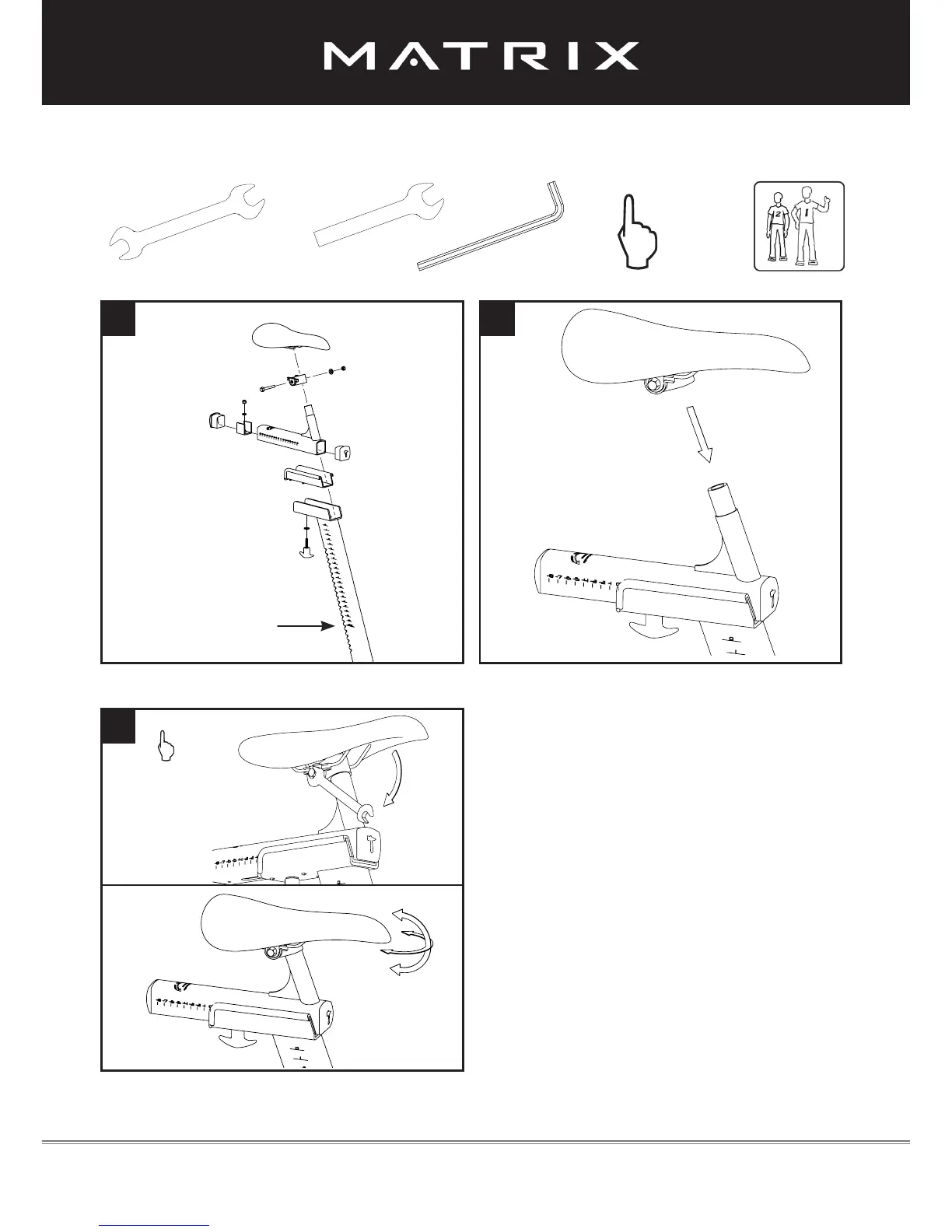

HOW TO ASSEMBLE Matrix E-Series
SW 17mm
SW 14mm
3mm
hand tight
2x
15mm Pedal
Wrench
1x
Make sure the seat is xed properly in
a LEVEL HORIZONTAL position and
securely tigthend from both sides!
