Matrix SATATYA NVR6404X User Manual

5 Matrix SATATYA NVR Quick Start
NVR3204X/NVR6404X/NVR6408X
Ports and Connectors

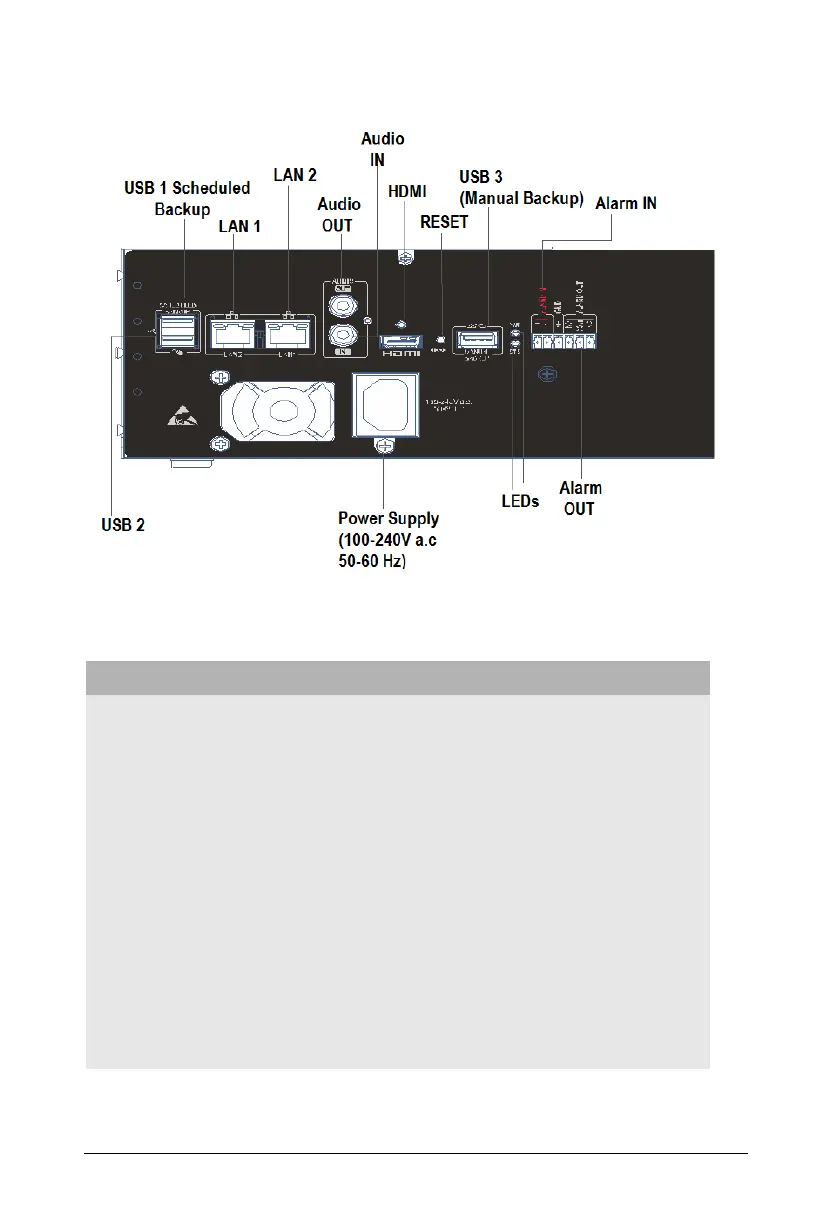

Interface Description All Variants
USB 1
(Upper)
USB 2.0, used for Scheduled Backup.
To connect USB Mouse.
To connect Dongle.
Yes
Ratings: 5VDC - 500mA
USB 2
(Lower)
USB 2.0, used to connect USB Mouse.
To connect Dongle.
Yes
Ratings: 5VDC - 500mA
USB 3
USB 3.0, used for Manual Backup.
To connect USB Mouse.
To connect Dongle.
Yes
Ratings: 5VDC - 900mA
Alarm In
(Terminal Block Plug)
To connect a sensor device to detect
alarm events.
Yes (2)
ALARM OUT
(Terminal Block Plug)
To connect an alarm sounding relay
device such as a hooter or siren.
Yes (1)
HDMI 2.0
To connect a high definition digital
monitor or TV for Main view.
Yes (1)

Matrix SATATYA NVR6404X Specifications

General

Brand	Matrix
Model	SATATYA NVR6404X
Category	DVR
Language	English
