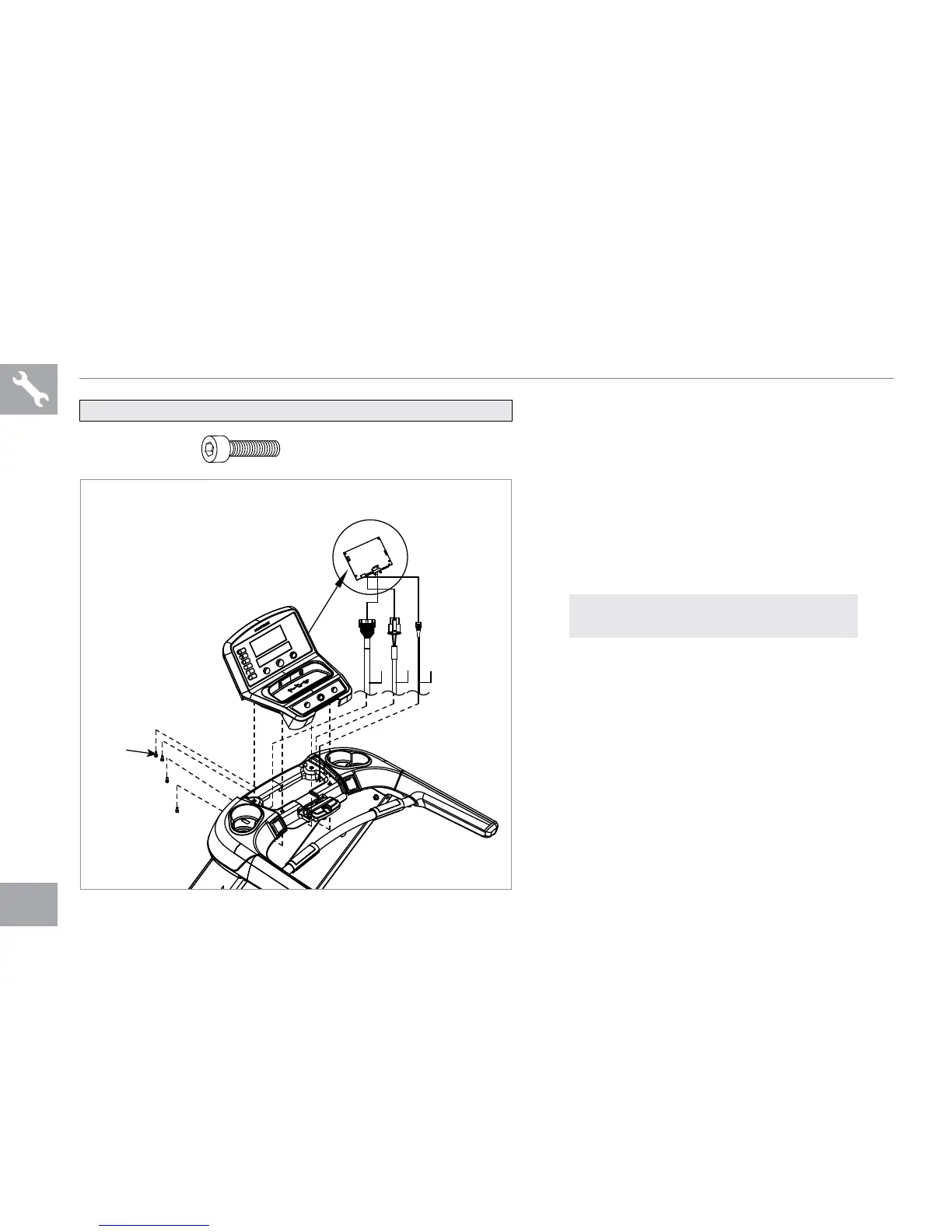

ASSEMBLY STEP 5
A Open HARDWARE BAG 3.
B Slide CONSOLE through the CONSOLE
MAST BOOTS.
NOTE: Make sure the arrows on the mast rings
are pointing upward towards the console when
sliding into place.
C Connect CONSOLE CABLES.
D Connect CONSOLE to RIGHT CONSOLE
MAST using 2 BOLTS (A), 2 SPRING
WASHERS (B) and 2 ARC WASHERS (C).
E Repeat on other side.
F Fold the deck into the upright position until
the foot latch engages. Rotate the CONSOLE
MASTS until the spacing between the
handlebars and the deck are the same. Tighten
BOLTS from step 1 and then step 3.
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
