Matrix T50 Service Manual

C HAPTER 3 : Part Replacement Guide
3.5 FRON T ROLLER REPLACEMENT
1) Remove the motor cover as outlined in Section 3.1.
2) Loosen both of the rear roller bolts to remove tension from the running belt (Fig-1).
3) T70-02 only: Remove the spring from the drive belt tensioner (Fig-2). The tensioner should now pivot
away from the drive belt.

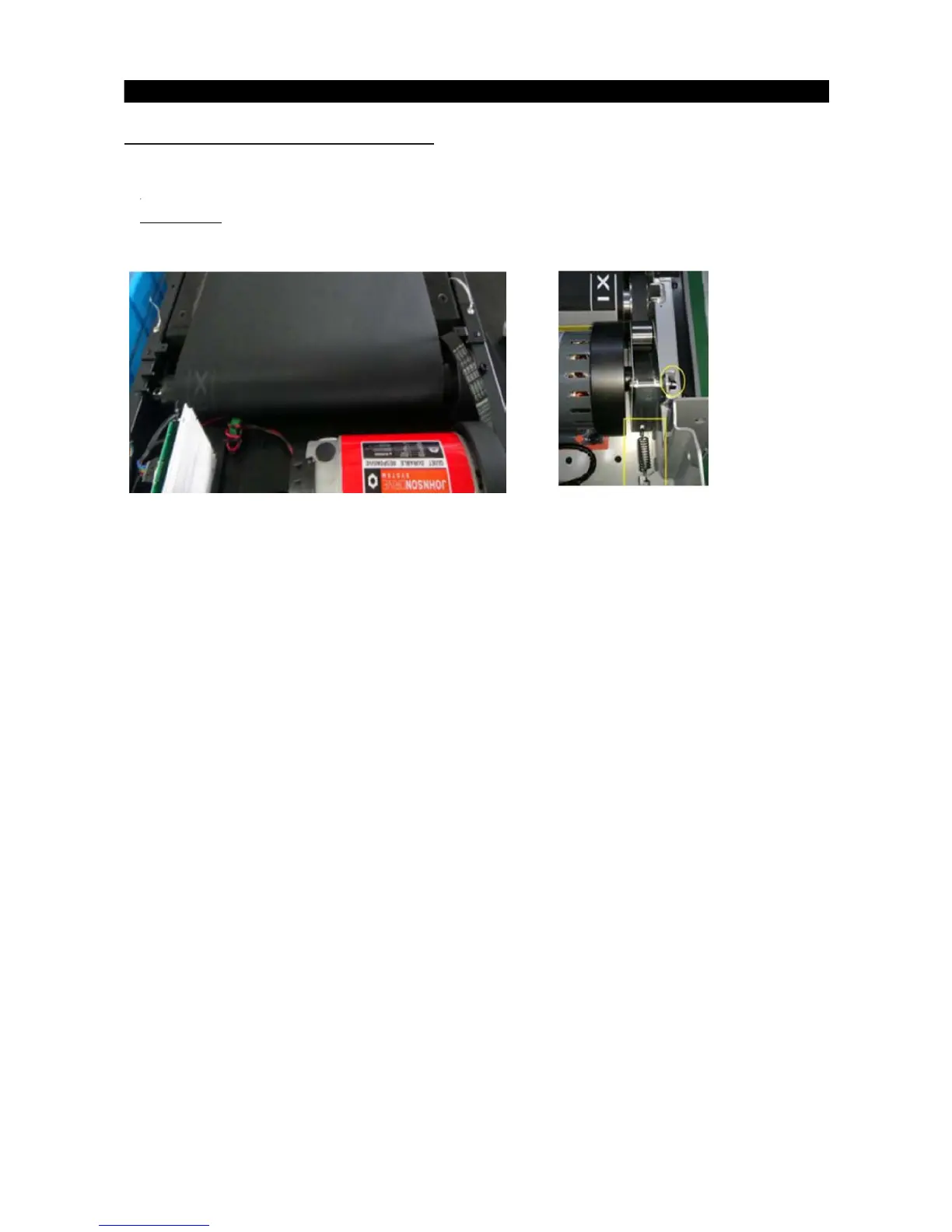

Fi g-1 Fig-2
3) Remove the drive belt from the motor pulley.(Fig-1)
4) Remove front roller bolts and remove front roller and drive belt.
5) Revers e steps to replace front roller and drive belt.
24

Matrix T50 Specifications

General

Incline Range	0 - 15%
Folding	No
Speed Range	0.5 - 12.5 mph
Running Surface	20" x 60"
Weight Capacity	400 lbs
Max User Weight	400 lbs (182 kg)
