CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
5.3 T50x, T50x-U MODEL ASSEMBLY STEPS 5.3 T50x, T50x-U MODEL ASSEMBLY STEPS
Assembly is completed and the auto-calibration sequence must be run at this time.
ASSEMBLY COMPLETED
CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
Z53
Z54

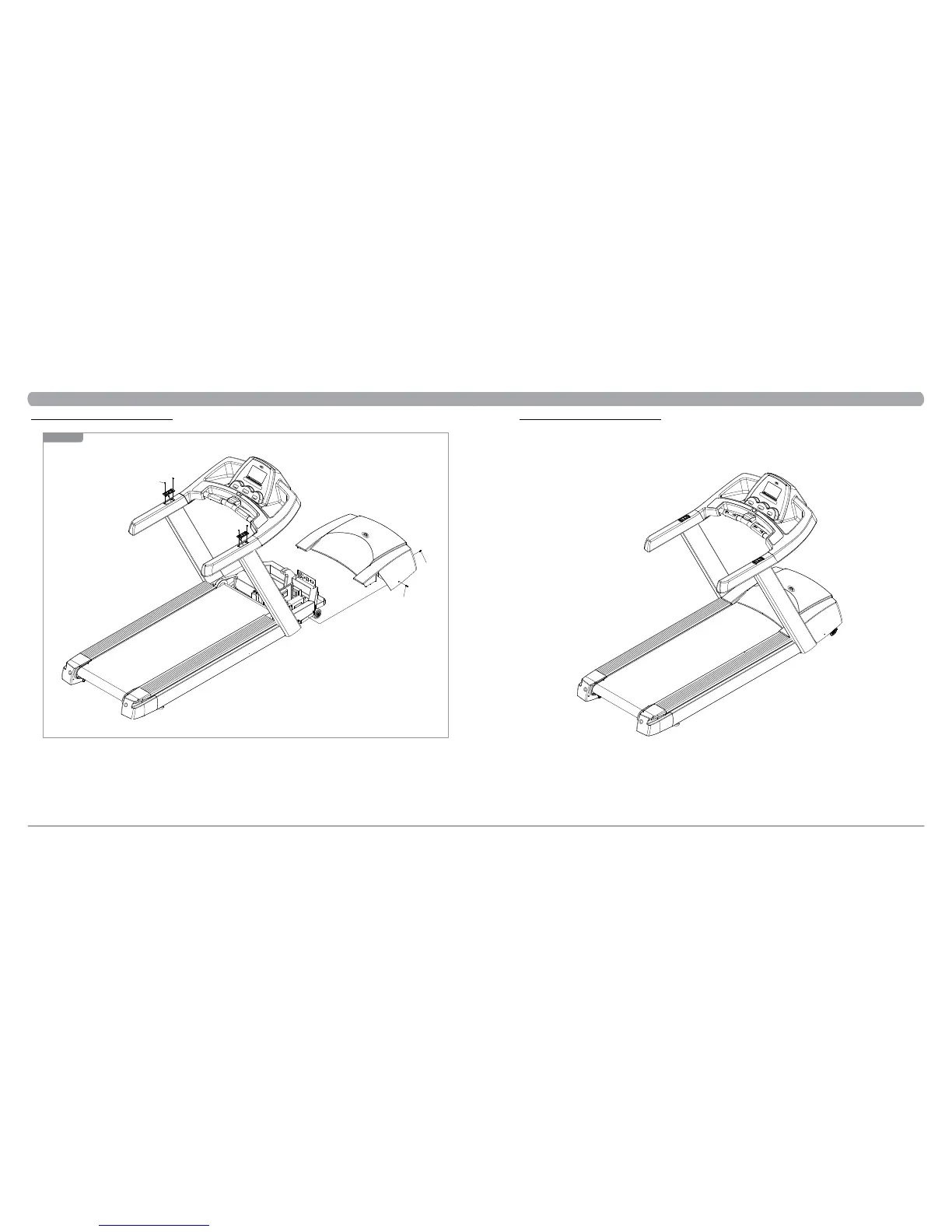

STEP 4
1. Connect the speed and incline Swift Controls™ cables with the control panels. Secure the Swift Controls™ panels onto the armrests with the 2 screws
(Z54) on each side. Note: The Swift Controls™ panels separate into right for SPEED control and left for INCLINE control, make sure these panels are
in the correct position.
2. Place the motor cover onto the treadmill front end and secure with the screws (Q53) included in the motor cover and the screws (Z53) provided in the
hardware kit. Plug the power cable into the outlet.
