14 15
5.3 T50x, T50x-U MODEL ASSEMBLY STEPS
CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
5.3 T50x, T50x-U MODEL ASSEMBLY STEPS
CHAPTER 5: t50x, t50x-u Treadmill specifications, parts, and assembly Guides
Z52
Z52

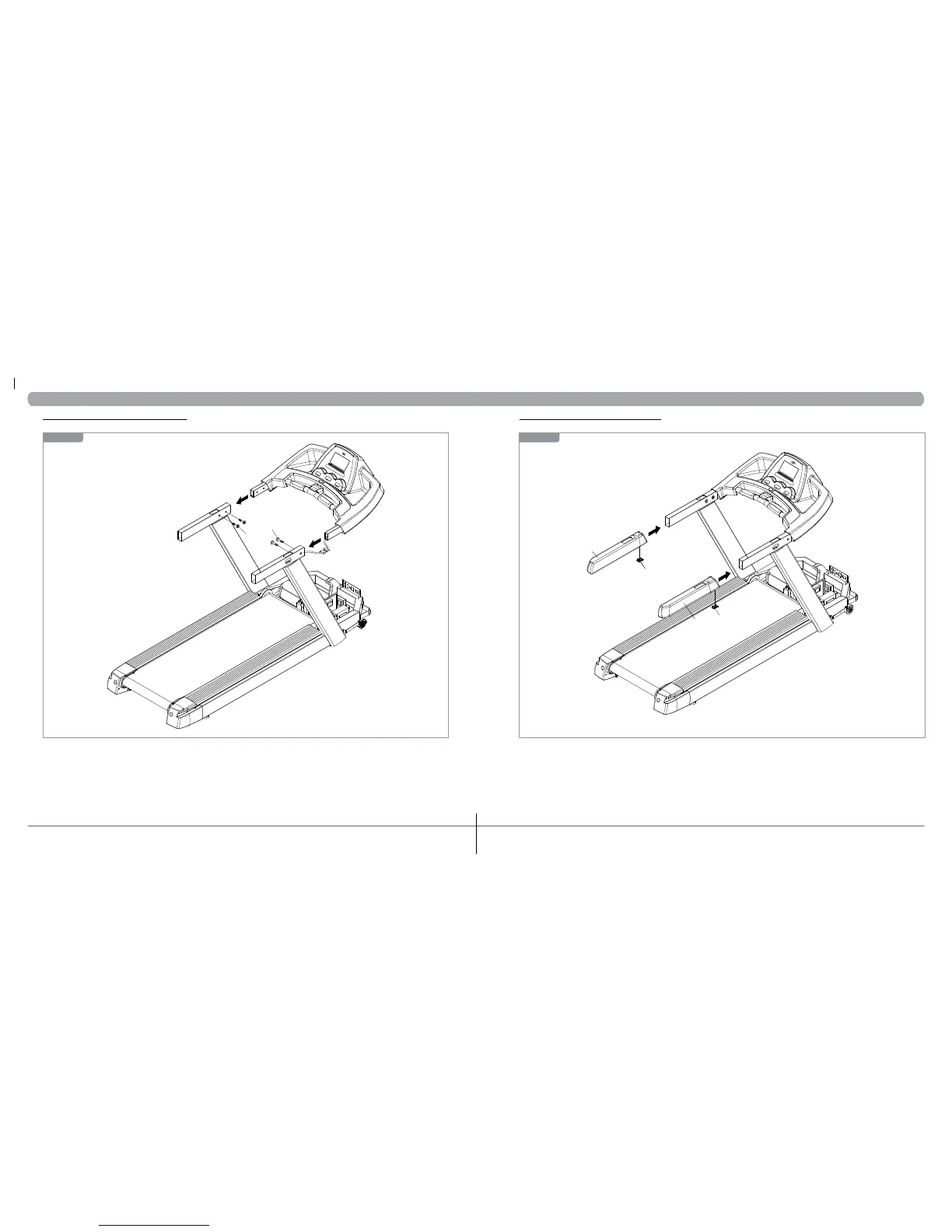

STEP 2
Connect the console cables from the console set to the motor control board cables. Secure the console set with 2 screws (Z52) on each side.
N06
N04
N07
N03
STEP 3
Put the foam armrests (N03, N04) into the armrest frame. Use the caps (N06, N07) to secure them.
Note: The caps separate into right and left, make sure these caps are in the correct position.
To Next Page
