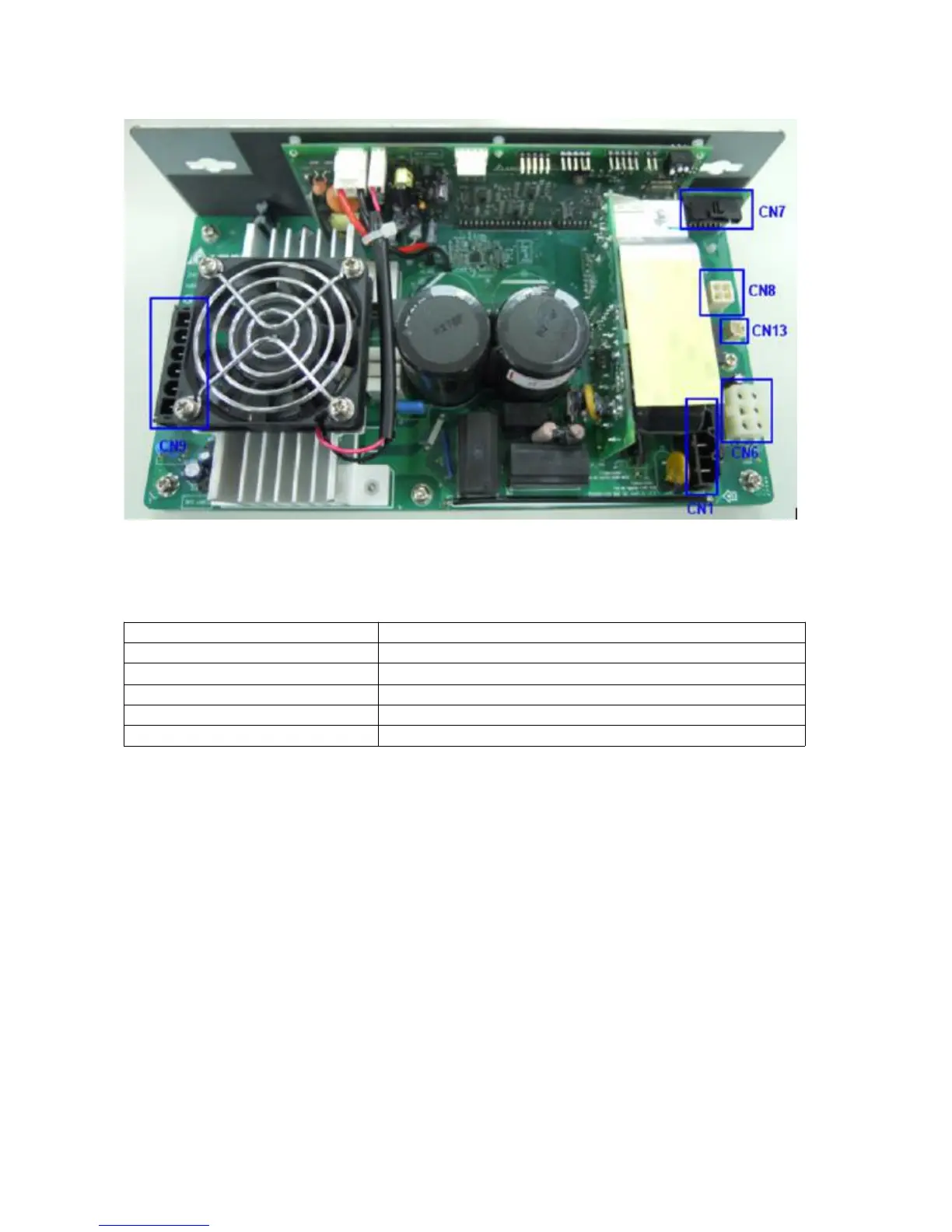

5. MCB CIRCUIT BOARD INSTRUCTIONS (T70/T75) ( 220V)
Fig-2
CN9
AC motor cable socket
CN1
Input power cable socket
CN13
External fan cable socket
CN7
Digital communication cable socket
CN6
Elevation motor cable socket
CN8
Adaptor power cable socket (only for T1xe / T3xe)
12
