Matrix T75 Service Manual

C HAPTER 3 : Part Replacement Guide
3.7 MOT OR CONT ROL BOARD (MCB) REPLACEMENT.
1) Turn off power and disconnect the power cord from the machine.
2) Remove the motor cover as outlined in Section 3.1.
3) Remove the wire connectors at the MCB. (Fig -1)
4) Remove the 2 screw s holding each side of the MCB to the frame (Fig-2).

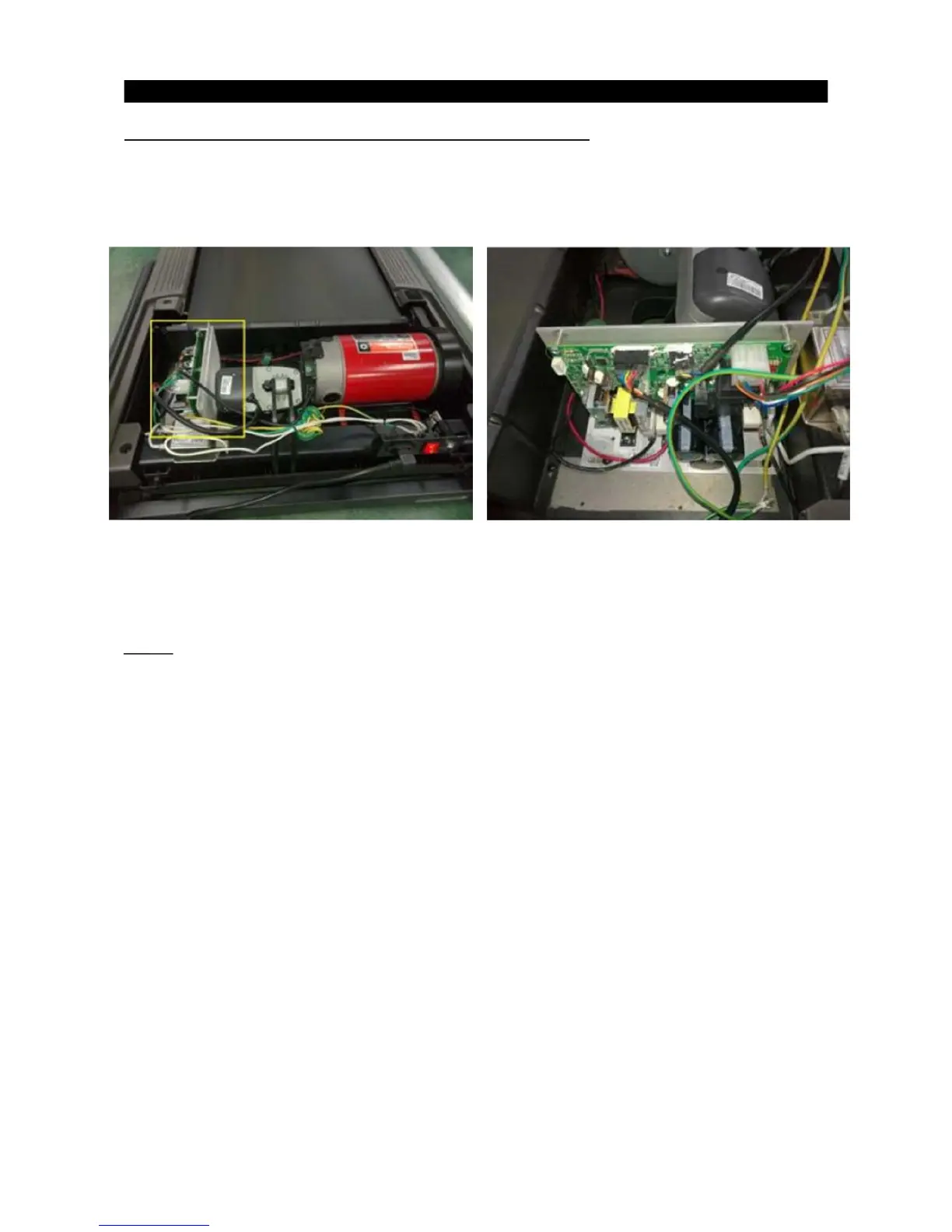

Fig-1 Fi g-2
5) Remove the MCB.
6) Reverse Steps 1-5 to install a MCB. Make sure that all wires removed during Step 3 are re-connected.
Note.
Rep lace any wire ties removed.
26
