Matrix T75

CHAPTER 3 : Part Replacement Guide
3.9 CONSOLE REPLACEMENT
1) Turn off power to the treadmill and disconnect the power cord.
2) Remove the 4 screws holding the console from the console mast (Fig-1and Fig-2 ).
3) Disconnect all wires from console.
4) Install the new cons ole by reversing steps 1 - 3.
5) Turn on the power and select corresponding model (Reference XR/X ER/XIR con sole service manual)

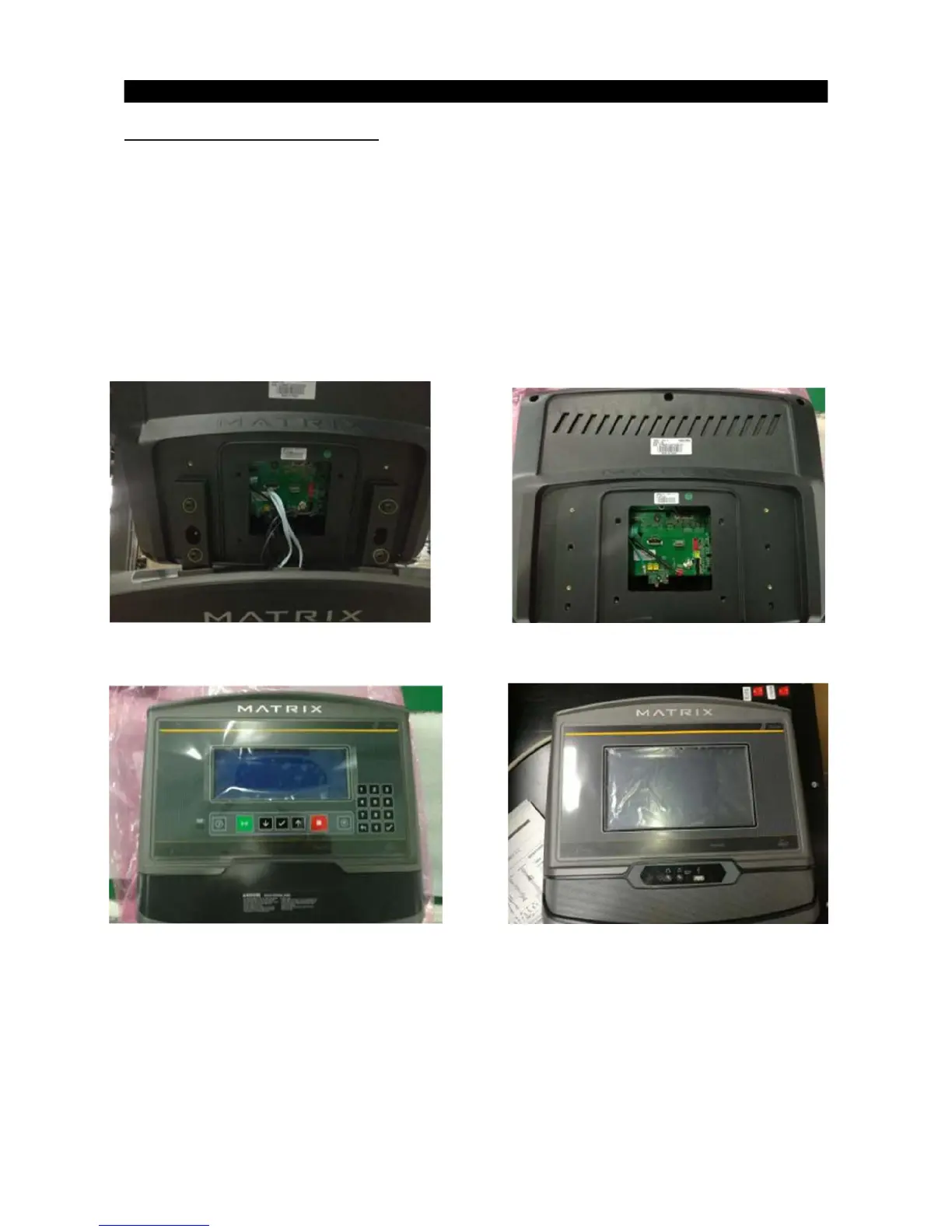

Fig -1 Fig-2
Fig-3 Fig-4
28
