9.10 DRIVE BELT REPLACEMENT
1) Remove the motor cover as outlined in Section 9.1.
2) Release the drive belt tensioner from the drive belt as outlined in Section 9.5.
3) Remove the front roller screw on the drive belt side and loosen the screw on the opposite side (Figure A).
4) Lift the roller and remove the old drive belt (Figure B).
5) Reverse Steps 1-4 to install a new drive belt. NOTE: After installing a new belt, check it for correct alignment to the motor pulley before
setting the tensioner in place.
6) Tension the running belt as outlined in Section 3.6.

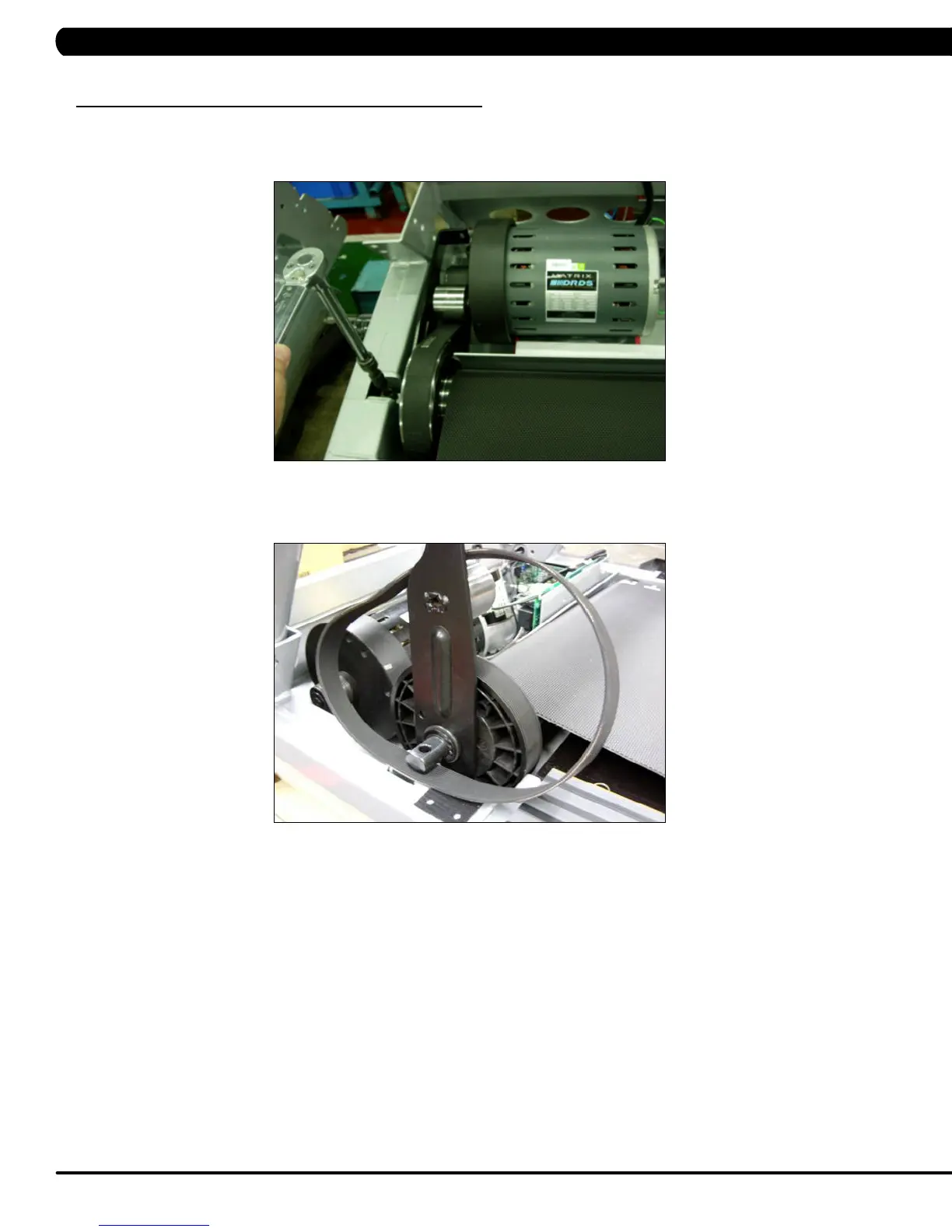

FIGURE A
FIGURE B
