9.11 INCLINE MOTOR REPLACEMENT
1) Turn off the power and disconnect the cord from the machine.
2) Lift the treadmill and support it so that the front wheels are off the floor, or the unit may be tipped on its side (Figure A).
3) Remove the clip from the pin attaching the bottom of the incline motor to the rack (Figure B).
4) Remove the pin attaching the bottom of the incline motor to the rack (Figure C).

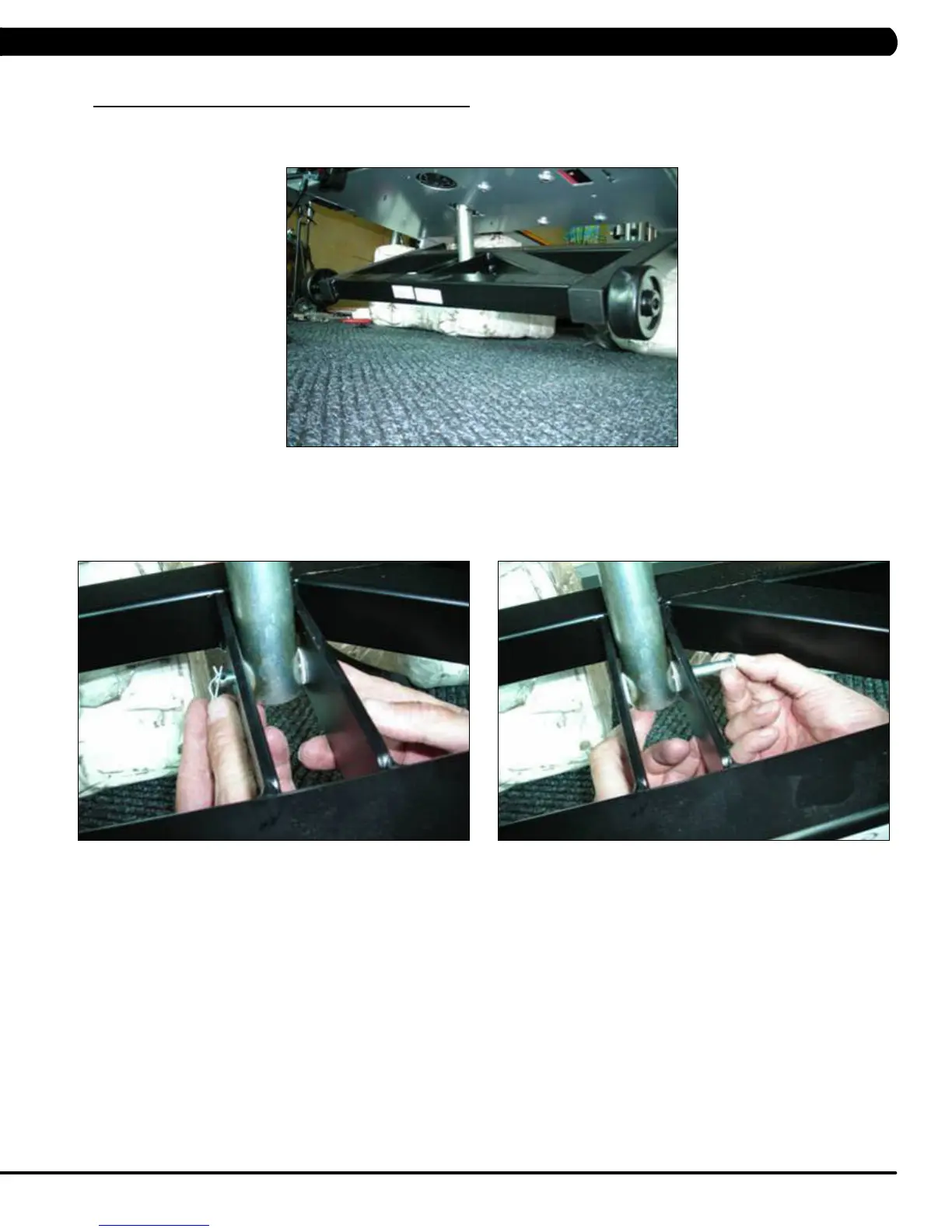

FIGURE A
FIGURE B FIGURE C
