9.15 HANDLE BAR SERVICE
1) Turn off the power and disconnect the cord from the machine.
2) All items on the handle bar are removed using a Phillips screwdriver from the underside of the bar.
3) Once the screws are removed, lift the part carefully and disconnect any wire connections to fully remove the handle bar.
4) Replace the parts as needed on handle bar including the Quick Start Key, Resistance and Incline Toggles, and the Heart Rate Grip Plates
(Figures A-F).

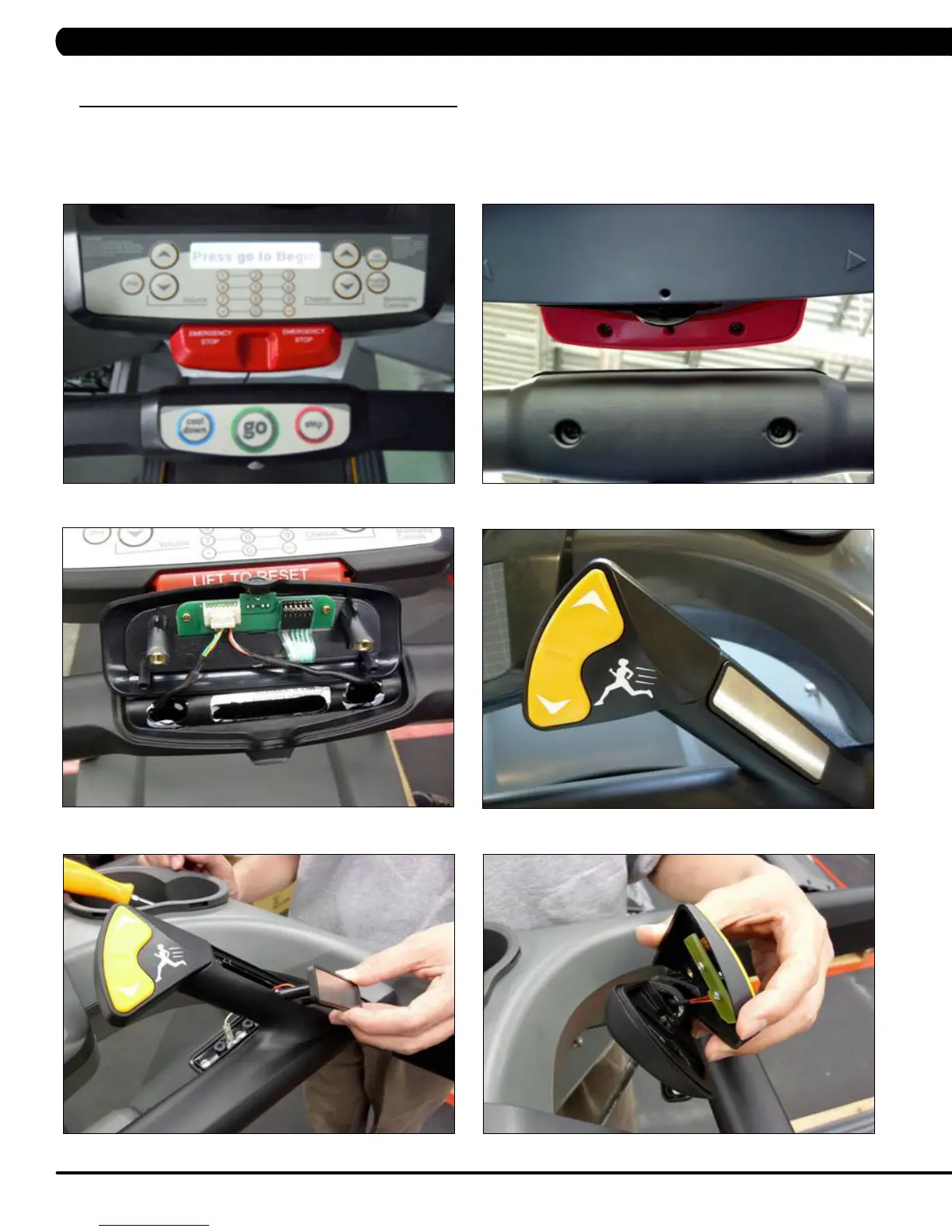

FIGURE A FIGURE B
FIGURE C
FIGURE D
FIGURE E FIGURE F
CHAPTER 9: PART REPLACEMENT GUIDE
