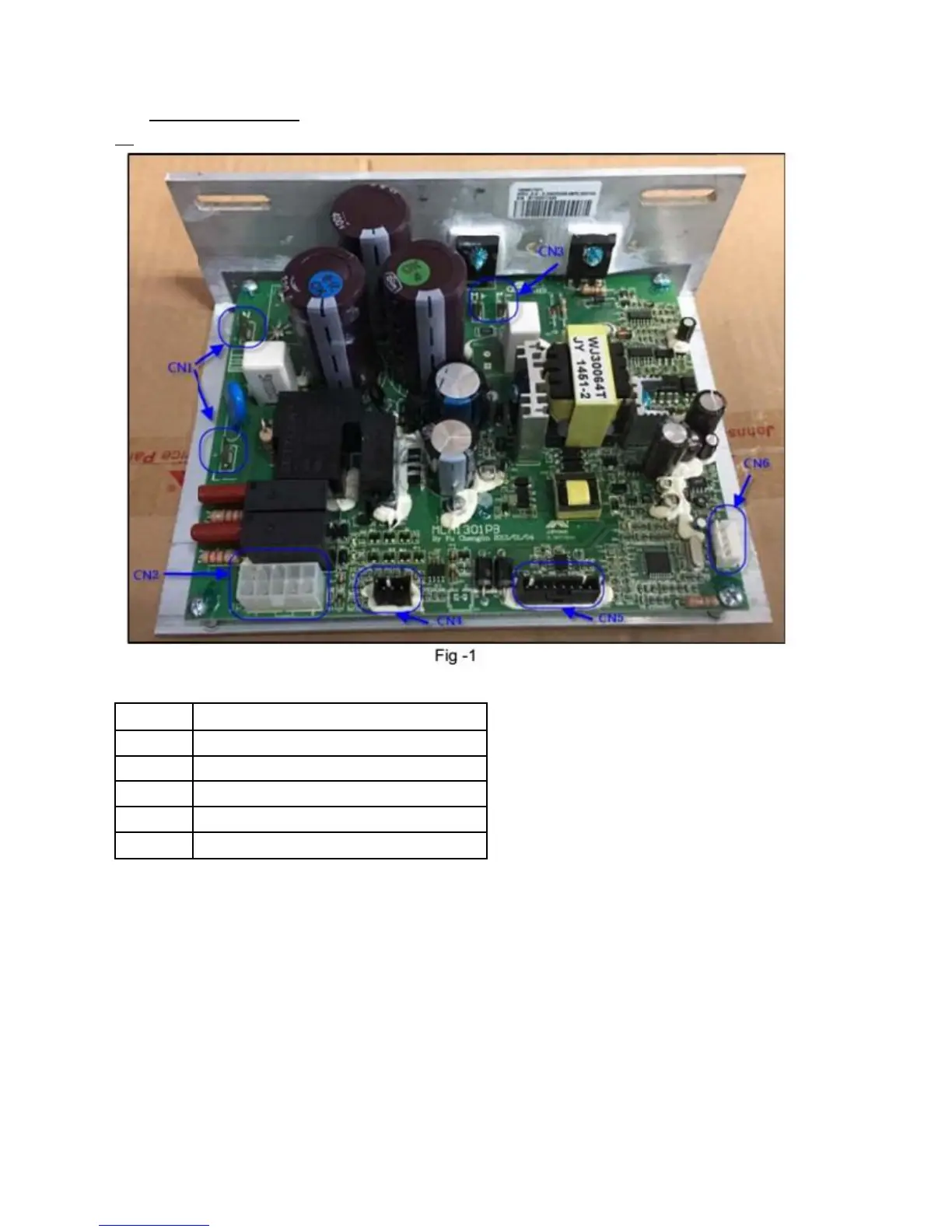

2.2. MCB instructions
1. TF30/T30/TF50/T50
CN1
Power Line in terminals
CN2
Incline motor power cable socket
CN3
Drive motor cable terminals
CN4
Speed sensor cable socket
CN5
Console cale socket
CN6
Software burning cable socket
