Revised: March 2021 I Revised By: BNelson Page 15 of 15

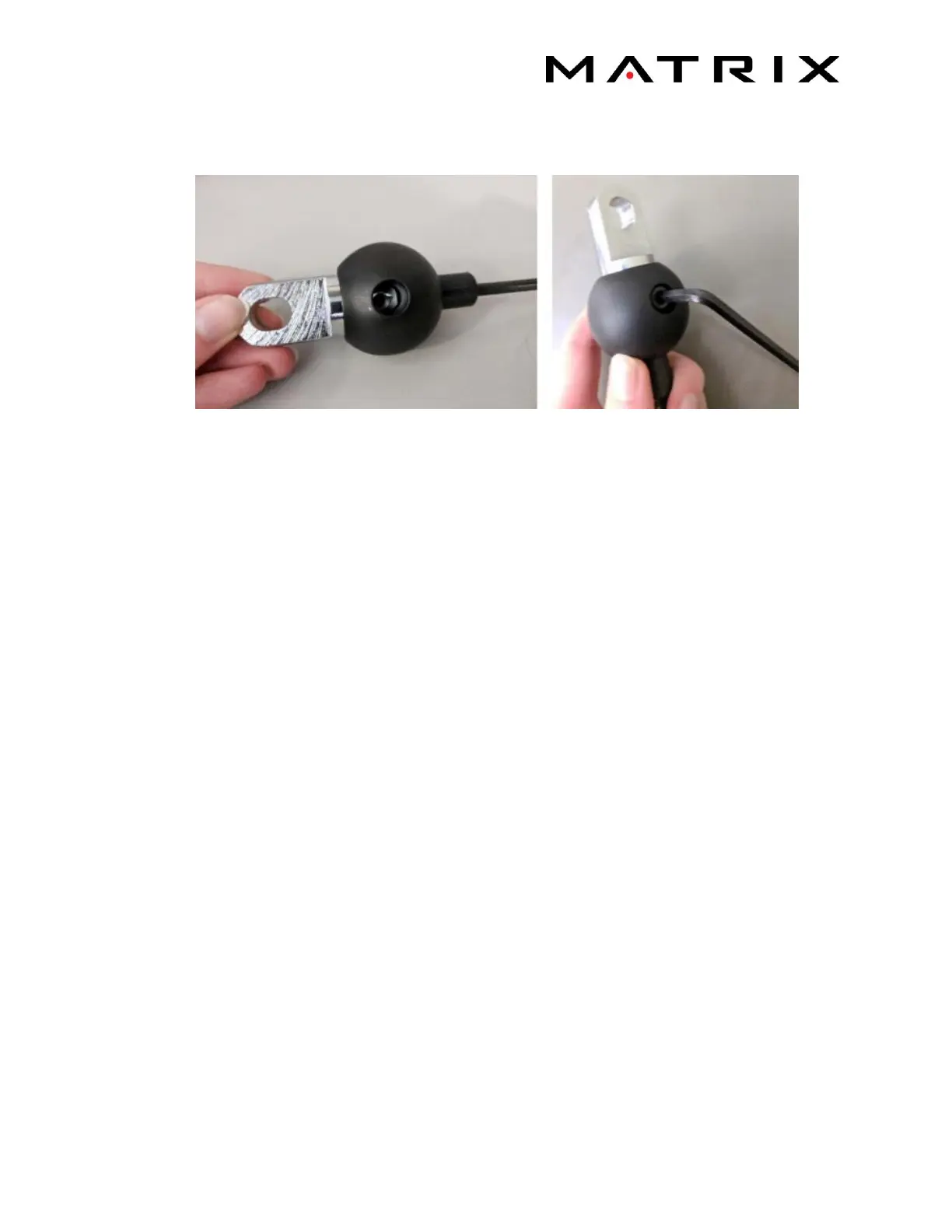

3. Apply Vibra-Tite thread locker (red) to the bolt. Next, use a 4mm Allen wrench to attach the
socket head screw to secure the assembly.
