17
STEP 1 | PAD ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
29 M10 X 20L Hex Bolt 4
30 Pad 1

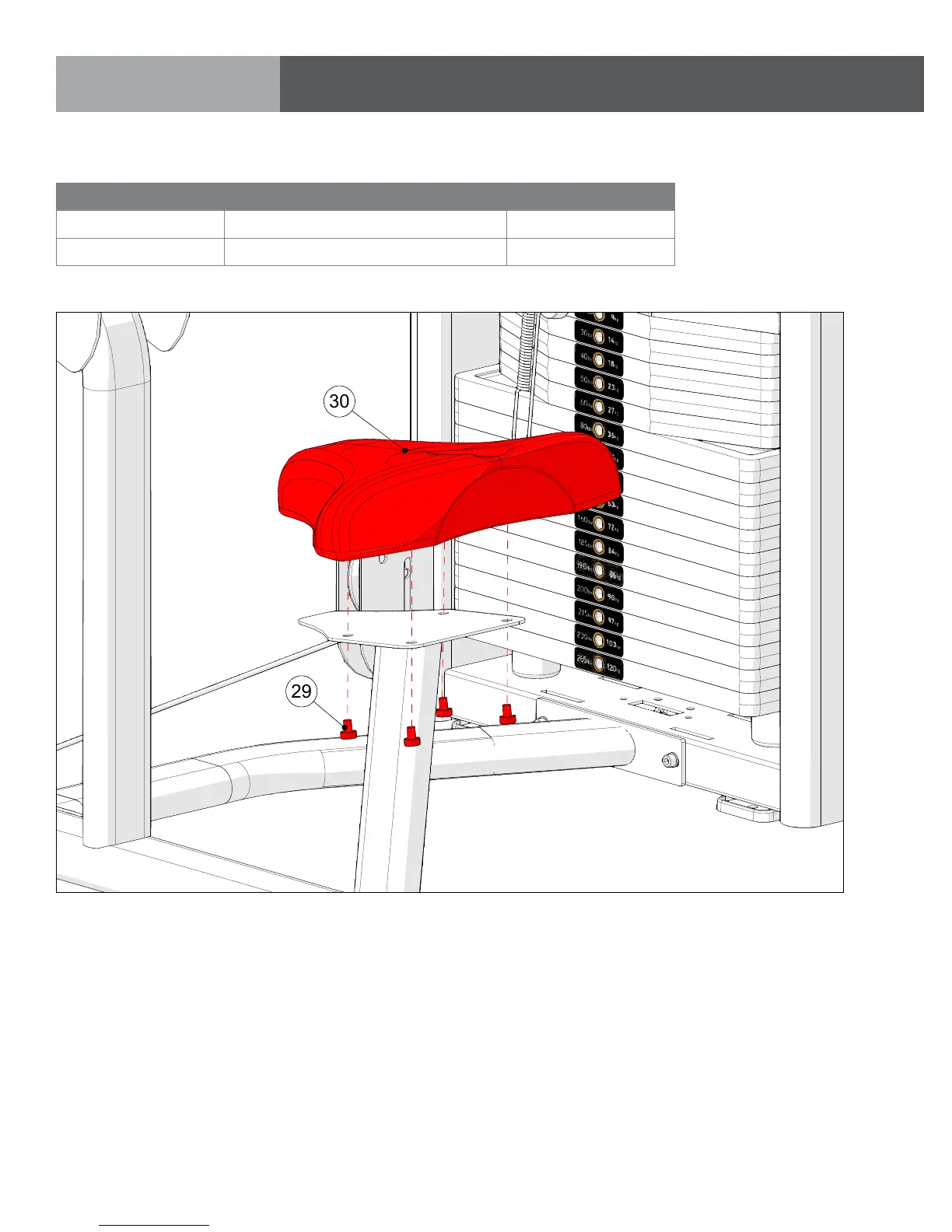

Install the pad as shown.
Tighten to 57 N-m/41 ft-lbs.
ASSEMBLY
PART 6: PAD ASSEMBLY
29
30
