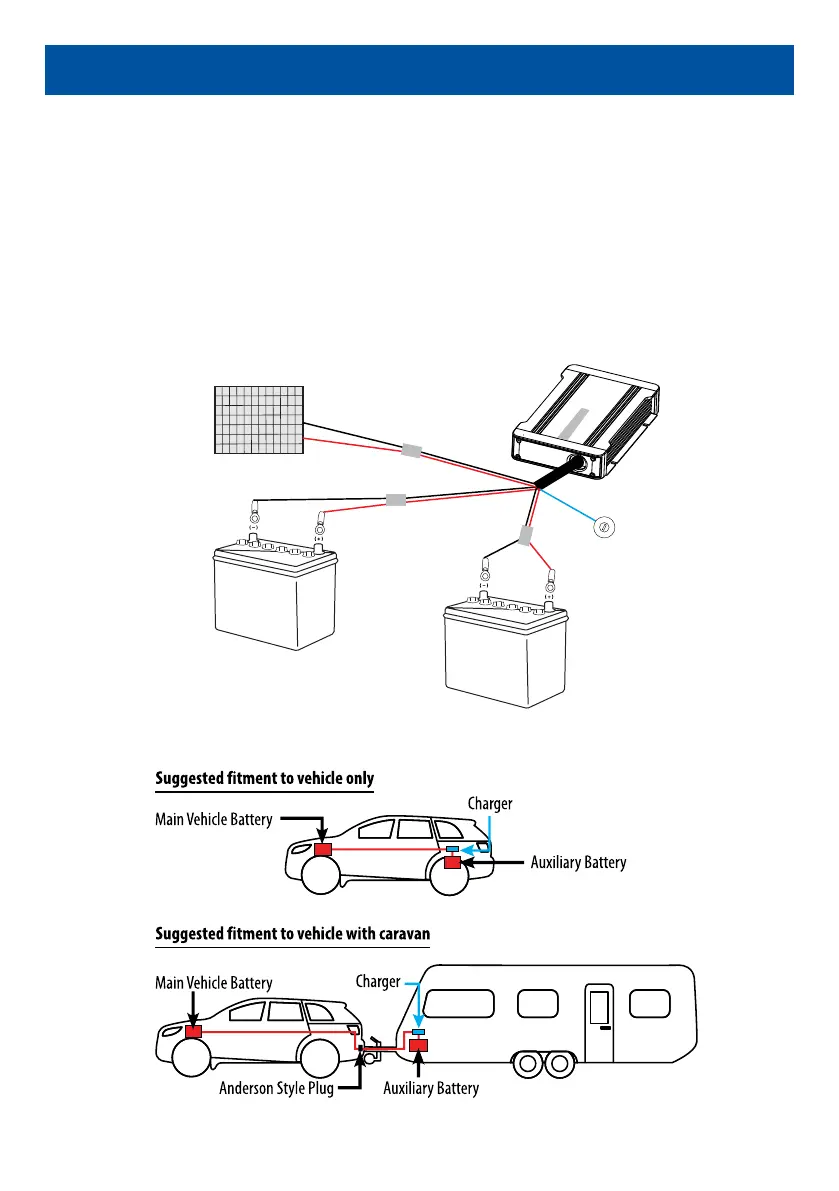

INSTALLATION OPTIONS / INSTRUCTIONS
Installing the Charger
This unit is supplied with 50 Amp Anderson style connectors already connected to the battery
charging output, the solar input and the battery input leads, ready to plug and play. More wiring
and connectors will be required to connect these to your vehicle/panels etc. if they are not
already tted.
Any existing or additional cables used in the installation of this product needs to be suitable for
the current and distance required. Matson recommends the use of 10mm
2
cable for this purpose
as a minimum.
