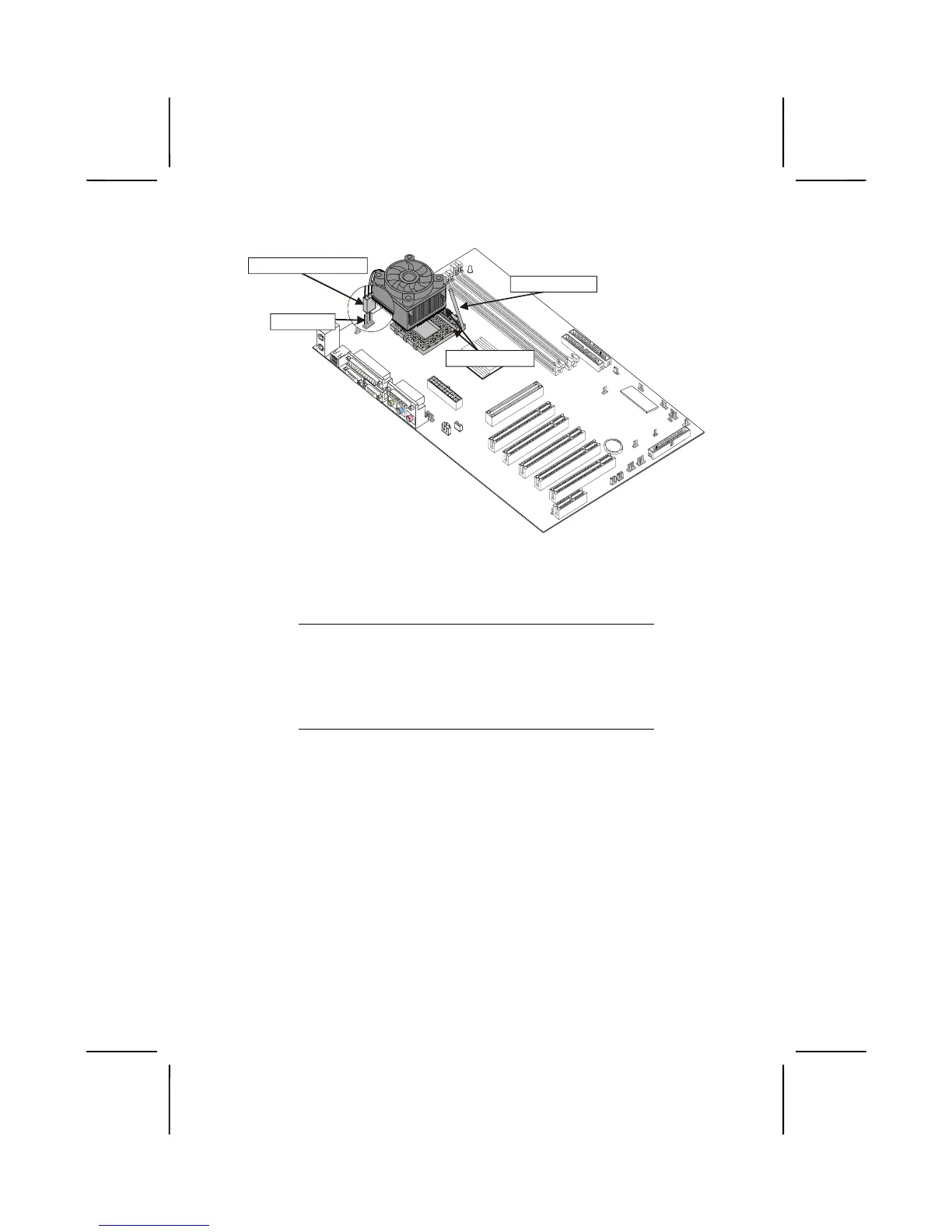

heatsink assembly
CPU fan connector
CPUFAN1
Pin A-1 corner
6. Lower the CPU fan/heatsink unit onto the CPU and
CPU socket and then snap the fan/heatsink into place.
7. Plug the CPU fan power cable into the CPU cooling
fan power supply on the mainboard (CPUFAN1).
Note:
After you have assembled the system, you must set
the correct clock speed and frontside bus (FSB)
speed. Check the jumper section in Appendix A if
your mainboard has jumpers that control the FSB,
and refer to Frequency/Voltage Control on page 61
for more information.
