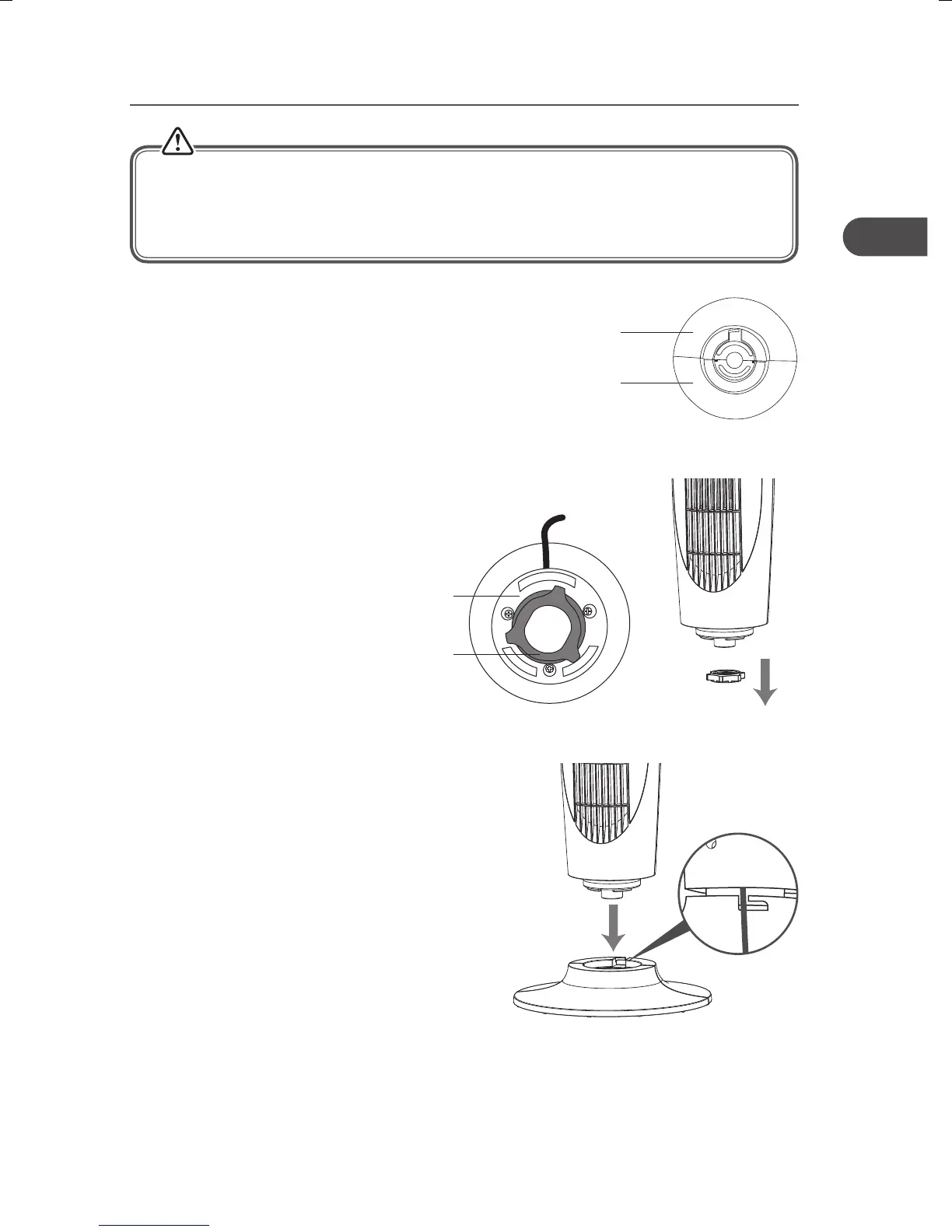

3. Locate the mains cable in the slot in the rear
base. Fit the base to the bottom of the tower
fan.
1. Put the front base against the rear base and
secure them together.
Assembling the Fan
2. Unscrew the Base Clip from the bottom of
the tower fan.
• Avoid using your fan in hazardous areas.
• Do not use your fan if it has not been fully assembled. Make sure that the base clip that
hold the base parts and the main unit together are tightened securely.
• Do not connect the unit to the mains until the assembly is nished.
Rear Base
Front Base
Base Clip
Bottom of
Tower Fan
