PAVER OPERATION SECTION
Prior to starting the following procedures must be completed.
1. Check engine oil level 2. Check engine coolant level 3. Check hydraulic oil level

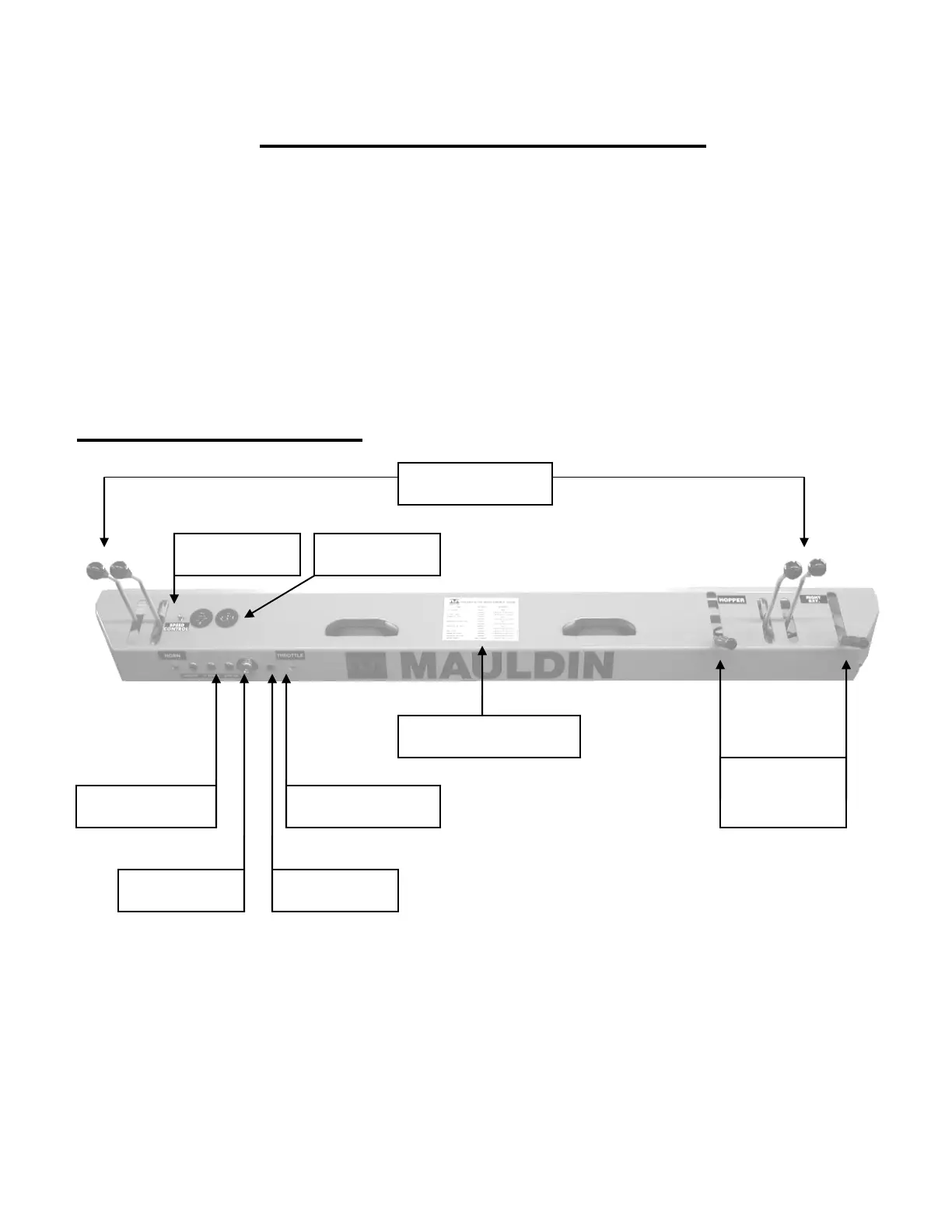

The paver controls for the 690-F consist of two operators stations. The photograph below will
introduce the control panels as well as familiarize you with the terminology associated with them.
You will want to refer back to this page as you read through the manual.
MAIN CONTROL PANEL
Ignition Switch Neutral Light
High Range Gauges
Engine Throttle Engine Lights
Steering Handles
Maintenance Decal
Right Side
Hopper &
Extension
