Calder Brothers Corporation Page 7
Model: 690G Gravity Feed Paver 690F Operations Manual Rev 1.1
MATERIAL FEED OPERATION
The 690-F allows you to configure the auger operation of the paver for both an Automatic mode
and a Manual mode. Use the automatic setting whenever possible to increase the useful life of
the feed augers, and to maintain a more consistent “Head of Material” in front of the screed. In
either mode the lower selector switch can be set to “IN” for reverse material flow.
SETUP Each side of the paver must be set independently.
AUTOMATIC AUGER FEED OPERATION

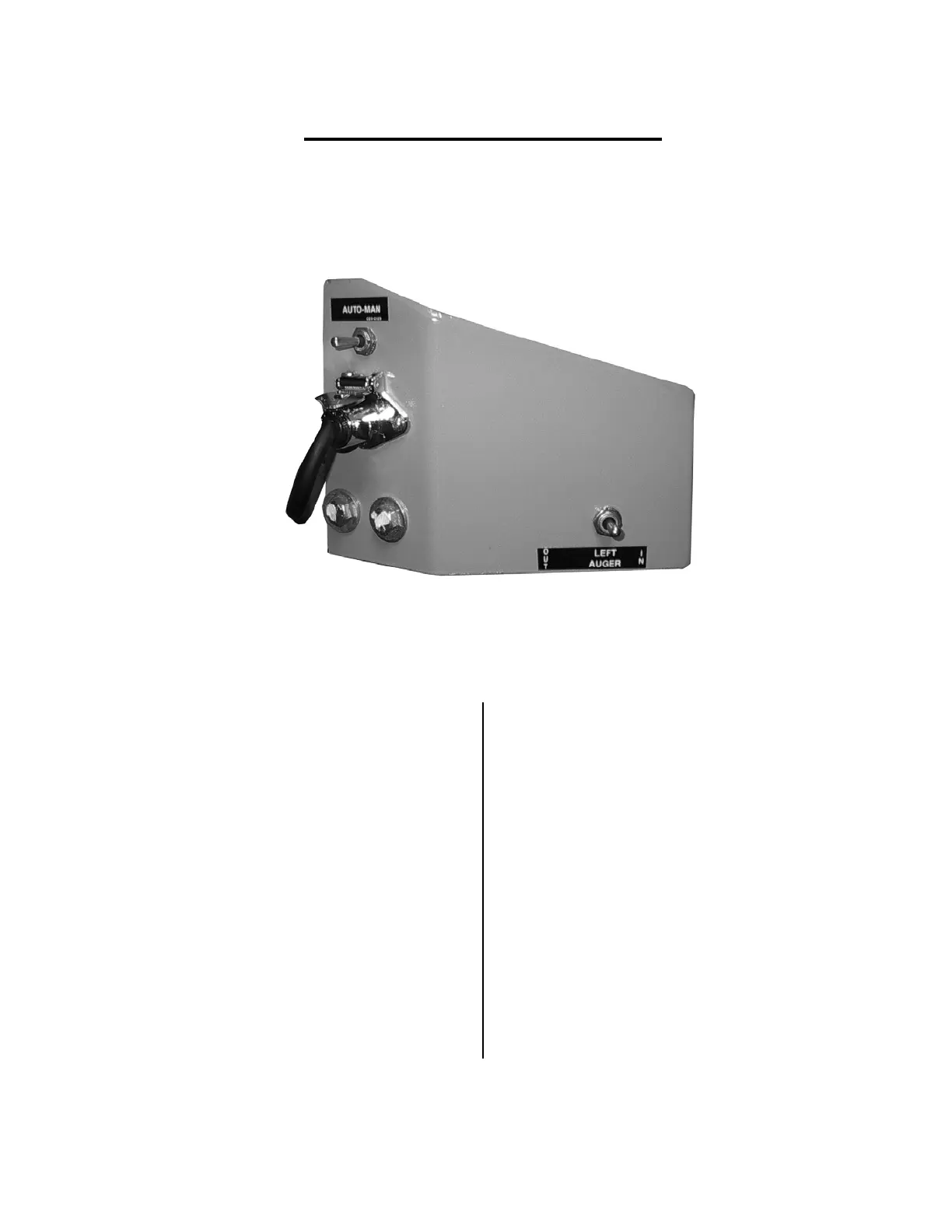

1.0 Go to the LH operators station
2.0 Locate the switch labeled:
“AUTO – MAN”
3.0 Set the switch to “AUTO”
4.0 Locate the switch labeled:
“OUT – LEFT AUGER – IN”
5.0 Set the switch to the “OUT”
6.0 Adjust height of switch by end gate to
control size of the head of material
MANUAL AUGER FEED OPERATION
1.0 Go to the LH operators station
2.0 Locate the switch labeled:
“AUTO – MAN”
3.0 Set the switch to “MAN”
4.0 Locate the switch labeled:
“OUT – LEFT AUGER – IN”
5.0 Set the switch to the “OUT”
6.0 Change this switch from the “LEFT
AUGER” position to the “OUT” and back
to the “LEFT AUGER” position, to
operate.
