Maverick MSC-30BR-WP User Manual

7
7
Always disconnect the battery from the speed controller after driving.
Never connect the speed controller incorrectly or with reversed polarity.
Wrong connection or reversed polarity will damage the speed controller.
Please use an optional capacitor with the motor for good frequency reception.
Do not use a motor under 12T when using 2S Lipo or 6 sells NiMH (Example: 11T,10T, 9T and lower turn motors),
Using a lower turn motor may damage the speed controller. (Although your motor may be in the safe range,
your ESC may go into overheat protection mode due to your choice of gearing or track conditions (o󰀨-road, high
traction, etc.))
Do not use a motor under 18T when using 3S Lipo or 9 sells NiMH (Example: 17T,16T, 15T and lower turn
motors), Using a lower turn motor may damage the speed controller. (Although your motor may be in the safe
range, your ESC may go into overheat protection mode due to your choice of gearing or track conditions (o󰀨-road,
high traction, etc.))
After running in water, dry o󰀨 any excess water from ESC and connectors.
During and after running, your speed controller will become hot. Do not touch the heatsink your with bare hands
otherwise, they will get burned.
The speed control has 2 types of battery modes to choose from depending on which type of battery you use
(NiMH and LiPo). Setup for the proper battery is needed. If you do not setup your speed control correctly, your
battery may explode, swell, smoke, or become useless.
Caution
Failure to follow these instructions can cause injury to yourself or others. You might also
cause property damage or damage your kit.

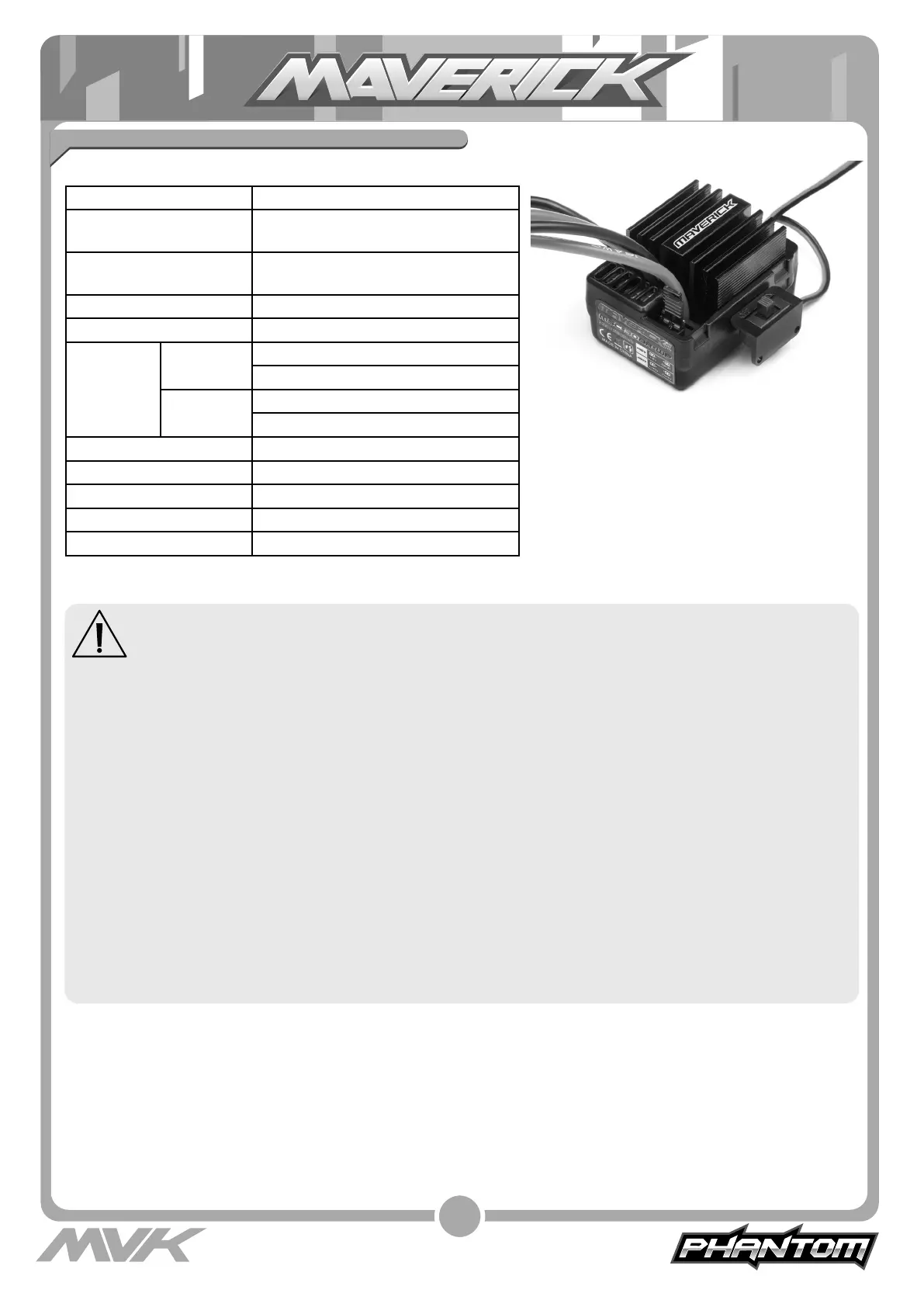

Electronic Speed Control Setup
MSC-30BR-WP Features:
Model MSC-30BR-WP
FWD Continuous / Burst
Current
40A / 180A
REV Continuous / Burst
Current
20A / 90A
Resistance FWD: 0.002 Ohm; REV: 0.004 Ohm;
Application 1/10 scale On-Road and O󰀨-Road
Motor Limit 2S LiPo /
6 cell NiMh
540 or 550 size motor ≥ 12T
RPM < 30000 @7.2V
3S LiPo /
9 cell NiMh
540 or 550 size motor ≥ 18T
RPM < 20000 @7.2V
Battery 5-9 cells NiMh or 2-3S LiPo
Built-in BEC 6V/2A
PWM Frequency 1KHz
Dimension 46.5x34x28.5mm
Weight 65g

Maverick MSC-30BR-WP Specifications

General

Brand	Maverick
Model	MSC-30BR-WP
Category	Controller
Language	English
