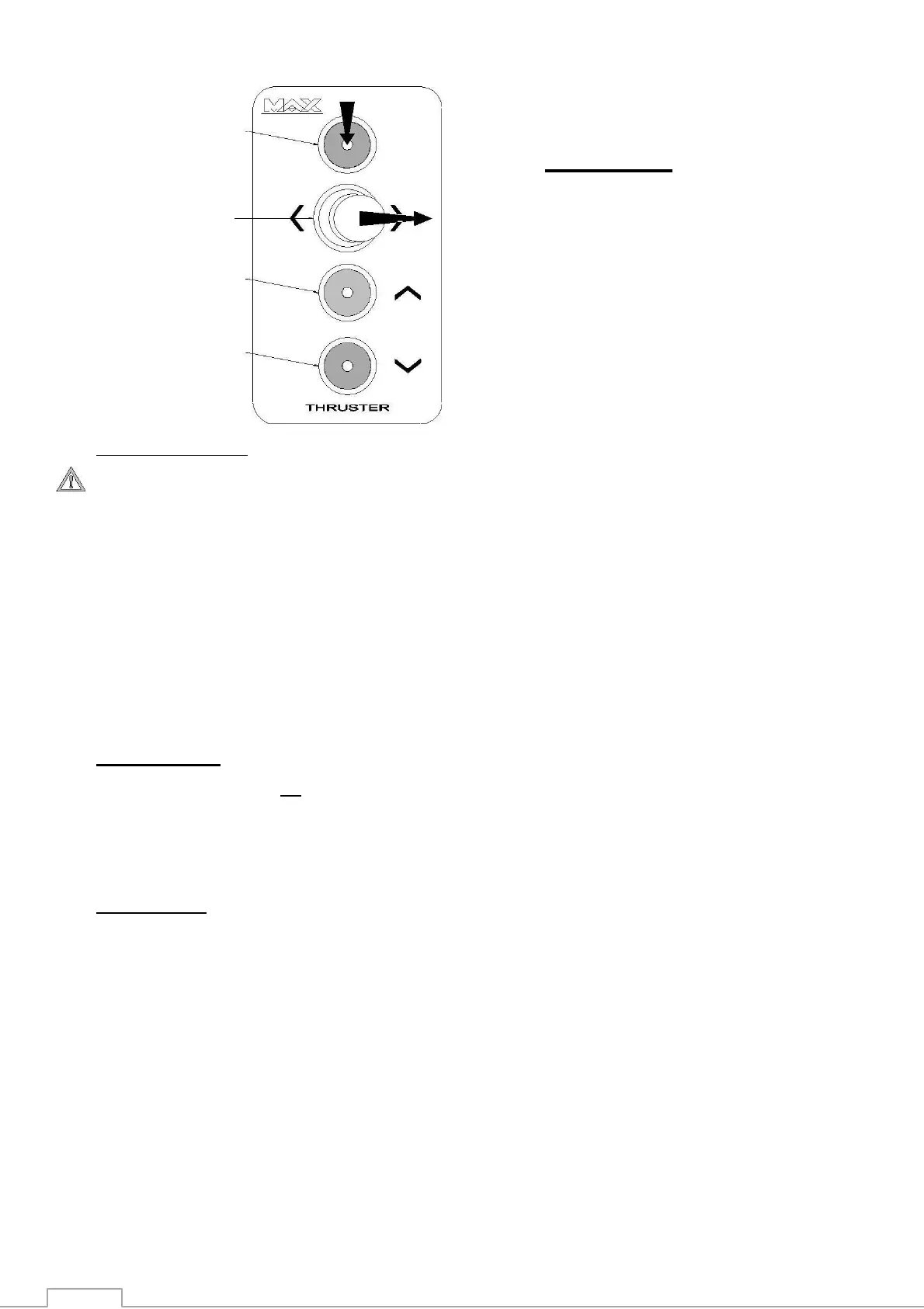

4.4 CONTROL PANEL AND THRUSTER CONTROL BOX FUNCTIONS AND MODES OF OPERATION
"On/Off" Push-button:
Black with Green
"On" LED.
Joystick
"Up" Push-button:
Green with Green
"Up" LED.
"Down" Push-button:
Red with Green
"Down" LED.
POW ER
Control Panel:
To switch "ON" or "OFF" push down
the black push-button, while pushing
joystick to the right for one second.
To "Lower" or "Raise" press and hold
the "Down" or "Up" pushbutton for
one second until buzzer beeps once.
The thruster will then lower or raise
automatically and buzzer will double
beep once fully down or fully up position
is reached.
General Remarks:
Before connecting power to the thruster control card or when raising or lowering the
thruster in whatever mode of operation, make sure that all persons are clear of thruster unit,
to avoid any human injuries.
Before system can be used in normal operation mode, the system needs to be set-up following
the procedures described in “Manual Mode”, “Automatic Set-up Mode” and “Installation Mode”.
If power to control card was removed with system in any other mode than Normal Operation
Mode, the system will automatically go into Manual Mode when power is restored to control
card. If thruster was not fully up, the unit will automatically raise and switch off as soon as
power to control card is restored. The system can then be switched on normally and will be
in Manual mode.
A. Manual Mode:
A.1
With system switched off, push and hold down “On/Off”, “Up” and “Down” push buttons
simultaneously for a period of 3 seconds. The system will now go into Manual Mode with “On”,
“Up” and “Down” LED’s all flashing. Except the “Up” or “down” leds which are lit constantly
according to the position of the thruster (Fully Up, or Fully Down).
A.2
With the system in Manual Mode the thruster can now be lowered and raised by pushing and
holding down the “Up” or “Down” pushbuttons. As soon as pushbutton is released the unit will
stop.
A.3
Buzzer will double beep as soon as down or up position is reached. If the buzzer double beeps
before the thruster reaches fully mechanical up or down position, there must be another
mechanical problem
A.4
To switch On/Off the system while in Manual Mode, push up button until the thruster reaches
the maximum up position, then press the On/Off button and push the joystick to the right
position for one second.
