3. SPECIFICATIONS AND TECHNICAL DATA

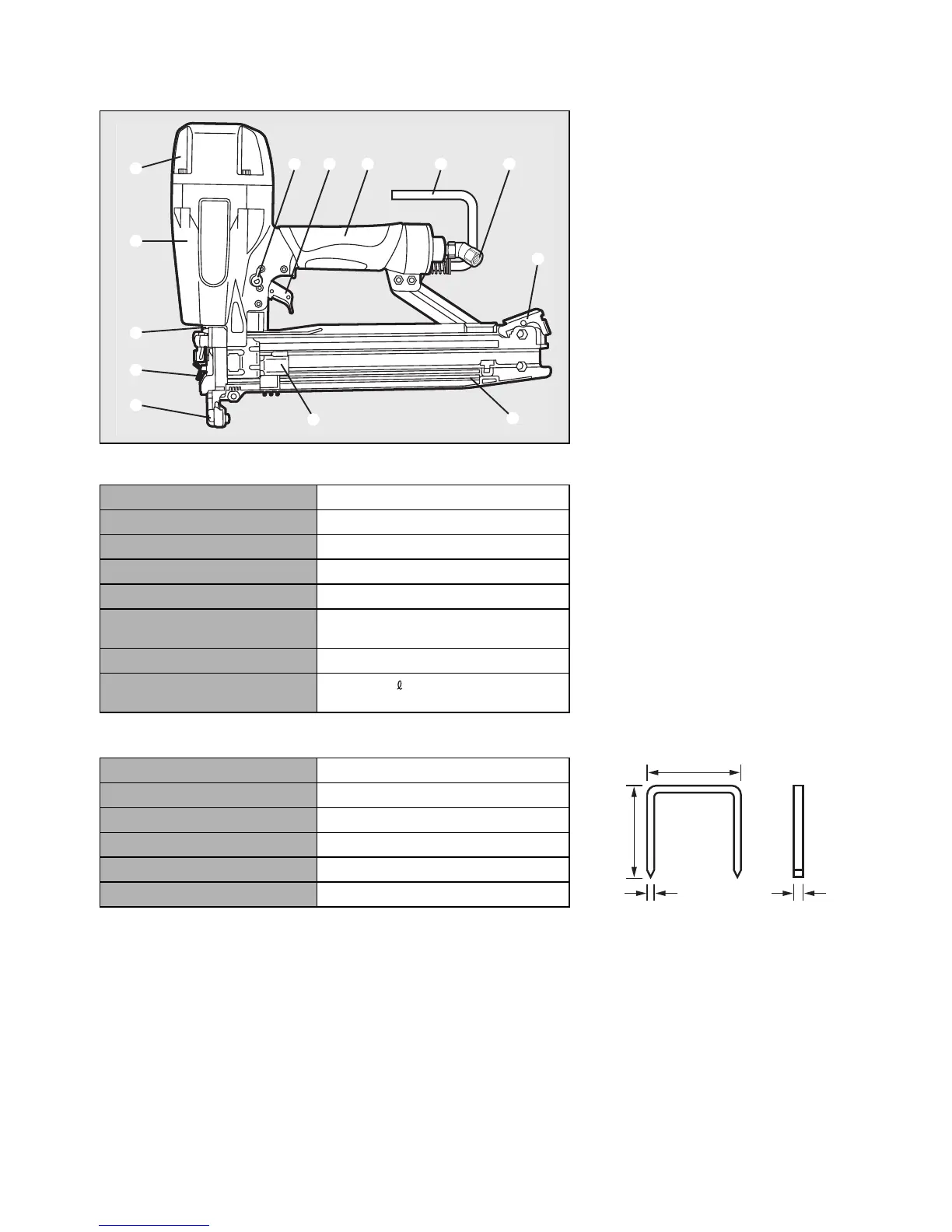

1. NAME OF PARTS
2. TOOL SPECIFICATIONS
3. FASTENER SPECIFICATIONS
1 Frame
2 Cylinder Cap
3 Contact Arm
4 Nose
5 Magazine
6 Trigger
7 Grip
8 Trigger Lock Dial
9 Staple Removal Lever
0 Pusher
a Click Lever
b Rafter Hook
c Swivel Joint
PRODUCT NO. TA551B/16-11
HEIGHT 11-3/8″ (288.5 mm)
WIDTH 3-1/4″ (84 mm)
LENGTH 14″ (356 mm)
WEIGHT 5.5 lbs. (2.5 kg)
RECOMMENDED
OPERATING PRESSURE
70 to 100 p.s.i.
(5 to 7 bar)
LOADING CAPACITY 157 Staples
AIR CONSUMPTION 0.039 ft
3
(1.1 ) at 100 p.s.i. (7 bar)
operating pressure
PRODUCT NO. TA551B/16-11
CROWN 7/16″ (11 mm)
LENGTH 1″ to 2″ (25 to 51 mm)
WIDTH 0.062″ (1.57 mm)
THICKNESS 0.055″ (1.40 mm)
GAUGE 16
9
687
2
1
4
3
5
0
b c
a
CROWN
WIDTH
LENGTH
THICKNESS
